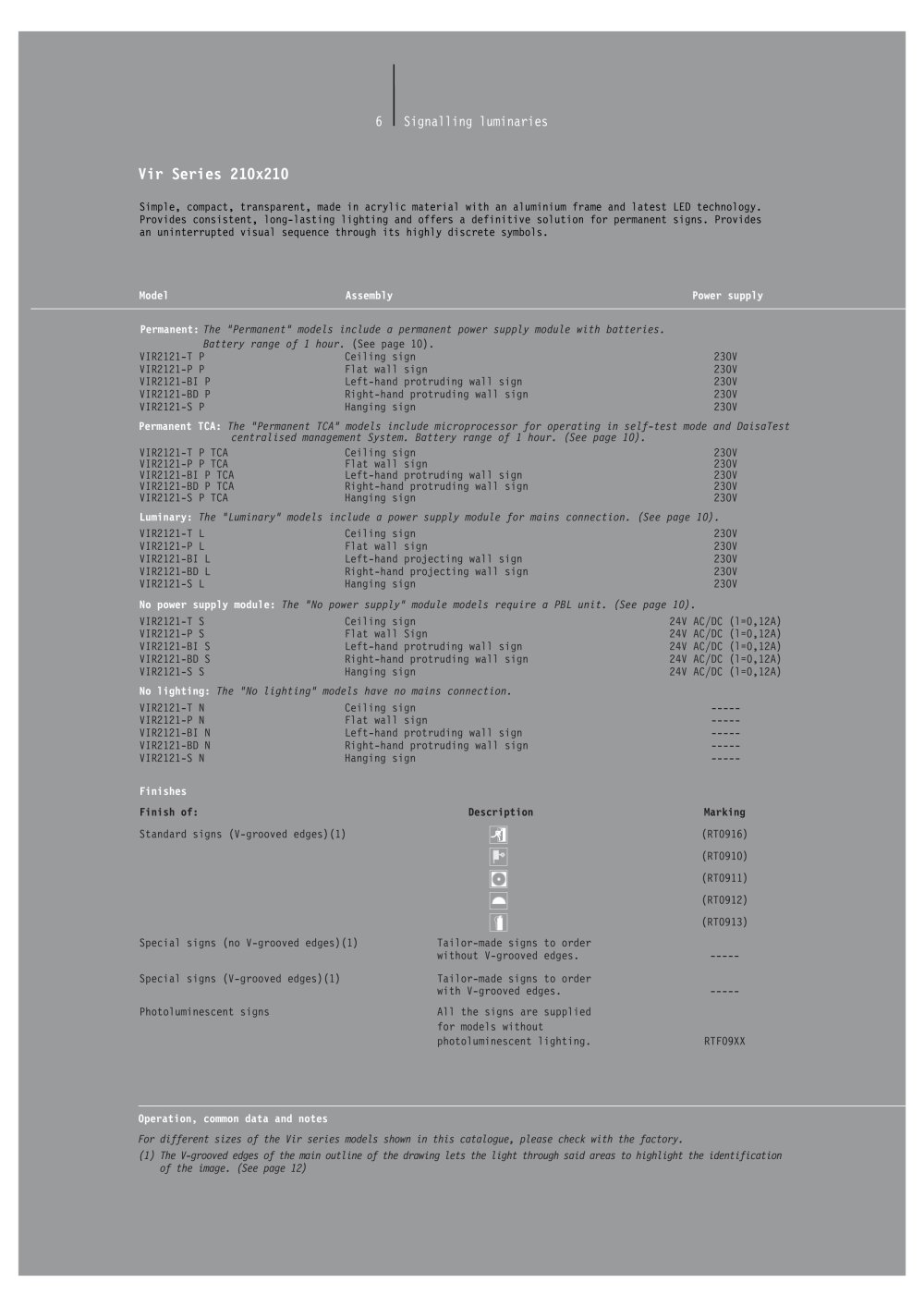

| | | Signalling luminaries | | |
| | | |
| | | Simple, compact, transparent, made in acrylic material with an aluminium frame and latest LED technology. Provides consistent, long-lasting lighting and offers a definitive solution for permanent design signs. Provides an uninterrupted visual sequence through its highly discrete symbols. | | |
| | | |
| | | Assembly | | |
| | | |
| | | Permanent: The "Permanent" models include a permanent power supply module with batteries. Battery range of 1 hour. (See page 10). | | |
| | | |
| | | VIR2121-T P VIR2121-P P VIR2121-BI P VIR2121-BD P VIR2121-S P | | Left-hand protruding wall sign Right-hand protruding wall sign Hanging sign | | 230V 230V 230V 230V 230V | | |
| | | |
| | | |
| | | The "Permanent TCA" models include microprocessor for operating in self-test mode and DaisaTest centralised management System. Battery range of 1 hour. (See page 10). | | |
| | | |
| | | VIR2121-T P TCA VIR2121-P P TCA VIR2121-BI P TCA VIR2121-BD P TCA VIR2121-S P TCA | | |
| | | Ceiling sign Flat wall sign Left-hand protruding wall sign Right-hand protruding wall sign Hanging sign | | 230V 230V 230V 230V 230V | | |
| | | |
| | | |
| | | Luminary: The "Luminary" models include a power supply module for mains connection. (See page 10). VIR2121-T L Ceiling sign 230V VIR2121-P L Flat wall sign 230V VIR2121-BI L Left-hand projecting wall sign 230V VIR2121-BD L Right-hand projecting wall sign 230V VIR2121-S L Hanging sign 230V | | |
| | | |
| | | The "No power supply" module models require a PBL unit. (See page 10). | | |
| | | No power supply module VIR2121-T S VIR2121-P S VIR2121-BI S VIR2121-BD S VIR2121-S S | | |
| | | |
| | | 24V AC/DC (l=0,12A) 24V AC/DC (l=0,12A) 24V AC/DC (l=0,12A) 24V AC/DC (l=0,12A) 24V AC/DC (l=0,12A) | | |
| | | Ceiling sign Flat wall Sign Left-hand protruding wall sign Right-hand protruding wall sign Hanging sign | | |
| | | |
| | | |
| | | No lighting: The "No lighting" models have no mains connection. VIR2121-T N Ceiling sign VIR2121-P N Flat wall sign VIR2121-BI N Left-hand protruding wall sign VIR2121-BD N Right-hand protruding wall sign VIR2121-S N Hanging sign | | |
| | | |
| | | Finish of: Standard signs (V-grooved edges)(1) | | Description | | Marking (RT0916) (RT0910) (RT0911) (RT0912) (RT0913) | | |
| | | |
| | | |
| | | |
| | | Special signs (no V-grooved edges)(1) Special signs (V-grooved edges)(1) Photoluminescent signs | | |
| | | Tailor-made signs to order without V-grooved edges. Tailor-made signs to order with V-grooved edges. All the signs are supplied for models without photoluminescent lighting. | | |
| | | |
| | | RTF09XX | | |
| | | |
| | | |
| | | For different sizes of the Vir series models shown in this catalogue, please check with the factory. (1) The V-grooved edges of the main outline of the drawing lets the luminaire through said areas to highlight the identification of the image. (See page 12) | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
