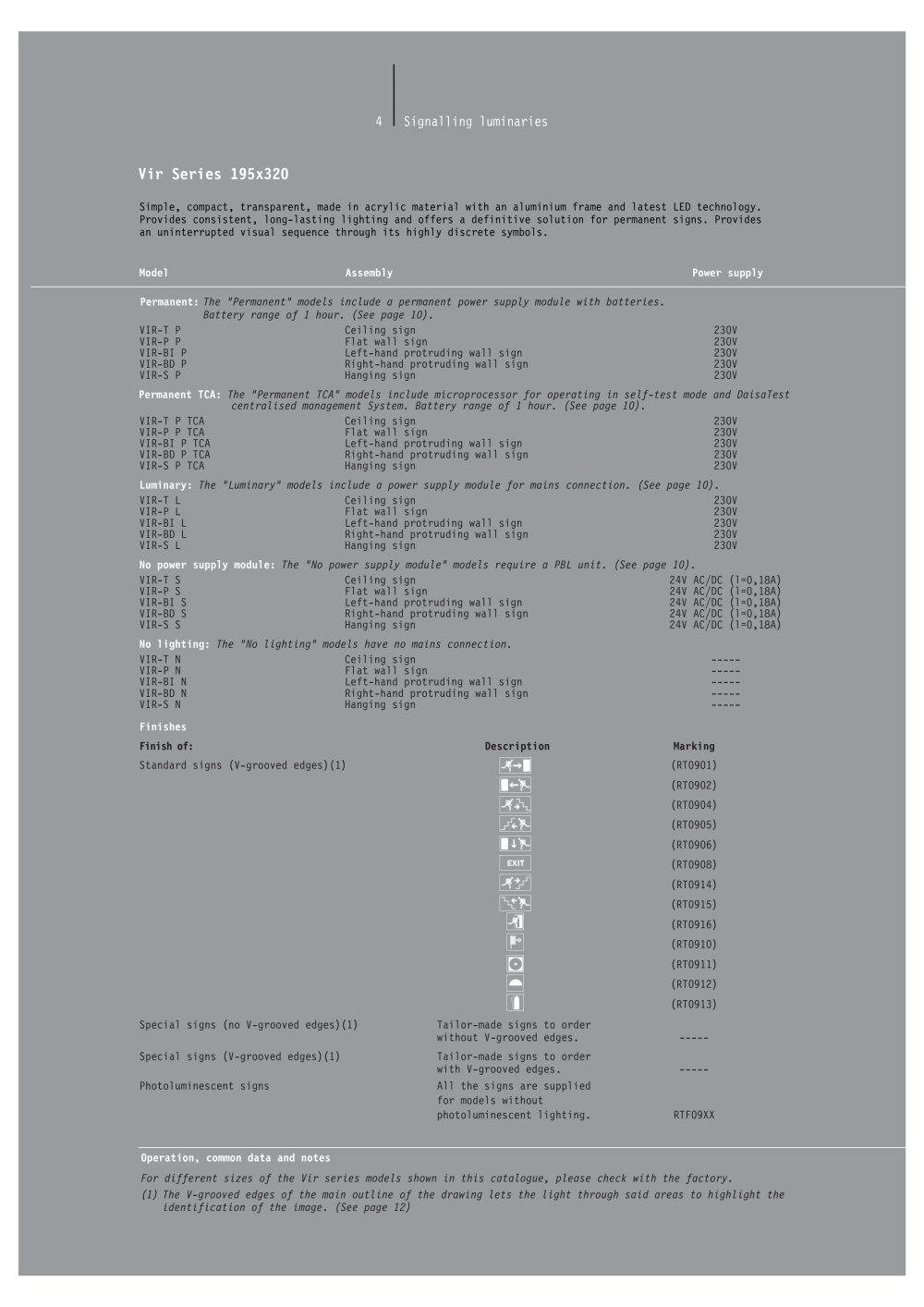

| | | 4 | | Signalling luminaries | | |
| | | |
| | | |
| | | Simple, compact, transparent, made in acrylic material with an aluminium frame and latest LED technology. Provides consistent, long-lasting lighting and offers a definitive solution for permanent architectural signs. Provides an uninterrupted visual sequence through its highly discrete symbols. | | |
| | | |
| | | Model | | |
| | | |
| | | Permanent: The "Permanent" models include a permanent power supply module with batteries. Battery range of 1 hour. (See page 10). | | |
| | | V | | 230V 230V 230V 230V 230V | | |
| | | |
| | | |
| | | VIR-P P VIR-BI P VIR-BD P VIR-S P | | Flat wall sign Left-hand protruding wall sign Right-hand protruding wall sign Hanging sign | | |
| | | |
| | | |
| | | The "Permanent TCA" models include microprocessor for operating in self-test mode and DaisaTest centralised management System. Battery range of 1 hour. (See page 10). Ceiling sign 230V Flat wall sign 230V Left-hand protruding wall sign 230V Right-hand protruding wall sign 230V Hanging sign 230V | | |
| | | VIR-T P TCA VIR-P P TCA VIR-BI P TCA VIR-BD P TCA VIR-S P TCA | | |
| | | |
| | | |
| | | Luminary: The "Luminary" models include a power supply module for mains connection. (See page 10). VIR-T L Ceiling sign 230V VIR-P L Flat wall sign 230V VIR-BI L Left-hand protruding wall sign 230V VIR-BD L Right-hand protruding wall sign 230V VIR-S L Hanging sign 230V | | |
| | | |
| | | The "No power supply module" models require a PBL unit. (See page 10). | | |
| | | No power supply module VIR-T S VIR-P S VIR-BI S VIR-BD S VIR-S S | | |
| | | |
| | | 24V AC/DC (l=0,18A) 24V AC/DC (l=0,18A) 24V AC/DC (l=0,18A) 24V AC/DC (l=0,18A) 24V AC/DC (l=0,18A) | | |
| | | Ceiling sign Flat wall sign Left-hand protruding wall sign Right-hand protruding wall sign Hanging sign | | |
| | | |
| | | |
| | | |
| | | No lighting: The "No lighting" models have no mains connection. VIR-T N Ceiling sign VIR-P N Flat wall sign VIR-BI N Left-hand protruding wall sign VIR-BD N Right-hand protruding wall sign VIR-S N Hanging sign | | |
| | | |
| | | Finish of: Standard signs (V-grooved edges)(1) | | Description | | Marking (RT0901) (RT0902) (RT0904) (RT0905) (RT0906) (RT0908) (RT0914) (RT0915) (RT0916) (RT0910) (RT0911) (RT0912) (RT0913) RTF09XX | | |
| | | |
| | | |
| | | Special signs (no V-grooved edges)(1) Special signs (V-grooved edges)(1) Photoluminescent signs | | |
| | | Tailor-made signs to order without V-grooved edges. Tailor-made signs to order with V-grooved edges. All the signs are supplied for models without photoluminescent lighting. | | |
| | | |
| | | |
| | | |
| | | Operation, common data and notes For different sizes of the Vir series models shown in this catalogue, please check with the factory. (1) The V-grooved edges of the main outline of the drawing lets the luminaire through said areas to highlight the | | |
| | | |
| | | identification of the image. (See page 12) | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
