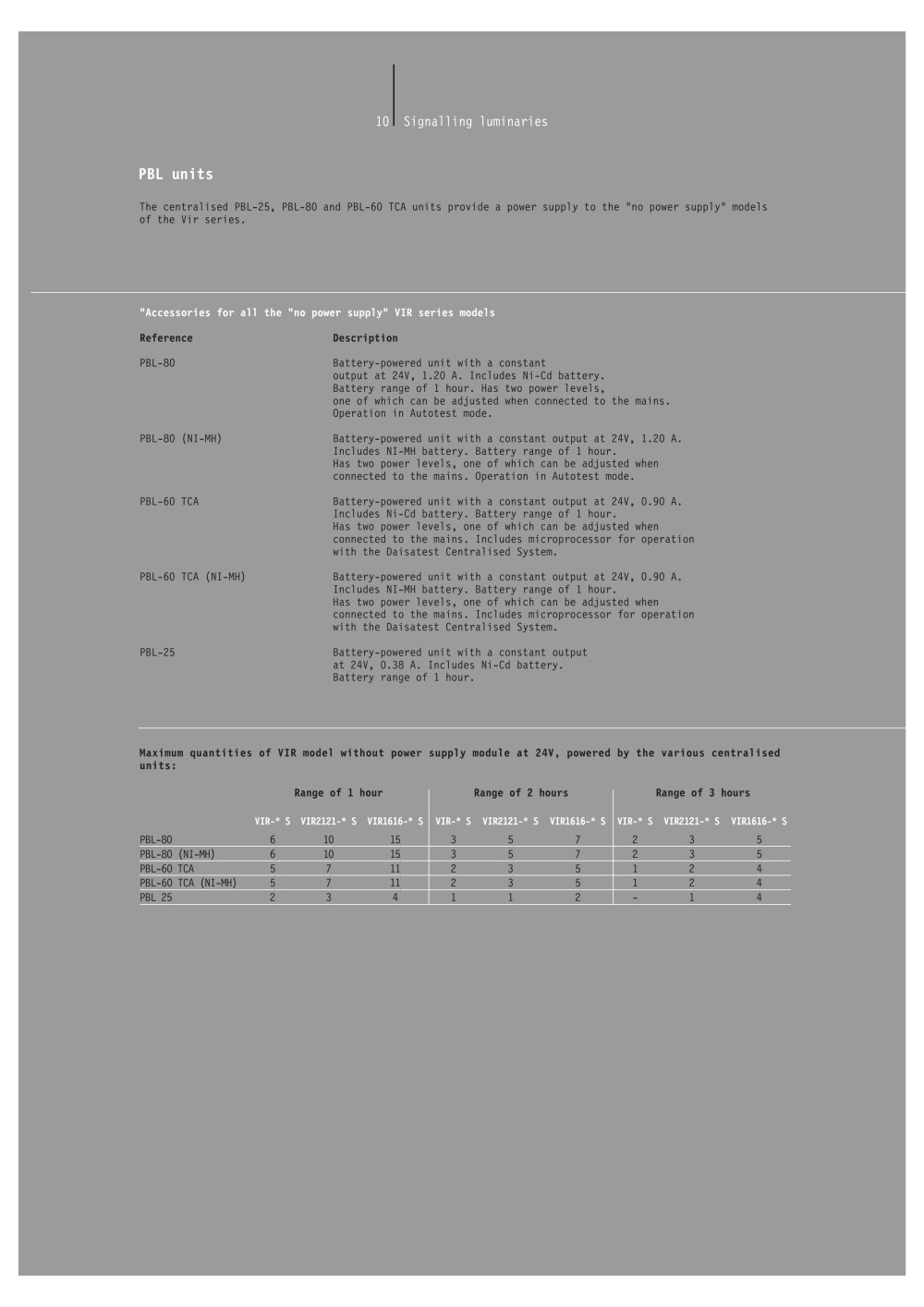

10 Signalling luminaries

PBL units

The centralised PBL-25, PBL-80 and PBL-60 TCA units provide a power supply to the “no power supply” modelsof the Vir series. “Accessories for all the “no power supply” VIR series models ReferenceDescription PBL-80Battery-powered unit with a constantoutput at 24V, 1.20 A. Includes Ni-Cd battery. Battery range of 1 hour. Has two power levels, one of which can be adjusted when connected to the mains. Operation in Autotest mode.PBL-80 (NI-MH)Battery-powered unit with a constant output at 24V, 1.20 A.Includes NI-MH battery. Battery range of 1 hour.Has two power levels, one of which can be adjusted when connected to the mains. Operation in Autotest mode.PBL-60 TCABattery-powered unit with a constant output at 24V, 0.90 A.Includes Ni-Cd battery. Battery range of 1 hour. Has two power levels, one of which can be adjusted when connected to the mains. Includes microprocessor for operation with the Daisatest Centralised System.PBL-60 TCA (NI-MH)Battery-powered unit with a constant output at 24V, 0.90 A.Includes NI-MH battery. Battery range of 1 hour.Has two power levels, one of which can be adjusted whenconnected to the mains. Includes microprocessor for operation with the Daisatest Centralised System.PBL-25Battery-powered unit with a constant outputat 24V, 0.38 A. Includes Ni-Cd battery. Battery range of 1 hour. Maximum quantities of VIR model without power supply module at 24V, powered by the various centralisedunits:Range of 1 hourRange of 2 hoursRange of 3 hours

VIR-* SVIR2121-* SVIR1616-* SVIR-* SVIR2121-* SVIR1616-* SVIR-* SVIR2121-* SVIR1616-* S PBL-80 6 10 15 3 5 7 2 3 5 PBL-80 (NI-MH) 6 10 15 3 5 7 2 3 5 PBL-60 TCA 5 7 11 2 3 5 1 2 4 PBL-60 TCA (NI-MH) 5 7 11 2 3 5 1 2 4 PBL 25 2 3 4 1 1 2 - 1 4
