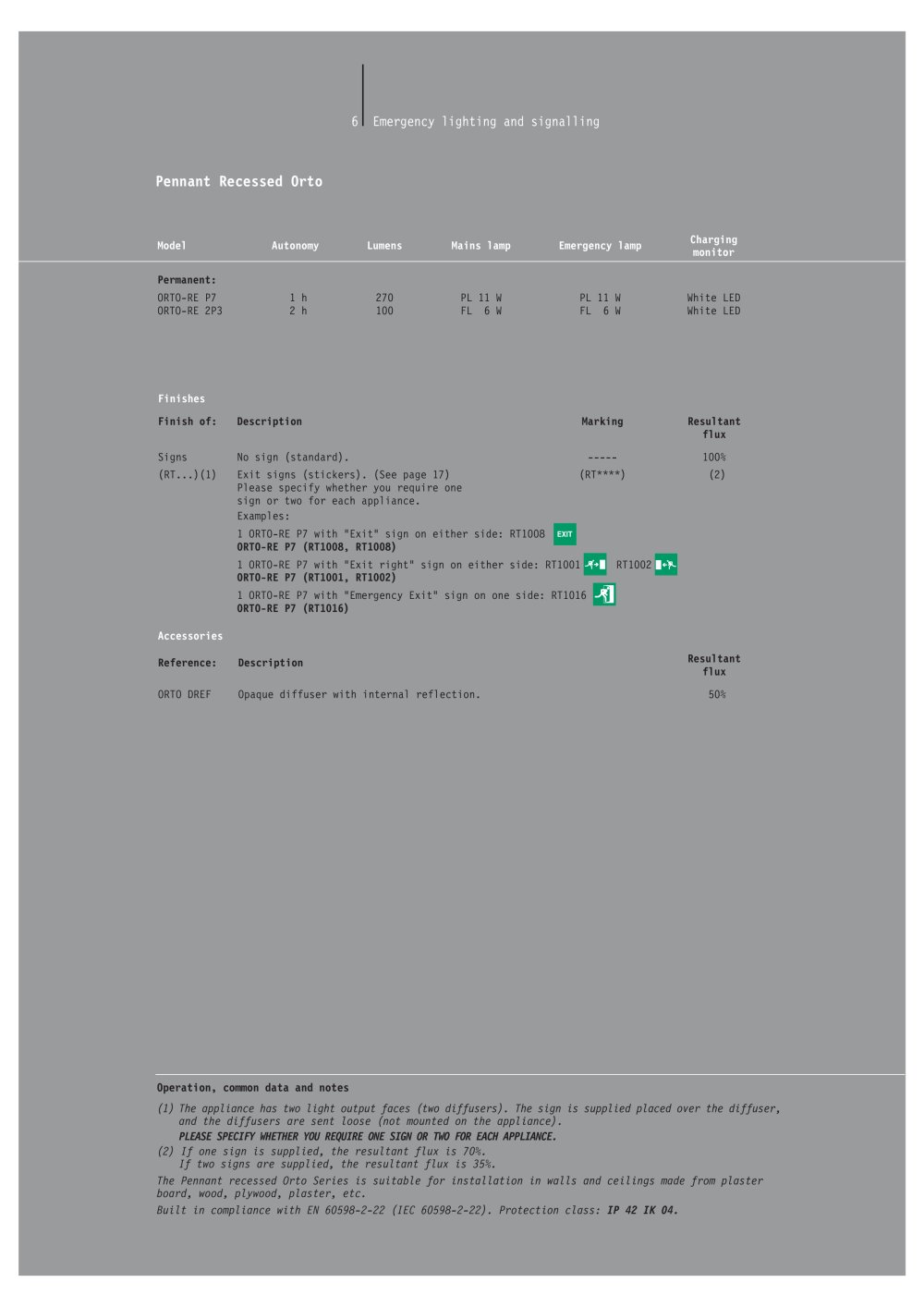

6 Emergency lighting and signalling

Pennant Recessed Orto

ModelAutonomy LumensMains lampEmergency lampChargingmonitor Permanent: ORTO-RE P71 h270PL 11 WPL 11 WWhite LEDORTO-RE 2P32 h100FL 6 WFL 6 WWhite LED Finishes Finish of:Description MarkingResultantflux Architectural signs No sign (standard).-----100%(RT...)(1)Exit signs (stickers). (See page 17)(RT****) (2)Please specify whether you require onesign or two for each appliance.Examples:1 ORTO-RE P7 with “Exit” sign on either side: RT1008 ORTO-RE P7 (RT1008, RT1008) 1 ORTO-RE P7 with “Exit right” sign on either side: RT1001 RT1002 ORTO-RE P7 (RT1001, RT1002) 1 ORTO-RE P7 with “Emergency Exit” sign on one side: RT1016 ORTO-RE P7 (RT1016) Accessories Reference:DescriptionResultantflux ORTO DREFOpaque diffuser with internal reflection. 50%

Operation, common data and notes (1)The appliance has two luminaire output faces (two modern diffusers). The sign is supplied placed over the diffuser,and the diffusers are sent loose (not mounted on the appliance). PLEASE SPECIFY WHETHER YOU REQUIRE ONE SIGN OR TWO FOR EACH APPLIANCE. (2) If one sign is supplied, the resultant flux is 70%.If two signs are supplied, the resultant flux is 35%.The Pennant recessed Orto Series is suitable for installation in walls and building ceilings made from plasterboard, wood, plywood, plaster, etc.Built in compliance with EN 60598-2-22 (IEC 60598-2-22). Protection class: IP 42 IK 04.
