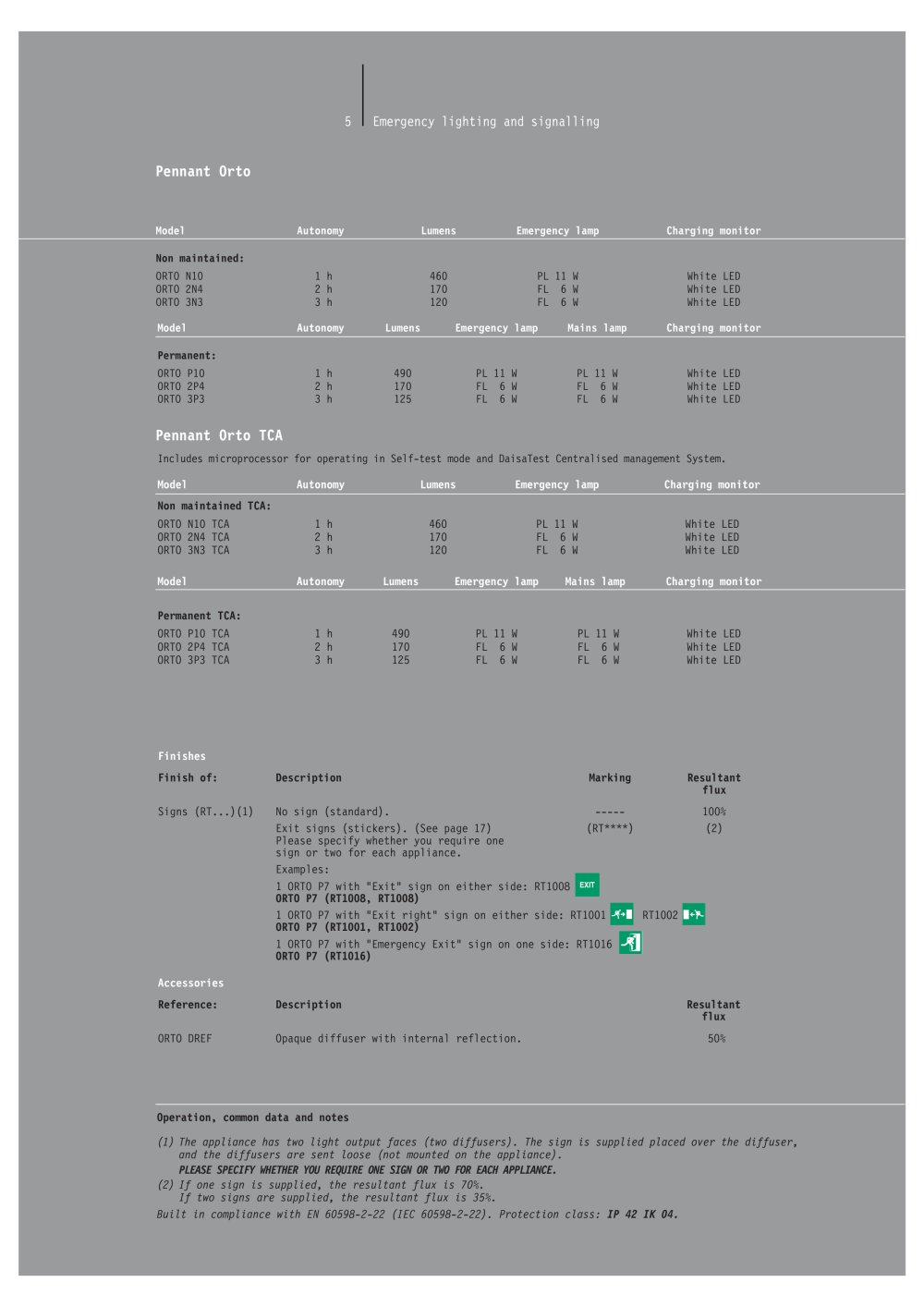

5 Emergency lighting and signalling

Pennant Orto

ModelAutonomy LumensEmergency lampCharging monitor Non maintained: ORTO N101 h460PL 11 WWhite LEDORTO 2N42 h170FL 6 WWhite LEDORTO 3N33 h120FL 6 WWhite LED ModelAutonomy LumensEmergency lampMains lampCharging monitor Permanent: ORTO P101 h490PL 11 WPL 11 WWhite LEDORTO 2P42 h170FL 6 WFL 6 WWhite LED ORTO 3P33 h125FL 6 WFL 6 WWhite LEDIncludes microprocessor for operating in Self-test mode and DaisaTest Centralised management System.

Pennant Orto TCA

Model Autonomy LumensEmergency lampCharging monitor Non maintained TCA: ORTO N10 TCA1 h460PL 11 WWhite LEDORTO 2N4 TCA2 h170FL 6 WWhite LEDORTO 3N3 TCA3 h120FL 6 WWhite LED Model Autonomy LumensEmergency lampMains contemporary lamp Charging monitor Permanent TCA: ORTO P10 TCA1 h490PL 11 WPL 11 WWhite LEDORTO 2P4 TCA2 h170FL 6 WFL 6 WWhite LEDORTO 3P3 TCA3 h125FL 6 WFL 6 WWhite LED Finishes Finish of:Description MarkingResultantflux Architectural signs (RT...)(1)No sign (standard).-----100%Exit signs (stickers). (See page 17)(RT****)(2)Please specify whether you require onesign or two for each appliance.Examples:1 ORTO P7 with “Exit” sign on either side: RT1008 ORTO P7 (RT1008, RT1008) 1 ORTO P7 with “Exit right” sign on either side: RT1001 RT1002 ORTO P7 (RT1001, RT1002) 1 ORTO P7 with “Emergency Exit” sign on one side: RT1016 ORTO P7 (RT1016) Accessories Reference:DescriptionResultantflux ORTO DREFOpaque diffuser with internal reflection. 50%
Operation, common data and notes (1)The appliance has two luminaire output faces (two modern diffusers). The sign is supplied placed over the diffuser,and the diffusers are sent loose (not mounted on the appliance). PLEASE SPECIFY WHETHER YOU REQUIRE ONE SIGN OR TWO FOR EACH APPLIANCE. (2)If one sign is supplied, the resultant flux is 70%.If two signs are supplied, the resultant flux is 35%.Built in compliance with EN 60598-2-22 (IEC 60598-2-22). Protection class: IP 42 IK 04.
