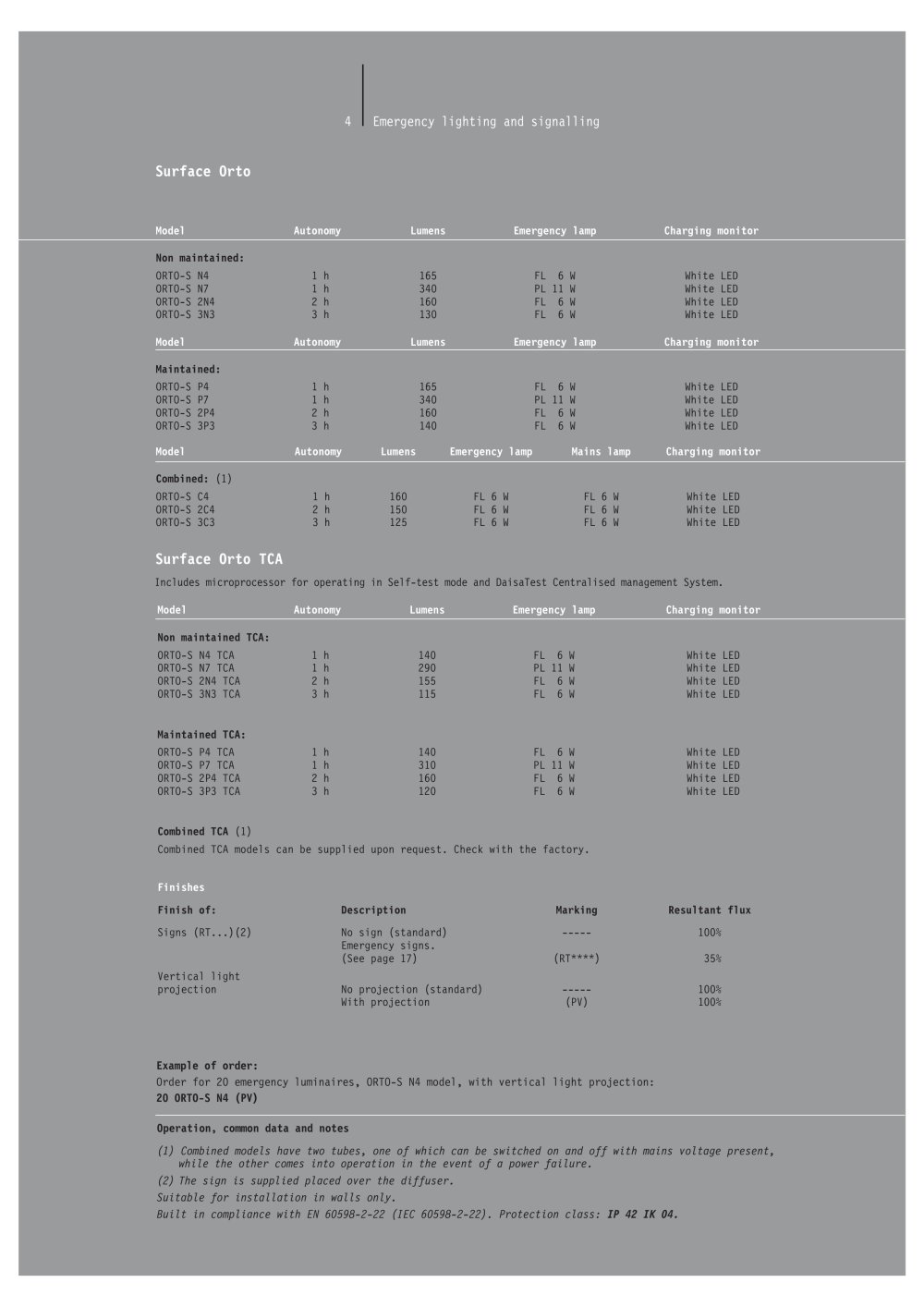

4 Emergency lighting and signalling

Surface Orto

ModelAutonomy LumensEmergency lampCharging monitor Non maintained: ORTO-S N41 h165FL 6 WWhite LEDORTO-S N71 h340PL 11 WWhite LED ORTO-S 2N42 h160FL 6 WWhite LED ORTO-S 3N33 h130FL 6 WWhite LED ModelAutonomy LumensEmergency lampCharging monitor Maintained: ORTO-S P41 h165FL 6 WWhite LEDORTO-S P71 h340PL 11 WWhite LEDORTO-S 2P42 h160FL 6 WWhite LEDORTO-S 3P33 h140FL 6 WWhite LED ModelAutonomy LumensEmergency lampMains lampCharging monitor Combined: (1)ORTO-S C41 h160FL 6 WFL 6 WWhite LEDORTO-S 2C42 h150FL 6 WFL 6 WWhite LED ORTO-S 3C33 h125FL 6 WFL 6 WWhite LED

Surface Orto TCA

ModelAutonomy LumensEmergency lampCharging monitor Non maintained TCA: ORTO-S N4 TCA1 h140FL 6 WWhite LEDORTO-S N7 TCA1 h290PL 11 WWhite LED ORTO-S 2N4 TCA2 h155FL 6 WWhite LED ORTO-S 3N3 TCA3 h115FL 6 WWhite LED Maintained TCA: ORTO-S P4 TCA1 h140FL 6 WWhite LEDORTO-S P7 TCA1 h310PL 11 WWhite LEDORTO-S 2P4 TCA2 h160FL 6 WWhite LEDORTO-S 3P3 TCA3 h120FL 6 WWhite LED Combined TCA (1)Combined TCA models can be supplied upon request. Check with the factory. Finishes Finish of:Description MarkingResultant flux Signs furniture (RT...)(2)No sign (standard)-----100%Emergency signs. (See page 17)(RT****) 35%Vertical lightprojectionNo projection (standard)-----100%With projection(PV)100% Includes microprocessor for operating in Self-test mode and DaisaTest Centralised management System.

Example of order: Order for 20 emergency luminaires, ORTO-S N4 model, with vertical luminaire projection: 20 ORTO-S N4 (PV) Operation, common data and notes (1) Combined models have two tubes, one of which can be switched on and off with mains voltage present,while the other comes into operation in the event of a power failure.(2)The sign is supplied placed over the diffuser.Suitable for installation in walls only.Built in compliance with EN 60598-2-22 (IEC 60598-2-22). Protection class: IP 42 IK 04.
