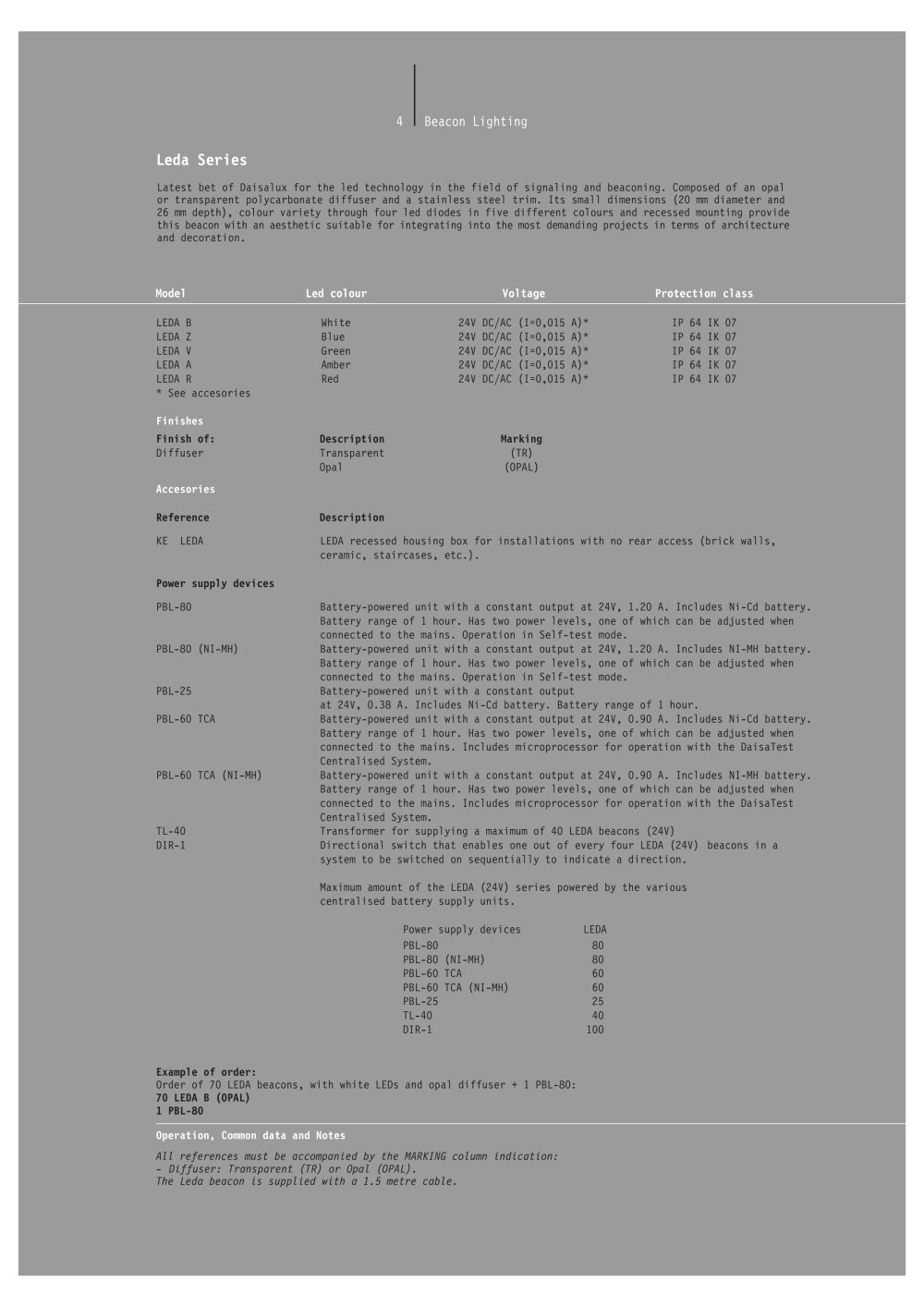

4 Beacon Lighting

Leda Series

Latest bet of Daisalux for the led technology in the field of signaling and beaconing. Composed of an opalor transparent polycarbonate diffuser and a stainless steel trim. Its small dimensions (20 mm diameter and26 mm depth), colour variety through four led diodes in five different colours and recessed mounting providethis beacon with an aesthetic suitable for integrating into the most demanding projects in terms of architectureand decoration.

ModelLed colourVoltageProtection class

LEDA BWhite24V DC/AC (I=0,015 A)*IP 64 IK 07LEDA ZBlue24V DC/AC (I=0,015 A)*IP 64 IK 07 LEDA VGreen24V DC/AC (I=0,015 A)*IP 64 IK 07LEDA AAmber24V DC/AC (I=0,015 A)*IP 64 IK 07LEDA RRed24V DC/AC (I=0,015 A)*IP 64 IK 07* See accesories Finishes Finish of:Description Marking DiffuserTransparent(TR)Opal(OPAL) Accesories ReferenceDescription KE LEDALEDA recessed housing box for installations with no rear access (brick walls,ceramic, staircases suppliers, etc.). Power supply devices PBL-80Battery-powered unit with a constant output at 24V, 1.20 A. Includes Ni-Cd battery.Battery range of 1 hour. Has two power levels, one of which can be adjusted whenconnected to the mains. Operation in Self-test mode.PBL-80 (NI-MH)Battery-powered unit with a constant output at 24V, 1.20 A. Includes NI-MH battery.Battery range of 1 hour. Has two power levels, one of which can be adjusted when connected to the mains. Operation in Self-test mode.PBL-25Battery-powered unit with a constant outputat 24V, 0.38 A. Includes Ni-Cd battery. Battery range of 1 hour.PBL-60 TCABattery-powered unit with a constant output at 24V, 0.90 A. Includes Ni-Cd battery.Battery range of 1 hour. Has two power levels, one of which can be adjusted whenconnected to the mains. Includes microprocessor for operation with the DaisaTestCentralised System.PBL-60 TCA (NI-MH)Battery-powered unit with a constant output at 24V, 0.90 A. Includes NI-MH battery.Battery range of 1 hour. Has two power levels, one of which can be adjusted whenconnected to the mains. Includes microprocessor for operation with the DaisaTest Centralised System.TL-40Transformer for supplying a maximum of 40 LEDA beacons (24V)DIR-1Directional switch that enables one out of every four LEDA (24V) beacons in asystem to be switched on sequentially to indicate a direction.Maximum amount of the LEDA (24V) series powered by the variouscentralised battery supply units.Power supply devicesLEDAPBL-80 80PBL-80 (NI-MH) 80 PBL-60 TCA 60PBL-60 TCA (NI-MH) 60PBL-25 25TL-40 40 DIR-1100 Example of order: 70 LEDA B (OPAL) 1 PBL-80 Order of 70 LEDA beacons, with white LEDs and opal diffuser + 1 PBL-80: Operation, Common data and Notes All references must be accompanied by the MARKING building column indication:-Diffuser: Transparent (TR) or Opal (OPAL).The Leda beacon is supplied with a 1.5 metre cable.
