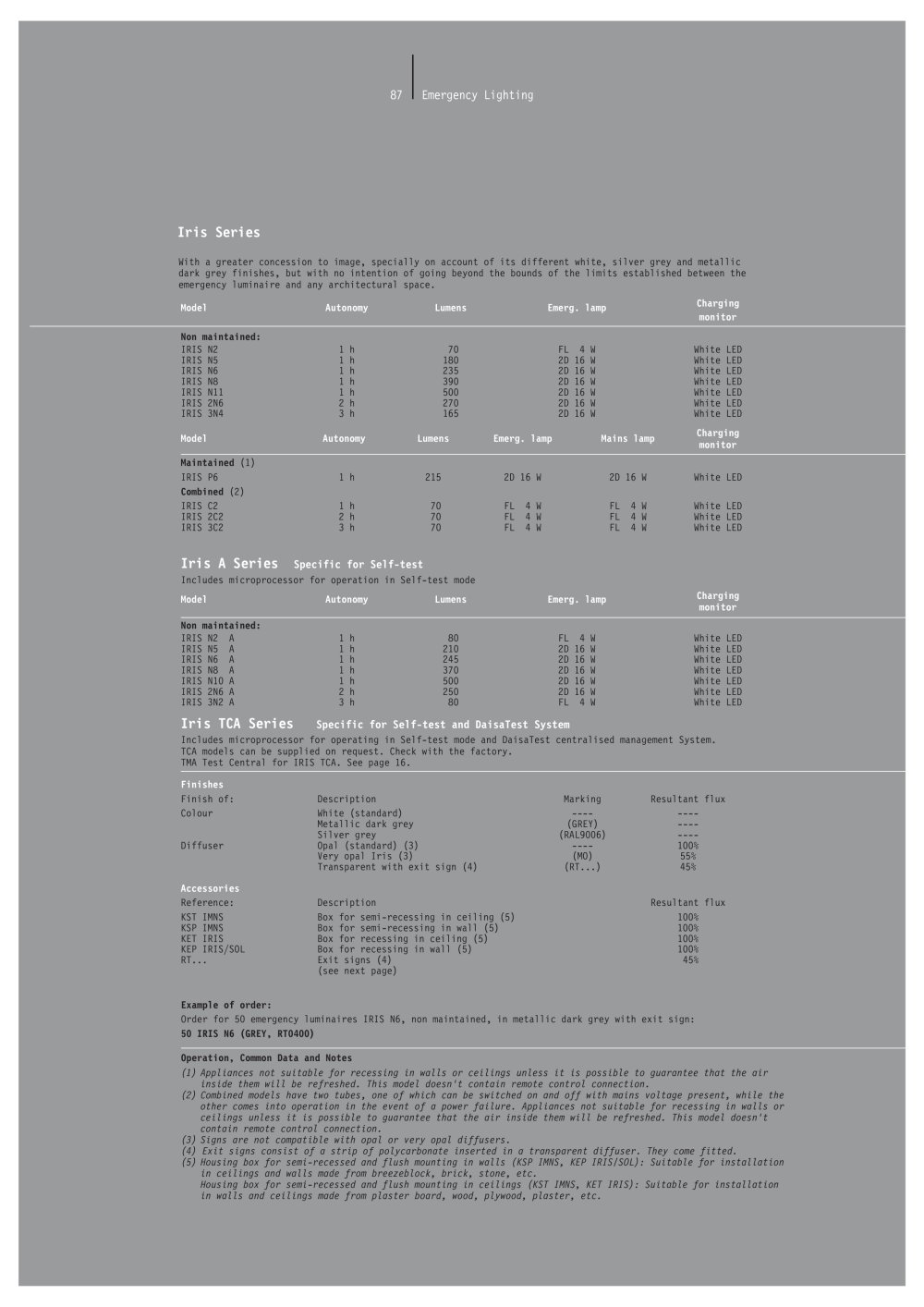

Iris Series

With a greater concession to image, specially on account of its different white, silver grey and metallicdark grey finishes, but with no intention of going beyond the bounds of the limits established between the emergency luminaire and any architectural space. ChargingModelAutonomyLumensEmerg. lampmonitor Non maintained: IRIS N21 h 70FL 4 WWhite LEDIRIS N51 h1802D 16 WWhite LED IRIS N61 h2352D 16 WWhite LED IRIS N81 h3902D 16 WWhite LEDIRIS N111 h5002D 16 WWhite LEDIRIS 2N62 h2702D 16 WWhite LED IRIS 3N43 h1652D 16 WWhite LED Model Autonomy LumensEmerg. lampMains lampChargingmonitor Maintained (1)IRIS P61 h2152D 16 W2D 16 WWhite LED Combined (2)IRIS C21 h 70FL 4 WFL 4 WWhite LEDIRIS 2C22 h 70FL 4 WFL 4 WWhite LED IRIS 3C23 h 70FL 4 WFL 4 WWhite LED

Iris A Series

Specific for Self-test

Includes microprocessor for operation in Self-test mode ChargingModelAutonomyLumensEmerg. lampmonitor Non maintained: IRIS N2 A1 h 80FL 4 WWhite LEDIRIS N5 A1 h2102D 16 WWhite LEDIRIS N6 A1 h2452D 16 WWhite LEDIRIS N8 A1 h3702D 16 WWhite LED IRIS N10 A1 h5002D 16 WWhite LED IRIS 2N6 A2 h2502D 16 WWhite LEDIRIS 3N2 A3 h 80FL 4 WWhite LED

Iris TCA Series

Specific for Self-test and DaisaTest System

Includes microprocessor for operating in Self-test mode and DaisaTest centralised management System.TCA models can be supplied on request. Check with the factory.TMA Test Central for IRIS TCA. See page 16. Finishes Finish of:Description MarkingResultant fluxColourWhite (standard)--------Metallic dark grey(GREY)----Silver grey (RAL9006)----DiffuserOpal (standard) (3) ----100%Very opal Iris (3)(MO)55%Transparent with exit sign (4)(RT...)45% Accessories Reference:DescriptionResultant fluxKST IMNSBox for semi-recessing in ceiling (5)100%KSP IMNSBox for semi-recessing in wall (5)100%KET IRISBox for recessing in ceiling (5)100% KEP IRIS/SOLBox for recessing in wall (5)100% RT...Exit design signs (4) 45%(see next page) Example of order: 50 IRIS N6 (GREY, RT0400) Order for 50 emergency luminaires IRIS N6, non maintained, in metallic dark grey with exit sign: Operation, Common Data and Notes (1)Appliances not suitable for recessing in walls or architectural ceilings unless it is possible to guarantee that the airinside them will be refreshed. This model doesn’t contain remote control connection.(2)Combined models have two tubes, one of which can be switched on and off with mains voltage present, while theother comes into operation in the event of a power failure. Appliances not suitable for recessing in walls orceilings unless it is possible to guarantee that the air inside them will be refreshed. This model doesn’tcontain remote control connection.(3)Signs are not compatible with opal or very opal modern diffusers.(4) Exit signs consist of a strip of polycarbonate inserted in a transparent diffuser. They come fitted.(5)Housing box for semi-recessed and flush mounting in walls (KSP IMNS, KEP IRIS/SOL): Suitable for installationin ceilings and walls made from breezeblock, brick, stone, etc.Housing box for semi-recessed and flush mounting in ceilings (KST IMNS, KET IRIS): Suitable for installationin walls and ceilings made from plaster board, wood, plywood, plaster, etc.
