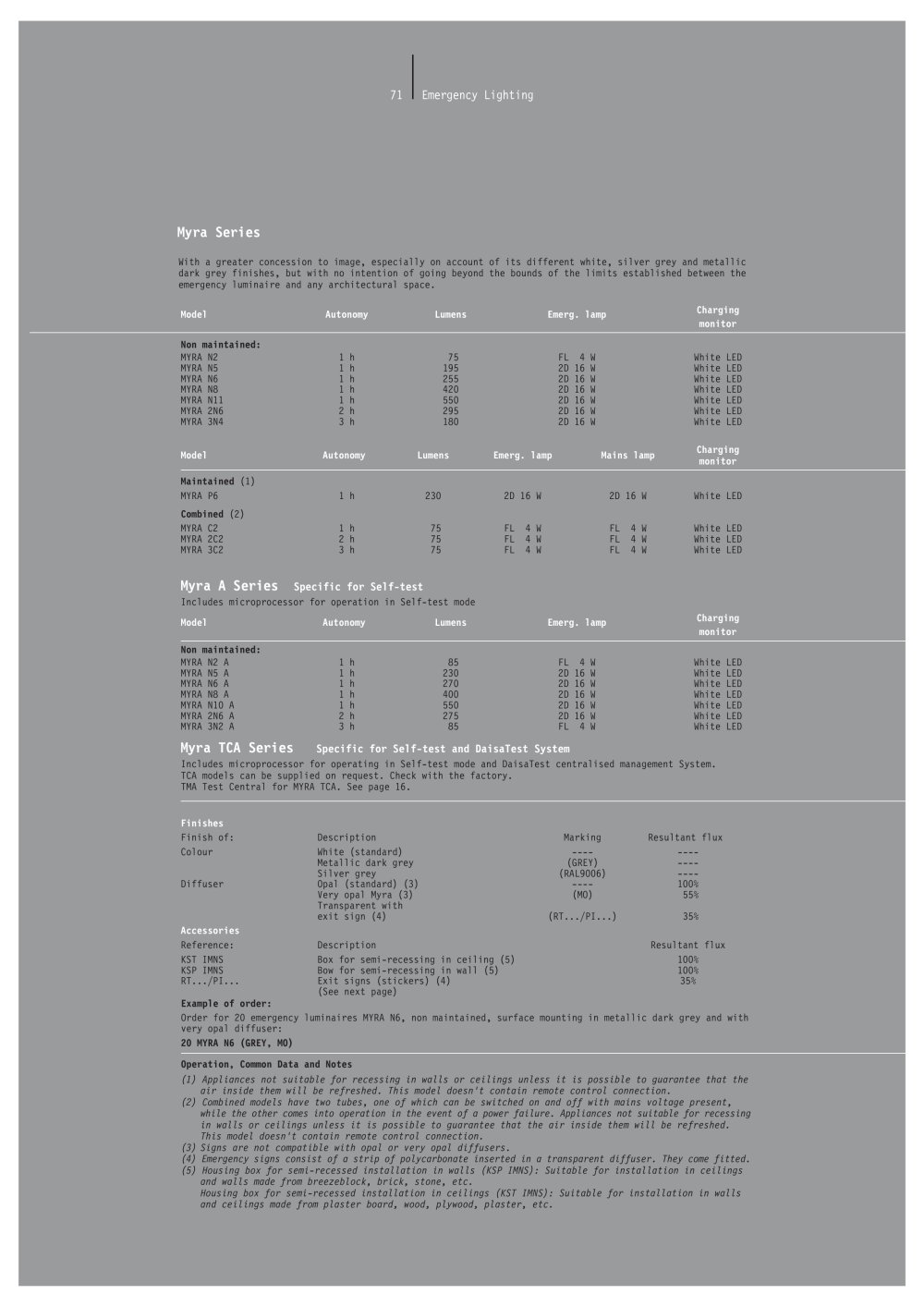

Myra Series

With a greater concession to image, especially on account of its different white, silver grey and metallicdark grey finishes, but with no intention of going beyond the bounds of the limits established between the emergency luminaire and any architectural space. ChargingModelAutonomyLumensEmerg. lampmonitor Non maintained: MYRA N21 h 75FL 4 WWhite LEDMYRA N51 h1952D 16 WWhite LEDMYRA N61 h2552D 16 WWhite LEDMYRA N81 h4202D 16 WWhite LEDMYRA N111 h5502D 16 WWhite LED MYRA 2N62 h2952D 16 WWhite LED MYRA 3N43 h1802D 16 WWhite LED ModelAutonomy LumensEmerg. lampMains lampChargingmonitor Maintained (1)MYRA P61 h2302D 16 W2D 16 WWhite LED Combined (2)MYRA C21 h 75FL 4 WFL 4 WWhite LEDMYRA 2C22 h 75FL 4 WFL 4 WWhite LED MYRA 3C23 h 75FL 4 WFL 4 WWhite LED

Myra A Series

Specific for Self-test

Includes microprocessor for operation in Self-test mode ChargingModelAutonomy LumensEmerg. lampmonitor Non maintained: MYRA N2 A1 h 85FL 4 WWhite LEDMYRA N5 A1 h2302D 16 WWhite LED MYRA N6 A1 h2702D 16 WWhite LED MYRA N8 A1 h4002D 16 WWhite LED MYRA N10 A1 h5502D 16 WWhite LEDMYRA 2N6 A2 h2752D 16 WWhite LEDMYRA 3N2 A3 h 85FL 4 WWhite LED

Myra TCA Series

Specific for Self-test and DaisaTest System

Includes microprocessor for operating in Self-test mode and DaisaTest centralised management System.TCA models can be supplied on request. Check with the factory.TMA Test Central for MYRA TCA. See page 16. Finishes Finish of:Description MarkingResultant fluxColourWhite (standard)--------Metallic dark grey(GREY)---- Silver grey(RAL9006)----DiffuserOpal (standard) (3) ----100%Very opal Myra (3)(MO) 55% Transparent withexit sign (4)(RT.../PI...) 35% Accessories Reference:DescriptionResultant fluxKST IMNSBox for semi-recessing in ceiling (5)100%KSP IMNSBow for semi-recessing in wall (5)100% RT.../PI...Exit garden signs (stickers) (4)35%(See next page) Example of order: Order for 20 emergency luminaires MYRA N6, non maintained, surface mounting in metallic dark grey and withvery opal diffuser: 20 MYRA N6 (GREY, MO) Operation, Common Data and Notes (1) Appliances not suitable for recessing in walls or commercial ceilings unless it is possible to guarantee that theair inside them will be refreshed. This model doesn’t contain remote control connection.(2) Combined models have two tubes, one of which can be switched on and off with mains voltage present,while the other comes into operation in the event of a power failure. Appliances not suitable for recessingin walls or ceilings unless it is possible to guarantee that the air inside them will be refreshed.This model doesn’t contain remote control connection.(3)Signs are not compatible with opal or very opal modern diffusers. (4) Emergency signs consist of a strip of polycarbonate inserted in a transparent diffuser. They come fitted.(5) Housing box for semi-recessed installation in walls (KSP IMNS): Suitable for installation in ceilingsand walls made from breezeblock, brick, stone, etc.Housing box for semi-recessed installation in ceilings (KST IMNS): Suitable for installation in wallsand ceilings made from plaster board, wood, plywood, plaster, etc.
