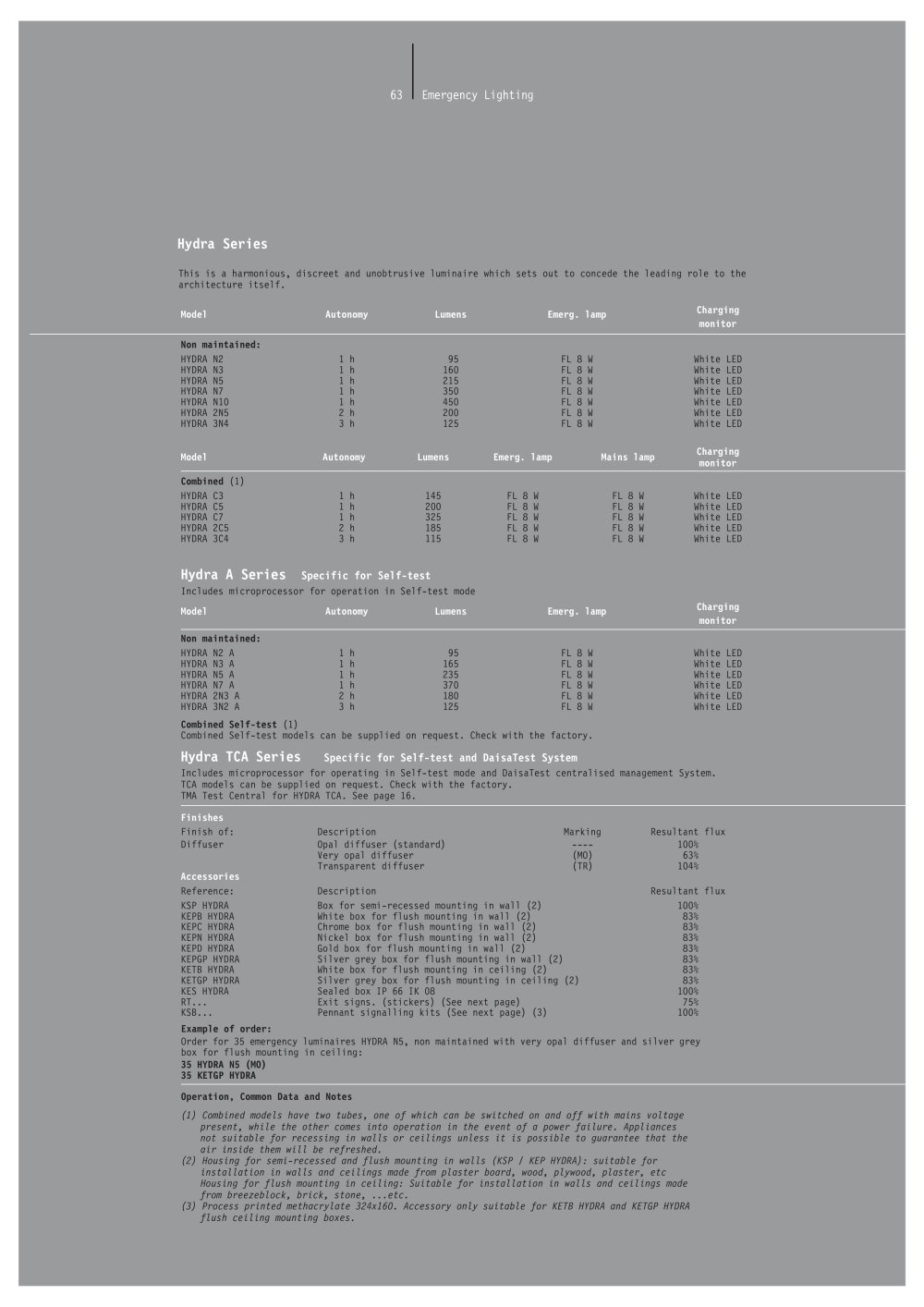

Hydra Series

This is a harmonious, discreet and unobtrusive luminaire which sets out to concede the leading role to thearchitecture itself. ChargingModelAutonomyLumensEmerg. lampmonitor Non maintained: HYDRA N21 h 95FL 8 WWhite LEDHYDRA N31 h160FL 8 WWhite LED HYDRA N51 h215FL 8 WWhite LED HYDRA N71 h350FL 8 WWhite LED HYDRA N101 h450FL 8 WWhite LEDHYDRA 2N52 h200FL 8 WWhite LEDHYDRA 3N43 h125FL 8 WWhite LED Model Autonomy LumensEmerg. lampMains lampChargingmonitor Combined (1)HYDRA C31 h145FL 8 WFL 8 WWhite LEDHYDRA C51 h200FL 8 WFL 8 WWhite LEDHYDRA C71 h325FL 8 WFL 8 WWhite LEDHYDRA 2C52 h185FL 8 WFL 8 WWhite LED HYDRA 3C43 h115FL 8 WFL 8 WWhite LED

Hydra A Series

Specific for Self-test

Includes microprocessor for operation in Self-test mode ChargingModelAutonomyLumensEmerg. lampmonitor Non maintained: HYDRA N2 A1 h 95FL 8 WWhite LEDHYDRA N3 A1 h165FL 8 WWhite LEDHYDRA N5 A1 h235FL 8 WWhite LEDHYDRA N7 A1 h370FL 8 WWhite LED HYDRA 2N3 A2 h180FL 8 WWhite LED HYDRA 3N2 A3 h125FL 8 WWhite LED Combined Self-test (1)Combined Self-test models can be supplied on request. Check with the factory.

Hydra TCA Series

Specific for Self-test and DaisaTest System

Includes microprocessor for operating in Self-test mode and DaisaTest centralised management System.TCA models can be supplied on request. Check with the factory. TMA Test Central for HYDRA TCA. See page 16. Finishes Finish of:Description MarkingResultant fluxDiffuserOpal diffuser (standard)----100%Very opal diffuser(MO) 63% Transparent diffuser(TR)104% Accessories Reference:DescriptionResultant fluxKSP HYDRABox for semi-recessed mounting in wall (2)100%KEPB HYDRAWhite box for flush mounting in wall (2) 83% KEPC HYDRAChrome box for flush mounting in wall (2) 83%KEPN HYDRANickel box for flush mounting in wall (2) 83%KEPD HYDRAGold box for flush mounting in wall (2) 83% KEPGP HYDRASilver grey box for flush mounting in wall (2) 83% KETB HYDRAWhite box for flush mounting in ceiling (2) 83% KETGP HYDRASilver grey box for flush mounting in ceiling (2) 83%KES HYDRASealed box IP 66 IK 08100%RT...Exit rustic signs. (stickers) (See next page) 75%KSB...Pennant signalling kits (See next page) (3) 100% Operation, Common Data and Notes (1) Combined models have two tubes, one of which can be switched on and off with mains voltagepresent, while the other comes into operation in the event of a power failure. Appliances not suitable for recessing in walls or ceilings unless it is possible to guarantee that theair inside them will be refreshed.(2) Housing for semi-recessed and flush mounting in walls (KSP / KEP HYDRA): suitable forinstallation in walls and ceilings made from plaster board, wood, plywood, plaster, etc Housing for flush mounting in ceiling: Suitable for installation in walls and ceilings madefrom breezeblock, brick, stone, ...etc.(3) Process printed methacrylate 324x160. Accessory only suitable for KETB HYDRA and KETGP HYDRAflush ceiling mounting boxes. Example of order: Order for 35 emergency luminaires HYDRA N5, non maintained with very opal diffuser and silver greybox for flush mounting in ceiling: 35 HYDRA N5 (MO)35 KETGP HYDRA
