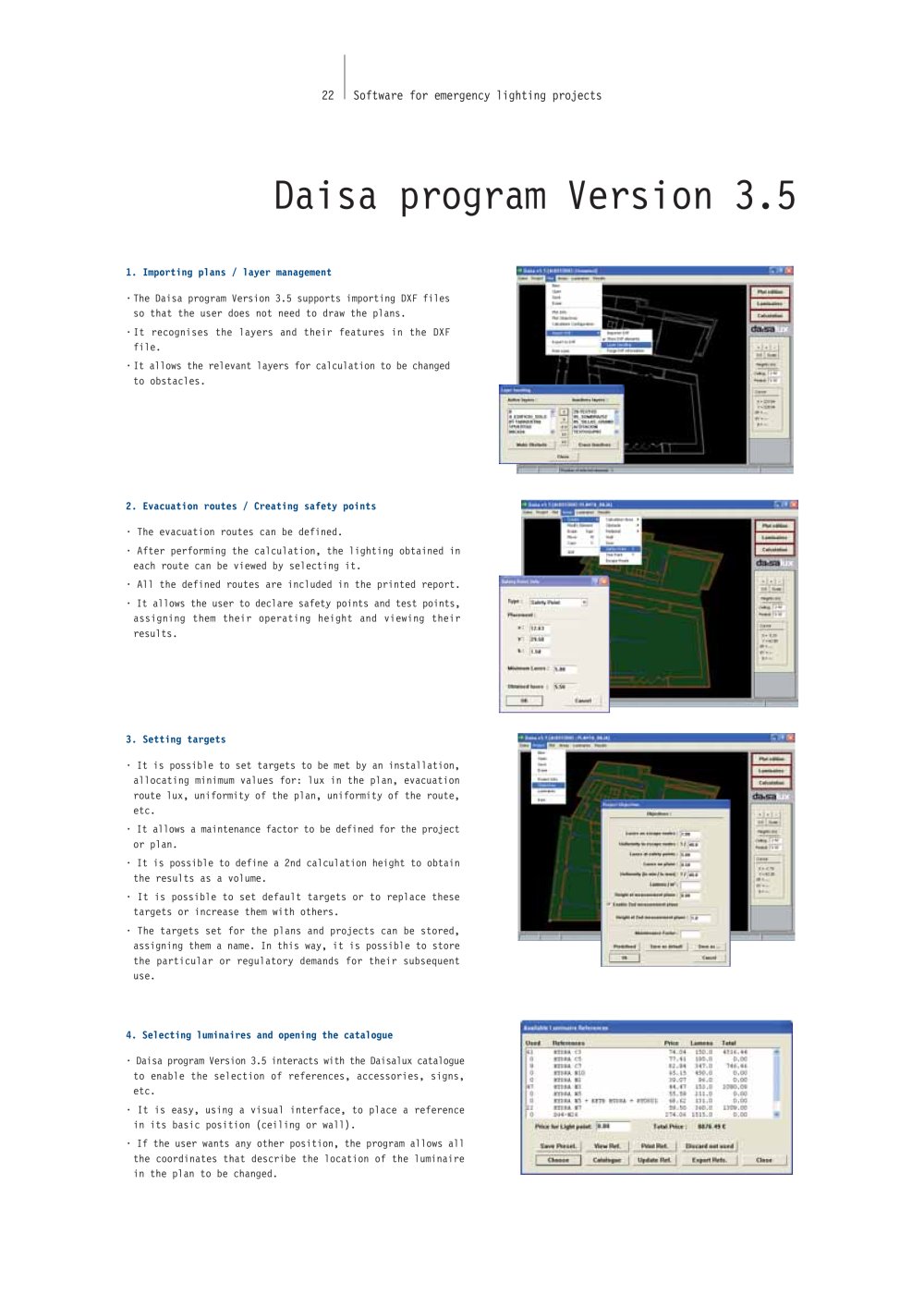

22 Garden software for emergency lighting projects

Daisa program Version 3.5

1. Importing plans / layer management •The Daisa program Version 3.5 supports importing DXF filesso that the user does not need to draw the plans.•It recognises the layers and their features in the DXFfile.•It allows the relevant layers for calculation to be changedto obstacles. 2. Evacuation routes / Creating safety points • The evacuation routes can be defined.• After performing the calculation, the lighting obtained ineach route can be viewed by selecting it.• All the defined routes are included in the printed report. • It allows the user to declare safety points and test points,assigning them their operating height and viewing their results. 3. Setting targets • It is possible to set targets to be met by an installation,allocating minimum values for: lux in the plan, evacuationroute lux, uniformity of the plan, uniformity of the route, etc.• It allows a maintenance factor to be defined for the design projector plan.• It is possible to define a 2nd calculation height to obtainthe results as a volume.• It is possible to set default targets or to replace thesetargets or increase them with others.• The targets set for the plans and projects can be stored,assigning them a name. In this way, it is possible to store the particular or regulatory demands for their subsequentuse. 4. Selecting luminaires and opening the catalogue • Daisa program Version 3.5 interacts with the Daisalux catalogueto enable the selection of references, accessories, rustic signs,etc.• It is easy, using a visual interface, to place a referencein its basic position (garden ceiling or wall).• If the user wants any other position, the program allows allthe coordinates that describe the location of the luminairein the plan to be changed.
