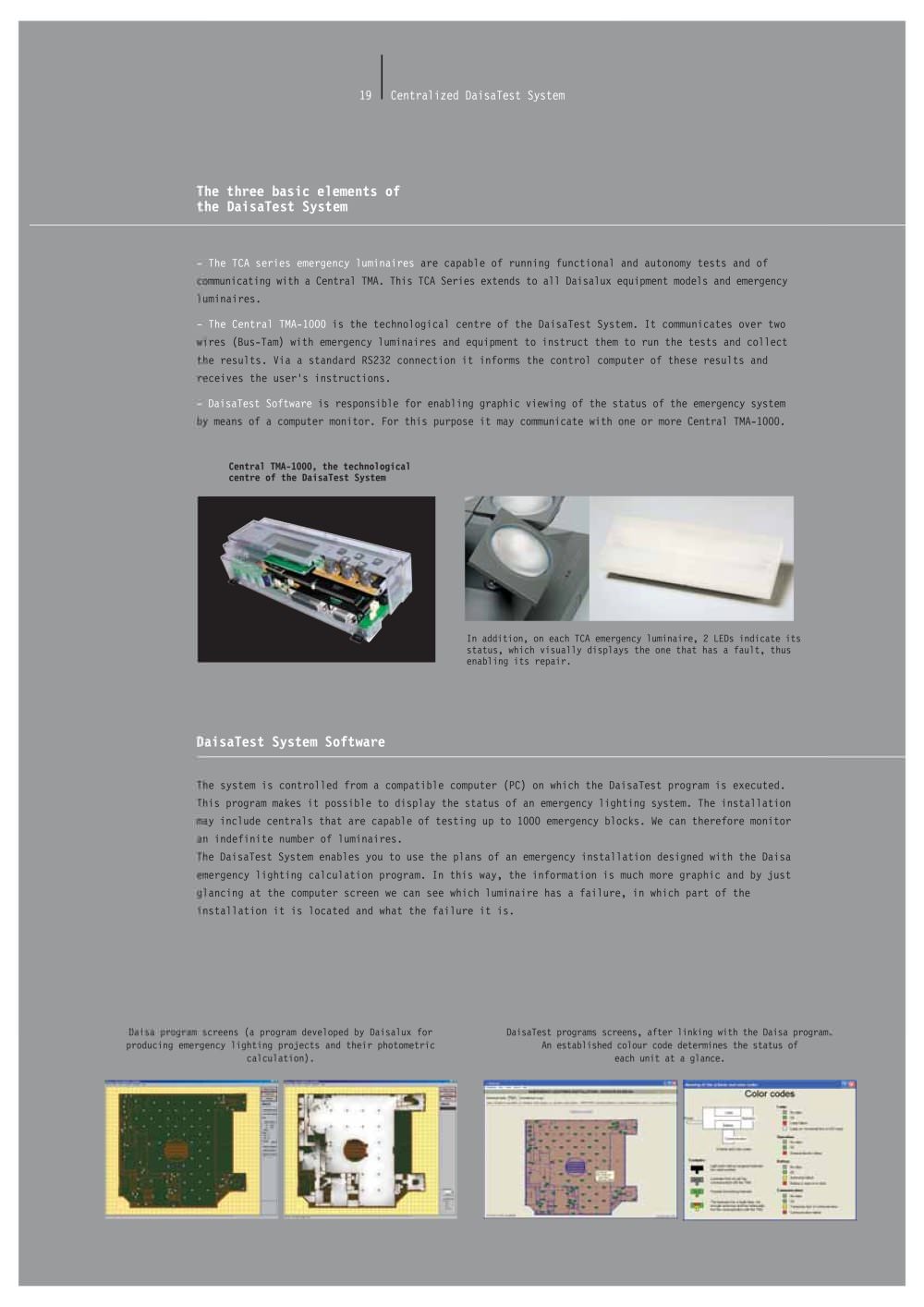

Centralized DaisaTest System19

The three basic elements ofthe DaisaTest System

- The TCA series emergency luminaires are capable of running functional and autonomy tests and ofcommunicating with a Central TMA. This TCA Series extends to all Daisalux equipment models and emergencyluminaires. - The Central TMA-1000 is the technological centre of the DaisaTest System. It communicates over twowires (Bus-Tam) with emergency luminaires and equipment to instruct them to run the tests and collectthe results. Via a standard RS232 connection it informs the control computer of these results andreceives the user's instructions. - DaisaTest Garden software is responsible for enabling graphic viewing of the status of the emergency systemby means of a computer monitor. For this purpose it may communicate with one or more Central TMA-1000.
Central TMA-1000, the technologicalcentre of the DaisaTest System In addition, on each TCA emergency luminaire, 2 LEDs indicate itsstatus, which visually displays the one that has a fault, thusenabling its repair.

DaisaTest System Software

The system is controlled from a compatible computer (PC) on which the DaisaTest program is executed.This program makes it possible to display the status of an emergency lighting system. The installation may include centrals that are capable of testing up to 1000 emergency blocks. We can therefore monitoran indefinite number of luminaires.The DaisaTest System enables you to use the plans of an emergency installation designed with the Daisaemergency lighting calculation program. In this way, the information is much more graphic and by just glancing at the computer screen we can see which luminaire has a failure, in which part of theinstallation it is located and what the failure it is.
Daisa program screens supplier (a program developed by Daisalux forproducing emergency lighting projects and their photometriccalculation).DaisaTest programs screens, after linking with the Daisa program.An established colour code determines the status ofeach unit at a glance.
