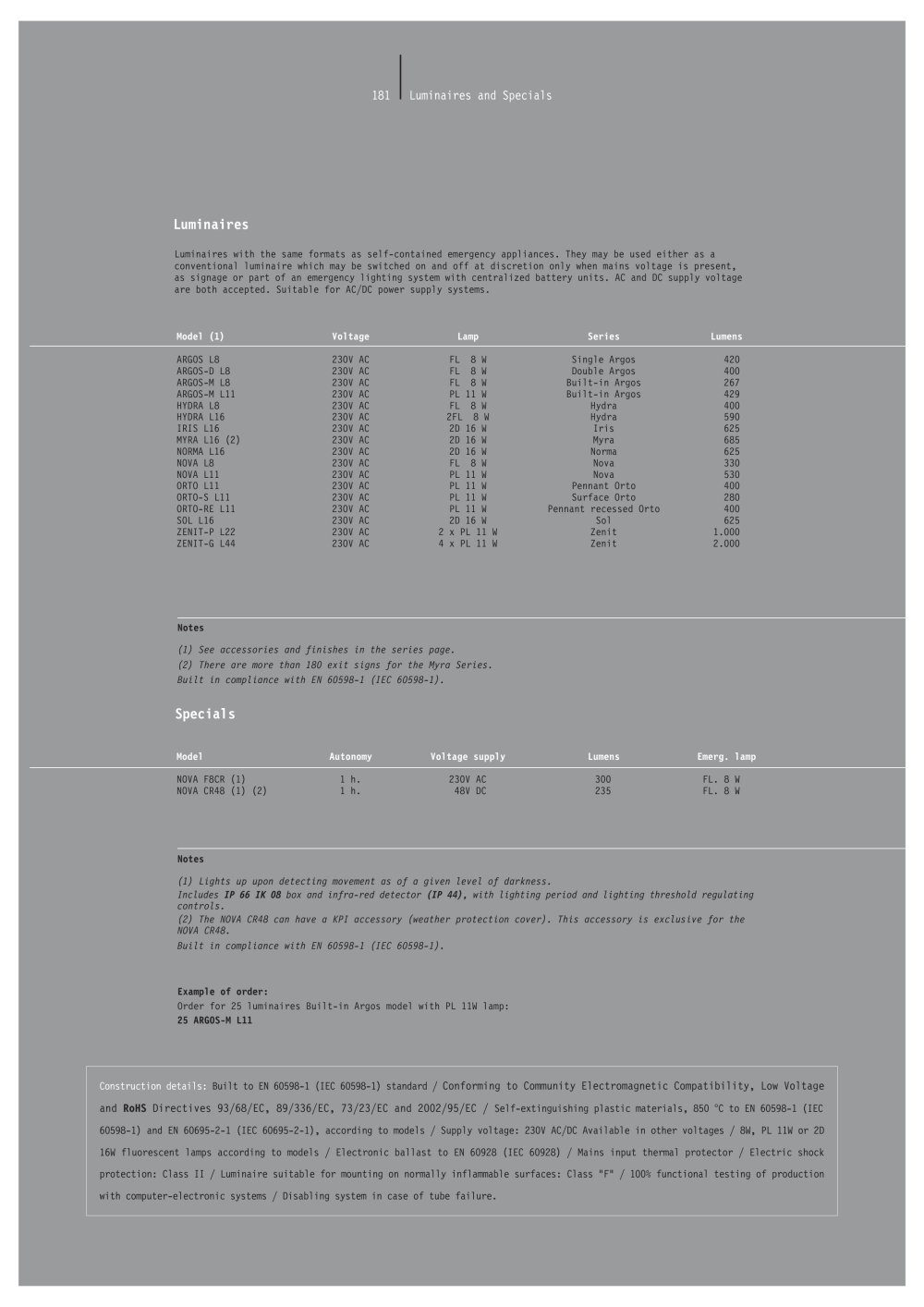

Luminaires and Specials181

Luminaires

Luminaires with the same formats as self-contained emergency appliances. They may be used either as aconventional luminaire which may be switched on and off at discretion only when mains voltage is present, as signage or part of an emergency lighting system with centralized battery units. AC and DC supply voltageare both accepted. Suitable for AC/DC power supply systems. Model (1)VoltageLampSeriesLumens ARGOS L8230V ACFL 8 WSingle Argos 420ARGOS-D L8230V ACFL 8 WDouble Argos 400ARGOS-M L8230V ACFL 8 WBuilt-in Argos 267ARGOS-M L11230V ACPL 11 WBuilt-in Argos 429HYDRA L8230V ACFL 8 WHydra 400HYDRA L16230V AC2FL 8 WHydra 590IRIS L16230V AC2D 16 WIris 625MYRA L16 (2)230V AC2D 16 WMyra 685NORMA L16230V AC2D 16 WNorma 625NOVA L8230V ACFL 8 WNova 330 NOVA L11230V ACPL 11 WNova 530 ORTO L11230V ACPL 11 WPennant Orto 400 ORTO-S L11230V ACPL 11 WSurface Orto 280 ORTO-RE L11230V ACPL 11 WPennant recessed Orto 400 SOL L16230V AC2D 16 WSol 625 ZENIT-P L22230V AC2 x PL 11 WZenit1.000 ZENIT-G L44230V AC4 x PL 11 WZenit2.000 (1) See accessories and finishes in the series page.(2) There are more than 180 exit design signs for the Myra Series.Built in compliance with EN 60598-1 (IEC 60598-1).

Specials

Model AutonomyVoltage supplyLumensEmerg. lamp NOVA F8CR (1)1 h.230V AC300FL. 8 W NOVA CR48 (1) (2)1 h. 48V DC235FL. 8 W Notes (1) Luminaires up upon detecting movement as of a given level of darkness.Includes IP 66 IK 08 box and infra-red modern detector (IP 44) , with lighting period and lighting threshold regulatingcontrols.(2) The NOVA CR48 can have a KPI accessory (weather protection cover). This accessory is exclusive for theNOVA CR48.Built in compliance with EN 60598-1 (IEC 60598-1). Example of order: Order for 25 luminaires Built-in Argos model with PL 11W lamp: 25 ARGOS-M L11 Notes

Construction details: Built to EN 60598-1 (IEC 60598-1) standard /

Conforming to Community Electromagnetic Compatibility, Low Voltageand RoHS Directives 93/68/EC, 89/336/EC, 73/23/EC and 2002/95/EC /

Self-extinguishing plastic materials, 850 ° C to EN 60598-1 (IEC60598-1) and EN 60695-2-1 (IEC 60695-2-1), according to models / Supply voltage: 230V AC/DC Available in other voltages / 8W, PL 11W or 2D16W fluorescent lamps according to models / Electronic ballast to EN 60928 (IEC 60928) / Mains input thermal protector / Electric shockprotection: Class II / Luminaire suitable for mounting on normally inflammable surfaces: Class "F" / 100% functional testing of productionwith computer-electronic systems / Disabling system in case of tube failure.
