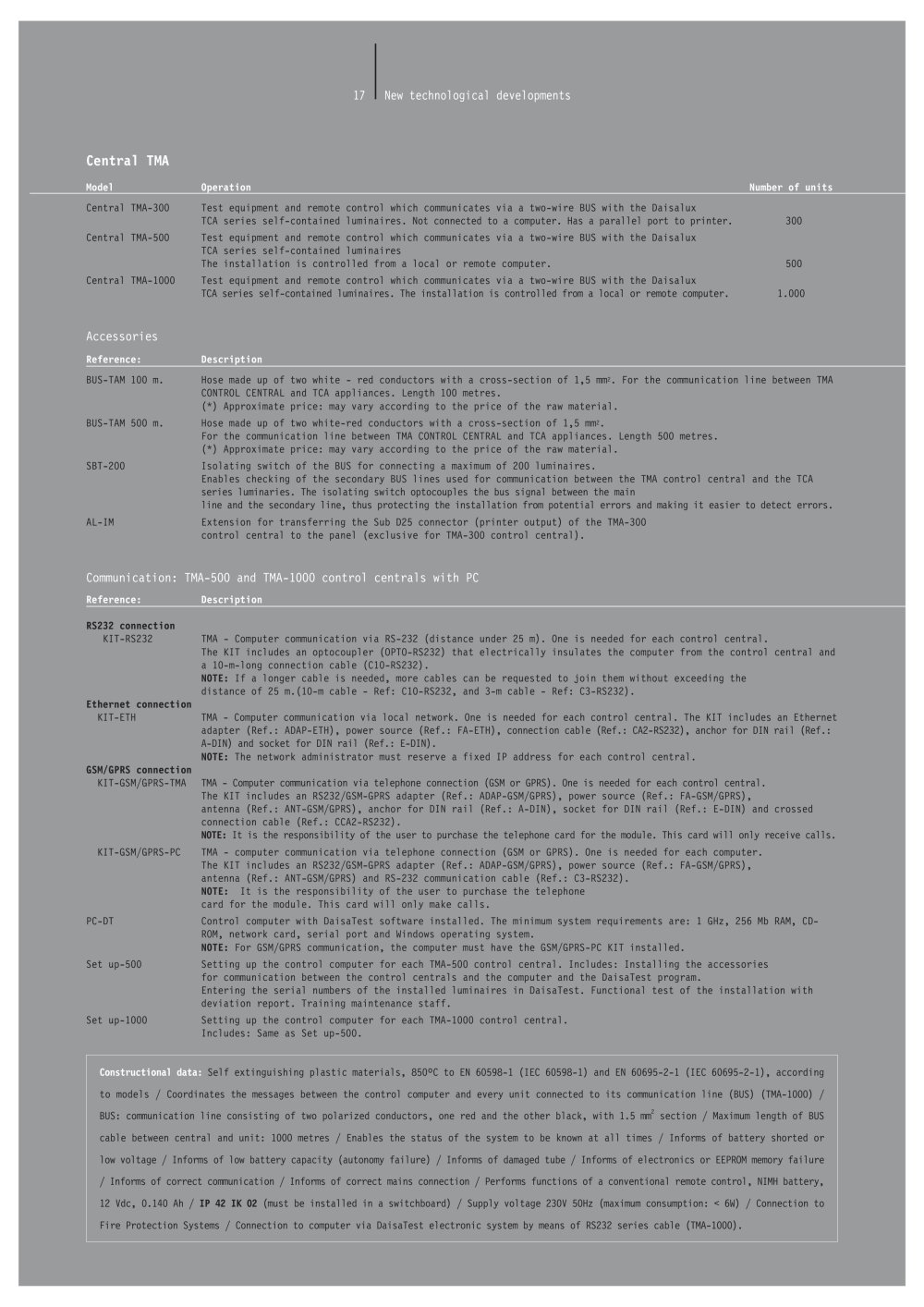

17 New technological developments

Central TMA

Model OperationNumber of units Central TMA-300Test equipment and remote control which communicates via a two-wire BUS with the DaisaluxTCA series self-contained luminaires. Not connected to a computer. Has a parallel port to printer. 300Central TMA-500Test equipment and remote control which communicates via a two-wire BUS with the DaisaluxTCA series self-contained luminairesThe installation is controlled from a local or remote computer. 500Central TMA-1000Test equipment and remote control which communicates via a two-wire BUS with the DaisaluxTCA series self-contained luminaires. The installation is controlled from a local or remote computer.1.000

Accessories

Reference:Description BUS-TAM 100 m.Hose made up of two white - red conductors with a cross-section of 1,5 mm
2 . For the communication line between TMACONTROL CENTRAL and TCA appliances. Length 100 metres.(*) Approximate price: may vary according to the price of the raw material.BUS-TAM 500 m.Hose made up of two white-red conductors with a cross-section of 1,5 mm
2 .For the communication line between TMA CONTROL CENTRAL and TCA appliances. Length 500 metres.(*) Approximate price: may vary according to the price of the raw material.SBT-200Isolating switch of the BUS for connecting a maximum of 200 luminaires.Enables checking of the secondary BUS lines used for communication between the TMA control central and the TCAseries luminaries. The isolating switch optocouples the bus signal between the mainline and the secondary line, thus protecting the installation from potential errors and making it easier to detect errors.AL-IMExtension for transferring the Sub D25 connector (printer output) of the TMA-300control central to the panel furniture (exclusive for TMA-300 control central).

Communication: TMA-500 and TMA-1000 control centrals with PC

Reference:Description RS232 connection KIT-RS232TMA - Computer communication via RS-232 (distance under 25 m). One is needed for each control central.The KIT includes an optocoupler (OPTO-RS232) that electrically insulates the computer from the control central anda 10-m-long connection cable (C10-RS232). NOTE: If a longer cable is needed, more cables can be requested to join them without exceeding thedistance of 25 m.(10-m cable - Ref: C10-RS232, and 3-m cable - Ref: C3-RS232). KIT-ETHTMA - Computer communication via local network. One is needed for each control central. The KIT includes an Ethernetadapter (Ref.: ADAP-ETH), power source (Ref.: FA-ETH), connection cable (Ref.: CA2-RS232), anchor for DIN rail (Ref.:A-DIN) and socket for DIN rail (Ref.: E-DIN). Ethernet connection KIT-GSM/GPRS-TMATMA - Computer communication via telephone connection (GSM or GPRS). One is needed for each control central.The KIT includes an RS232/GSM-GPRS adapter (Ref.: ADAP-GSM/GPRS), power source (Ref.: FA-GSM/GPRS), antenna (Ref.: ANT-GSM/GPRS), anchor for DIN rail (Ref.: A-DIN), socket for DIN rail (Ref.: E-DIN) and crossedconnection cable (Ref.: CCA2-RS232). NOTE: The network administrator must reserve a fixed IP address for each control central. GSM/GPRS connection NOTE: It is the responsibility of the user to purchase the telephone card for the module. This card will only receive calls. KIT-GSM/GPRS-PCTMA - computer communication via telephone connection (GSM or GPRS). One is needed for each computer.The KIT includes an RS232/GSM-GPRS adapter (Ref.: ADAP-GSM/GPRS), power source (Ref.: FA-GSM/GPRS), antenna (Ref.: ANT-GSM/GPRS) and RS-232 communication cable (Ref.: C3-RS232). NOTE: It is the responsibility of the user to purchase the telephonecard for the module. This card will only make calls.PC-DTControl computer with DaisaTest building software installed. The minimum system requirements are: 1 GHz, 256 Mb RAM, CD-ROM, network card, serial port and Windows suppliers operating system. NOTE: For GSM/GPRS communication, the computer must have the GSM/GPRS-PC KIT installed.Set up-500Setting up the control computer for each TMA-500 control central. Includes: Installing the accessoriesfor communication between the control centrals and the computer and the DaisaTest program.Entering the serial numbers of the installed luminaires in DaisaTest. Functional test of the installation withdeviation report. Training maintenance staff.Set up-1000Setting up the control computer for each TMA-1000 control central.Includes: Same as Set up-500. Constructional data: Self extinguishing plastic materials, 850ºC to EN 60598-1 (IEC 60598-1) and EN 60695-2-1 (IEC 60695-2-1), accordingto models / Coordinates the messages between the control computer and every unit connected to its communication line (BUS) (TMA-1000) /BUS: communication line consisting of two polarized conductors, one red and the other black, with 1.5 mm
2 section / Maximum length of BUScable between central and unit: 1000 metres / Enables the status of the system to be known at all times / Informs of battery shorted orlow voltage / Informs of low battery capacity (autonomy failure) / Informs of damaged tube / Informs of electronics or EEPROM memory failure/ Informs of correct communication / Informs of correct mains connection / Performs functions of a conventional remote control, NIMH battery,12 Vdc, 0.140 Ah / IP 42 IK 02 (must be installed in a switchboard) / Supply voltage 230V 50Hz (maximum consumption: < 6W) / Connection toFire Protection Systems / Connection to computer via DaisaTest electronic system by means of RS232 series cable (TMA-1000).
