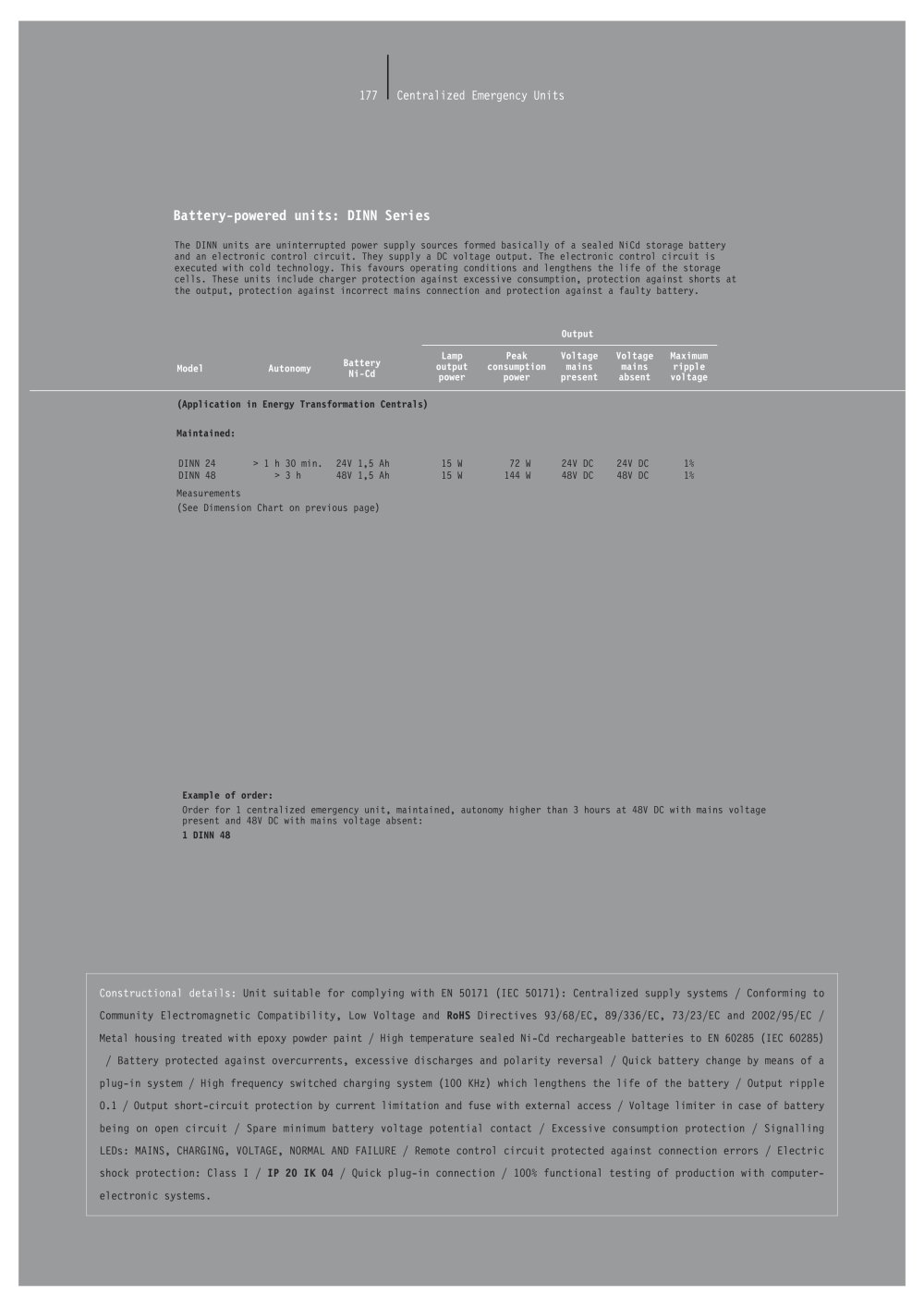

Centralized Emergency Units177

Battery-powered units: DINN Series

The DINN units are uninterrupted power supply sources formed basically of a sealed NiCd home storage batteryand an electronic control circuit. They supply a DC voltage output. The electronic control circuit isexecuted with cold technology. This favours operating conditions and lengthens the life of the storagecells. These units include charger protection against excessive consumption, protection against shorts at the output, protection against incorrect mains connection and protection against a faulty battery. OutputLampPeakVoltageVoltageMaximum ModelAutonomyBatteryoutputconsumptionmainsmainsrippleNi-Cdpowerpowerpresentabsentvoltage (Application in Energy Transformation Centrals)Maintained: DINN 24> 1 h 30 min.24V 1,5 Ah15 W 72 W24V DC24V DC1%DINN 48> 3 h48V 1,5 Ah15 W144 W48V DC48V DC1%Measurements(See Dimension Chart on previous page) Example of order: Order for 1 centralized emergency unit, maintained, autonomy higher than 3 hours at 48V DC with mains voltagepresent and 48V DC with mains voltage absent: 1 DINN 48 Constructional details: Unit suitable for complying with EN 50171 (IEC 50171): Centralized supply systems / Conforming toCommunity Electromagnetic Compatibility, Low Voltage and IP 20 IK 04 / Quick plug-in connection / 100% functional testing of production with computer-electronic systems. RoHS Directives 93/68/EC, 89/336/EC, 73/23/EC and 2002/95/EC /Metal housing treated with epoxy powder paint / High temperature sealed Ni-Cd rechargeable batteries to EN 60285 (IEC 60285) / Battery protected against overcurrents, excessive discharges and polarity reversal / Quick battery change by means of a plug-in system / High frequency switched charging system (100 KHz) which lengthens the life of the battery / Output ripple 0.1 / Output short-circuit protection by current limitation and fuse with external access / Voltage limiter in case of battery being on open circuit / Spare minimum battery voltage potential contact / Excessive consumption protection / SignallingLEDs: MAINS, CHARGING, VOLTAGE, NORMAL AND FAILURE / Remote control circuit protected against connection errors / Electricshock protection: Class I /
