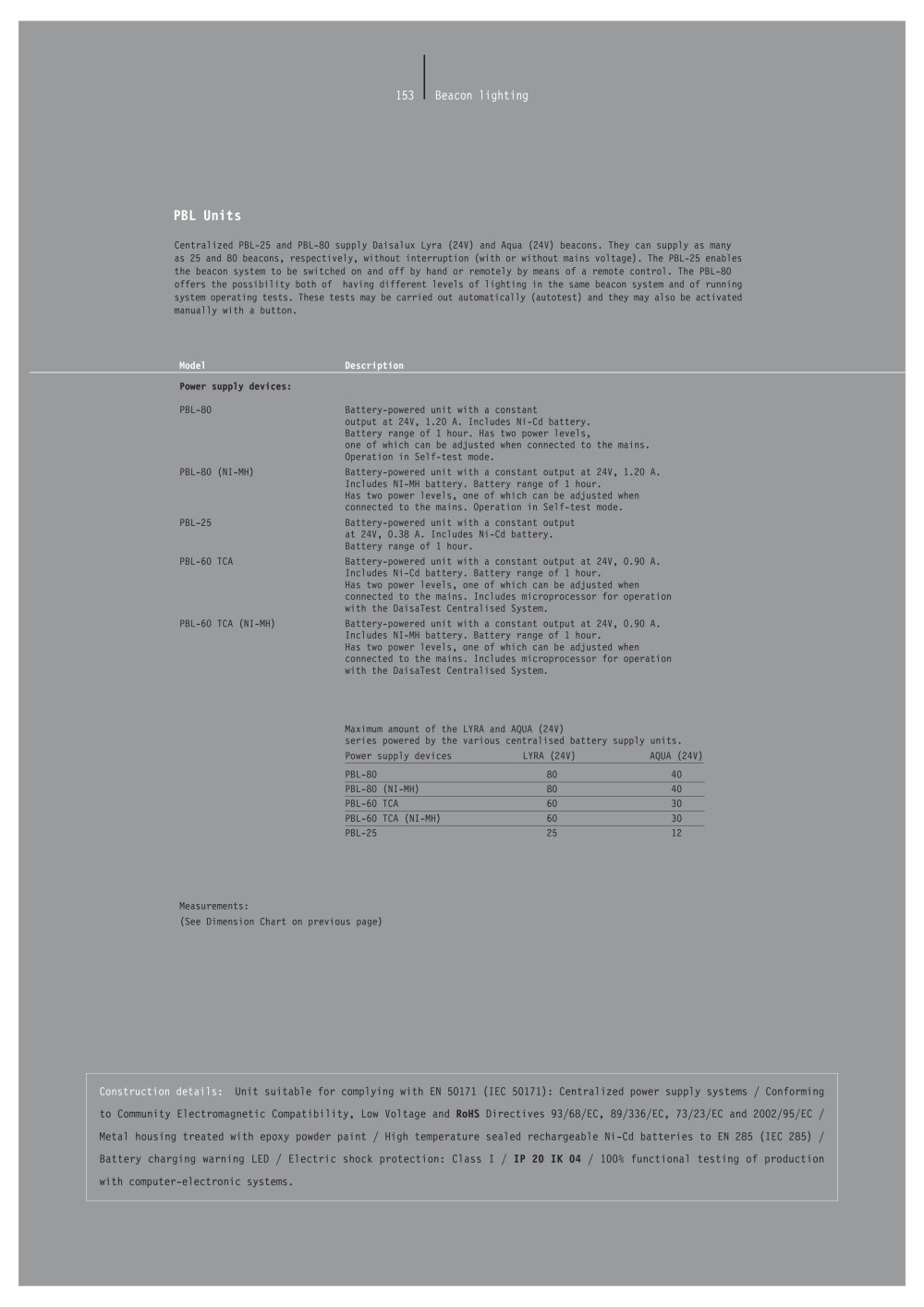

Beacon lighting153
PBL Units
Centralized PBL-25 and PBL-80 supply Daisalux Lyra (24V) and Aqua (24V) beacons. They can supply as manyas 25 and 80 beacons, respectively, without interruption (with or without mains voltage). The PBL-25 enables
the beacon system to be switched on and off by hand or remotely by means of a remote control. The PBL-80offers the possibility both of having different levels of lighting in the same beacon system and of runningsystem operating tests. These tests may be carried out automatically (autotest) and they may also be activated
manually with a button.
ModelDescription Power supply devices: PBL-80Battery-powered unit with a constantoutput at 24V, 1.20 A. Includes Ni-Cd battery.Battery range of 1 hour. Has two power levels,one of which can be adjusted when connected to the mains.Operation in Self-test mode.PBL-80 (NI-MH)Battery-powered unit with a constant output at 24V, 1.20 A.Includes NI-MH battery. Battery range of 1 hour.Has two power levels, one of which can be adjusted when
connected to the mains. Operation in Self-test mode.PBL-25Battery-powered unit with a constant outputat 24V, 0.38 A. Includes Ni-Cd battery.Battery range of 1 hour.PBL-60 TCABattery-powered unit with a constant output at 24V, 0.90 A.Includes Ni-Cd battery. Battery range of 1 hour.
Has two power levels, one of which can be adjusted whenconnected to the mains. Includes microprocessor for operation
with the DaisaTest Centralised System.PBL-60 TCA (NI-MH)Battery-powered unit with a constant output at 24V, 0.90 A.Includes NI-MH battery. Battery range of 1 hour.
Has two power levels, one of which can be adjusted when
connected to the mains. Includes microprocessor for operation
with the DaisaTest Centralised System.Maximum amount of the LYRA and AQUA (24V)series powered by the various centralised battery supply units. Power supply devices LYRA (24V) AQUA (24V) PBL-80 80 40 PBL-80 (NI-MH) 80 40 PBL-60 TCA 60 30 PBL-60 TCA (NI-MH) 60 30 PBL-25 2512Measurements:(See Dimension Chart on previous page)
Construction details: Unit suitable for complying with EN 50171 (IEC 50171): Centralized power supply systems / Conformingto Community Electromagnetic Compatibility, Low Voltage and RoHS Directives 93/68/EC, 89/336/EC, 73/23/EC and 2002/95/EC /Metal housing treated with epoxy powder paint / High temperature sealed rechargeable Ni-Cd batteries to EN 285 (IEC 285) /
Battery charging warning LED / Electric shock protection: Class I / IP 20 IK 04 / 100% functional testing of productionwith computer-electronic systems.
