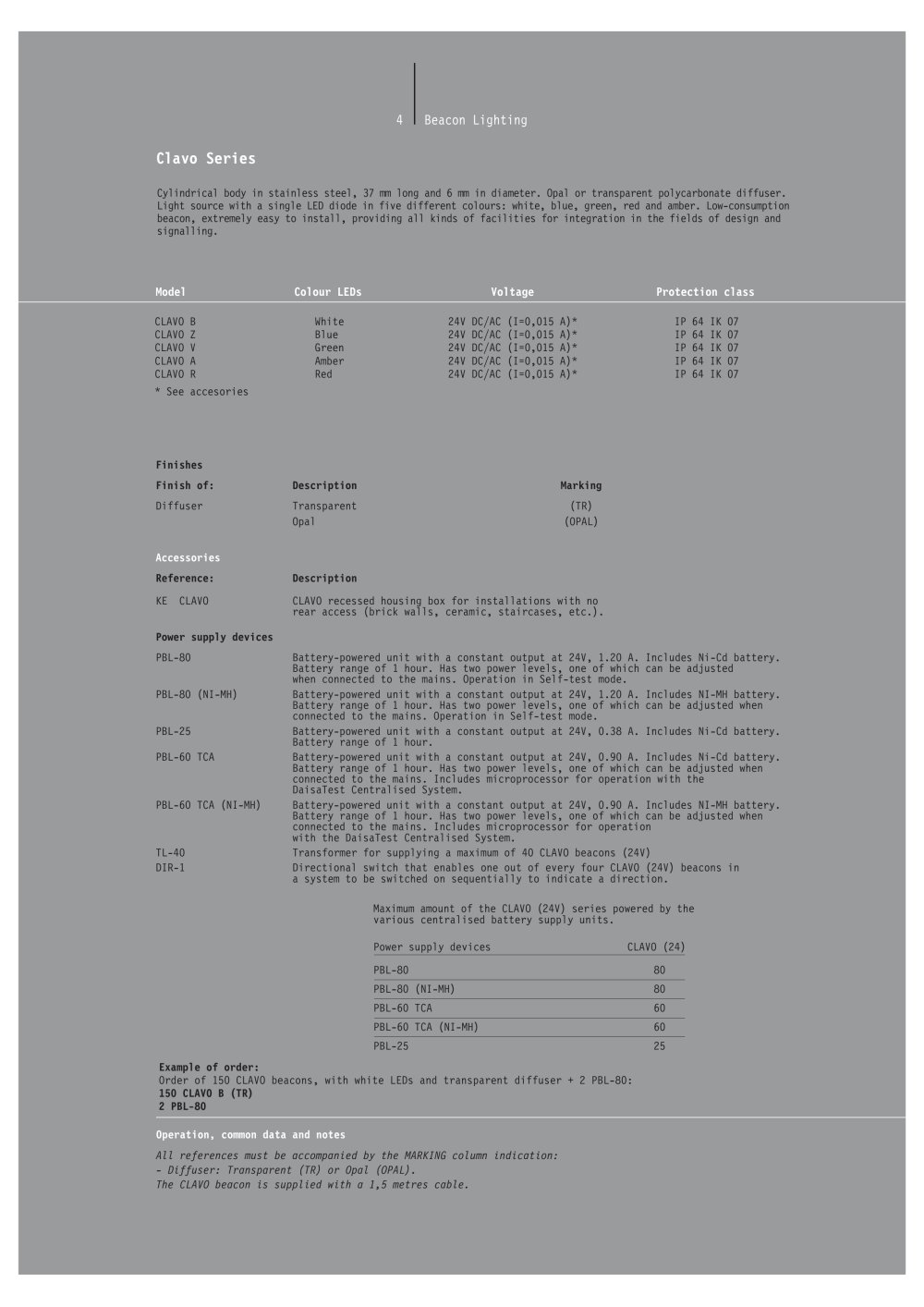

4 Beacon Lighting Clavo Series Cylindrical body in stainless steel, 37 mm long and 6 mm in diameter. Opal or transparent polycarbonate diffuser.Luminaire source with a single LED diode in five different colours: white, blue, green, red and amber. Low-consumptionbeacon, extremely easy to install, providing all kinds of facilities for integration in the fields of architectural design andsignalling. ModelColour LEDsVoltageProtection class FinishesFinish of:Description Marking DiffuserTransparent(TR)Opal(OPAL) Accessories Reference:Description KE CLAVOCLAVO recessed housing box for installations with norear access (brick walls, ceramic, staircases, etc.). Power supply devices PBL-80Battery-powered unit with a constant output at 24V, 1.20 A. Includes Ni-Cd battery.Battery range of 1 hour. Has two power levels, one of which can be adjustedwhen connected to the mains. Operation in Self-test mode.PBL-80 (NI-MH)Battery-powered unit with a constant output at 24V, 1.20 A. Includes NI-MH battery.Battery range of 1 hour. Has two power levels, one of which can be adjusted whenconnected to the mains. Operation in Self-test mode.PBL-25Battery-powered unit with a constant output at 24V, 0.38 A. Includes Ni-Cd battery.Battery range of 1 hour.PBL-60 TCABattery-powered unit with a constant output at 24V, 0.90 A. Includes Ni-Cd battery.Battery range of 1 hour. Has two power levels, one of which can be adjusted whenconnected to the mains. Includes microprocessor for operation with theDaisaTest Centralised System.PBL-60 TCA (NI-MH)Battery-powered unit with a constant output at 24V, 0.90 A. Includes NI-MH battery.Battery range of 1 hour. Has two power levels, one of which can be adjusted whenconnected to the mains. Includes microprocessor for operation
with the DaisaTest Centralised System.TL-40Transformer for supplying a maximum of 40 CLAVO beacons (24V)DIR-1Directional switch that enables one out of every four CLAVO (24V) beacons ina system to be switched on sequentially to indicate a direction.
CLAVO BWhite24V DC/AC (I=0,015 A)*IP 64 IK 07CLAVO ZBlue24V DC/AC (I=0,015 A)*IP 64 IK 07CLAVO VGreen24V DC/AC (I=0,015 A)*IP 64 IK 07
CLAVO AAmber24V DC/AC (I=0,015 A)*IP 64 IK 07CLAVO RRed24V DC/AC (I=0,015 A)*IP 64 IK 07* See accesories Maximum amount of the CLAVO (24V) series powered by thevarious centralised battery supply units.Power supply devicesCLAVO (24)PBL-80 80PBL-80 (NI-MH) 80
PBL-60 TCA 60PBL-60 TCA (NI-MH) 60PBL-25 25 Example of order: Order of 150 CLAVO beacons, with white LEDs and transparent diffuser + 2 PBL-80: 150 CLAVO B (TR)
2 PBL-80 Operation, common data and notes All references must be accompanied by the MARKING garden column indication:- Diffuser: Transparent (TR) or Opal (OPAL).The CLAVO beacon is supplied with a 1,5 metres cable.
|
