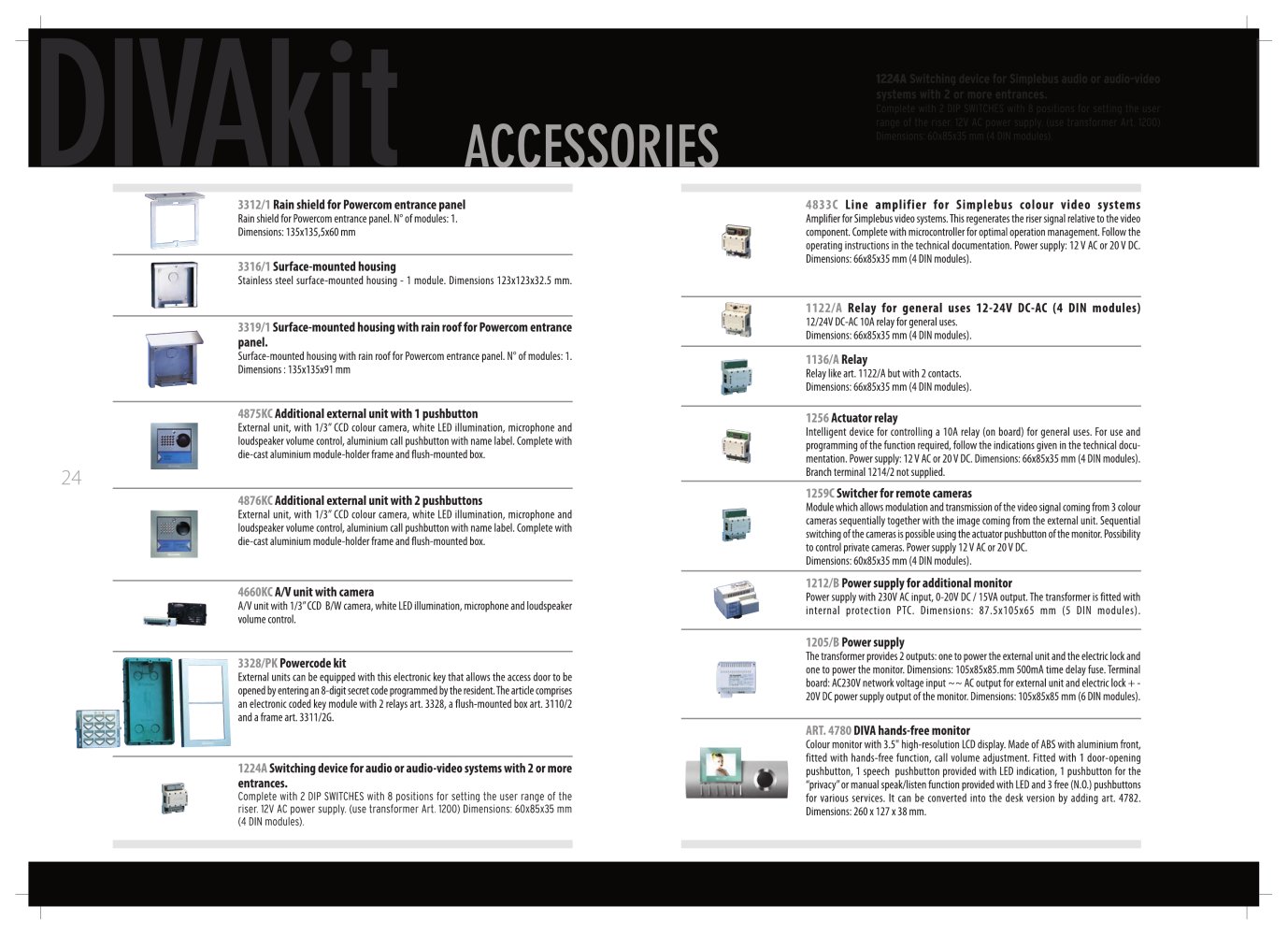

| DIVAkit | |||||||||
| ORMES | |||||||||
| 3312/1 Rain shield for Powercom entrance panel Rain shield for Powercom entrance panel. № of modules: 1. Dimensions: 135x135.5x60 mm | 4833C Line amplifier for Simplebus colour video systems Amplifier for Simplebus video systems. This regenerates the riser signal relative to the video component. Complete with microcontroller for optimal operation management. Follow the operating instructions in the technical documentation. Power supply: 12 V AC or 20 V DC. Dimensions: 66x85x35 mm (4 DIN modules). | ||||||||
| a | |||||||||
| 3316/1 Surface-mounted housing Stainless steel surface-mounted housing -1 module. Dimensions 123x123x32.5 mm. | |||||||||
| 1122/A Relay for general uses 12-24V DC-AC (4 DIN modules) 12/24V DC-AC 10A relay for general uses. Dimensions: 66x85x35 mm (4 DIN modules). 1136/A Relay Relay like art. 1122/A but with 2 contacts. Dimensions: 66x85x35 mm (4 DIN modules). | |||||||||
| 1. I | |||||||||
| 3319/1 Surface-mounted housing with rain roof for Powercom entrance panel. Surface-mounted housing with rain roof for Powercom entrance panel. № of modules: 1. Dimensions: 135x135x91 mm | |||||||||
| Si | |||||||||
| 4875KC Additional external unit with 1 pushbutton External unit, with 1/3" CCD colour camera, white LED illumination, microphone and loudspeaker volume control, aluminium call pushbutton with name label. Complete with die-cast aluminium module-holder frame and flush-mounted box. | |||||||||
| 1256 Actuator relay Intelligent device for controlling a 10A relay (on board) for general uses. For use and programming of the function required, follow the indications given in the technical documentation. Power supply: 12 V AC or 20 V DC. Dimensions: 66x85x35 mm (4 DIN modules). Branch terminal 1214/2 not supplied. 12S9C Switcher for remote cameras Module which allows modulation and transmission of the video signal coming from 3 colour cameras sequentially together with the image coming from the external unit. Sequential switching of the cameras is possible using the actuator pushbutton of the monitor. Possibility to control private cameras. Power supply 12 V AC or 20 V DC. Dimensions: 60x85x35 mm (4 DIN modules). 1212/B Power supply for additional monitor Power supply with 230V AC input, 0-20V DC / 15VA output. The transformer is fitted with internal protection PTC. Dimensions: 87.5x105x65 mm (5 DIN modules). | |||||||||
| 4876KC Additional external unit with 2 pushbuttons External unit, with 1/3" CCD colour camera, white LED illumination, microphone and loudspeaker volume control, aluminium call pushbutton with name label. Complete with die-cast aluminium module-holder frame and flush-mounted box. | |||||||||
| Ii ». , ': ' | |||||||||
| 4660KC A/V unit with camera A/V unit with 1/3" CCD B/W camera, white LED illumination, microphone and loudspeaker volume control. | |||||||||
| 1205/B Power supply The transformer provides 2 outputs: one to power the external unit and the electric lock and one to power the monitor. Dimensions: 105x85x85.mm 500mA time delay fuse. Terminal board: AC230V network voltage input — AC output for external unit and electric lock+-20V DC power supply output of the monitor. Dimensions: 105x85x85 mm (6 DIN modules). | |||||||||
| 3328/PKPowercodekit External units can be equipped with this electronic key that allows the access door to be opened by entering an 8-digit secret code programmed by the resident. The article comprises an electronic coded key module with 2 relays art. 3328, a flush-mounted box art. 3110/2 and a frame art. 3311/2G. | |||||||||
| ART. 4780 DIVA hands-free monitor Colour monitor with 3.5" high-resolution LCD display. Made of ABS with aluminium front, fitted with hands-free function, call volume adjustment. Fitted with 1 door-opening pushbutton, 1 speech pushbutton provided with LED indication, 1 pushbutton for the "privacy"or manual speak/listen function provided with LED and 3 free (N.O.) pushbuttons for various services. It can be converted into the desk version by adding art. 4782. Dimensions: 260 x 127 x 38 mm. | |||||||||
| Mm. | |||||||||
| 1224A Switching device for audio or audio-video systems with 2 or more entrances. Complete with 2 DIP SWITCHES with 8 positions for setting the user range of the riser. 1ZV AC power supply, (use transformer Art. 1200) Dimensions: 60x85x35 mm (4 DIN modules). | |||||||||
-
