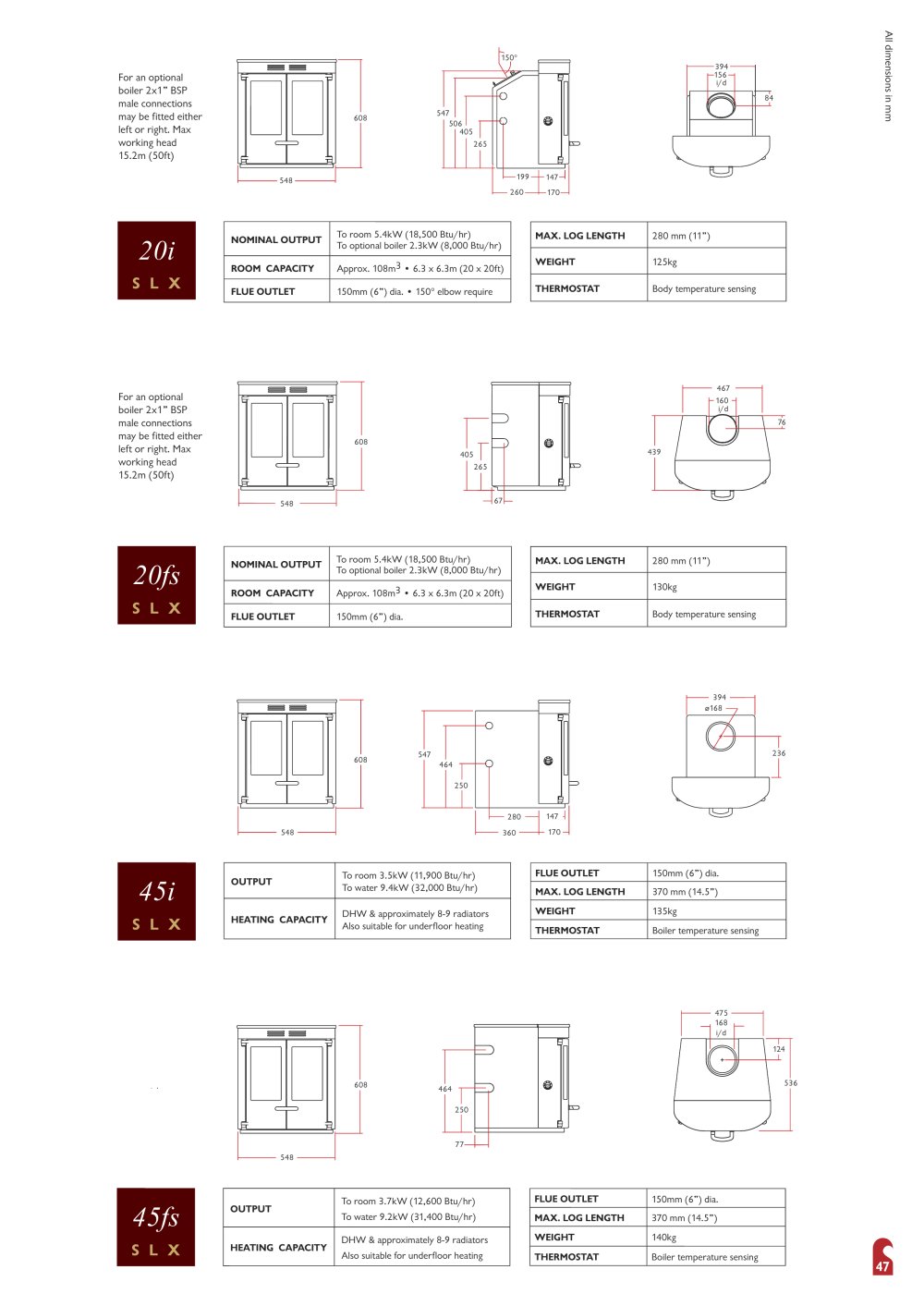

20i

NOMINAL OUTPUT To room 5.4kW (18,500 Btu/hr) To optional boiler 2.3kW (8,000 Btu/hr) MAX. LOG LENGTH 280 mm (11”) ROOM CAPACITY Approx. 108m3 • 6.3 x 6.3m (20 x 20ft) WEIGHT 125kg

S L X

FLUE OUTLET 150mm (6”) dia. • 150° elbow require THERMOSTAT Body temperature sensing
467439160i/d76

For an optional boiler 2x1” BSP male connections may be fitted either left or right. Max working head 15.2m (50ft)

608548 4 3 2 5 1 40526567

20fs

NOMINAL OUTPUT To room 5.4kW (18,500 Btu/hr) To optional boiler 2.3kW (8,000 Btu/hr) MAX. LOG LENGTH 280 mm (11”) ROOM CAPACITY Approx. 108m3 • 6.3 x 6.3m (20 x 20ft) WEIGHT 130kg

S L X

FLUE OUTLET 150mm (6”) dia. THERMOSTAT Body temperature sensing
394236ø168 4 3 2 5 1 548608 170147547250464280360

FLUE OUTLET 150mm (6”) dia.

45i

OUTPUT To room 3.5kW (11,900 Btu/hr) To water 9.4kW (32,000 Btu/hr) MAX. LOG LENGTH 370 mm (14.5”) WEIGHT 135kg

S L X

HEATING CAPACITY DHW & approximately 8-9 radiators Also suitable for underfloor heating THERMOSTAT Boiler temperature sensing

475168i/d536124 4 3 2 5 1 25046477 548608

To room 3.7kW (12,600 Btu/hr) To water 9.2kW (31,400 Btu/hr) FLUE OUTLET 150mm (6”) dia.

45fs

OUTPUT MAX. LOG LENGTH 370 mm (14.5”)

S L X

DHW & approximately 8-9 radiators Also suitable for underfloor heating WEIGHT 140kg HEATING CAPACITY THERMOSTAT Boiler temperature sensing

47
