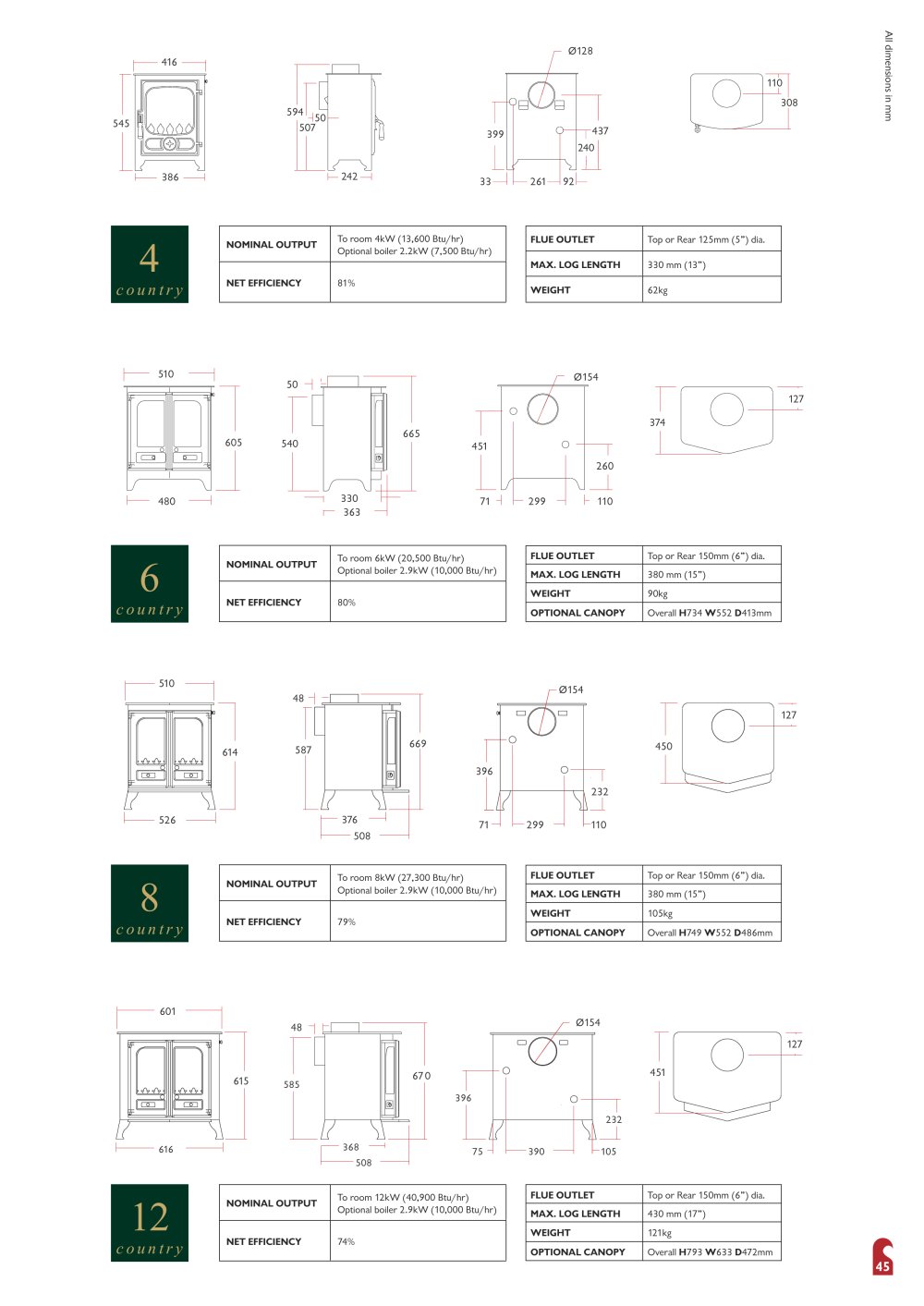

country

4

NOMINAL OUTPUT To room 4kW (13,600 Btu/hr) Optional boiler 2.2kW (7,500 Btu/hr) FLUE OUTLET Top or Rear 125mm (5”) dia. MAX. LOG LENGTH 330 mm (13”) NET EFFICIENCY 81% WEIGHT 62kg

510 480605 Ø15445171110260299

374127

33036354066550

FLUE OUTLET Top or Rear 150mm (6”) dia.

country

6

NOMINAL OUTPUT To room 6kW (20,500 Btu/hr) Optional boiler 2.9kW (10,000 Btu/hr) MAX. LOG LENGTH 380 mm (15”) WEIGHT 90kg NET EFFICIENCY 80% OPTIONAL CANOPY Overall H 734 W 552 D 413mm

510614526 127 450 23271299110 Ø154396 50837658748669

FLUE OUTLET Top or Rear 150mm (6”) dia.

country

8

NOMINAL OUTPUT To room 8kW (27,300 Btu/hr) Optional boiler 2.9kW (10,000 Btu/hr) MAX. LOG LENGTH 380 mm (15”) WEIGHT 105kg NET EFFICIENCY 79% OPTIONAL CANOPY Overall H 749 W 552 D 486mm

48670 Ø154

127 451

615601 39623275390105 616 508585368

FLUE OUTLET Top or Rear 150mm (6”) dia.

country

12

NOMINAL OUTPUT To room 12kW (40,900 Btu/hr) Optional boiler 2.9kW (10,000 Btu/hr) MAX. LOG LENGTH 430 mm (17”) WEIGHT 121kg NET EFFICIENCY 74% OPTIONAL CANOPY Overall H 793 W 633 D 472mm

45
