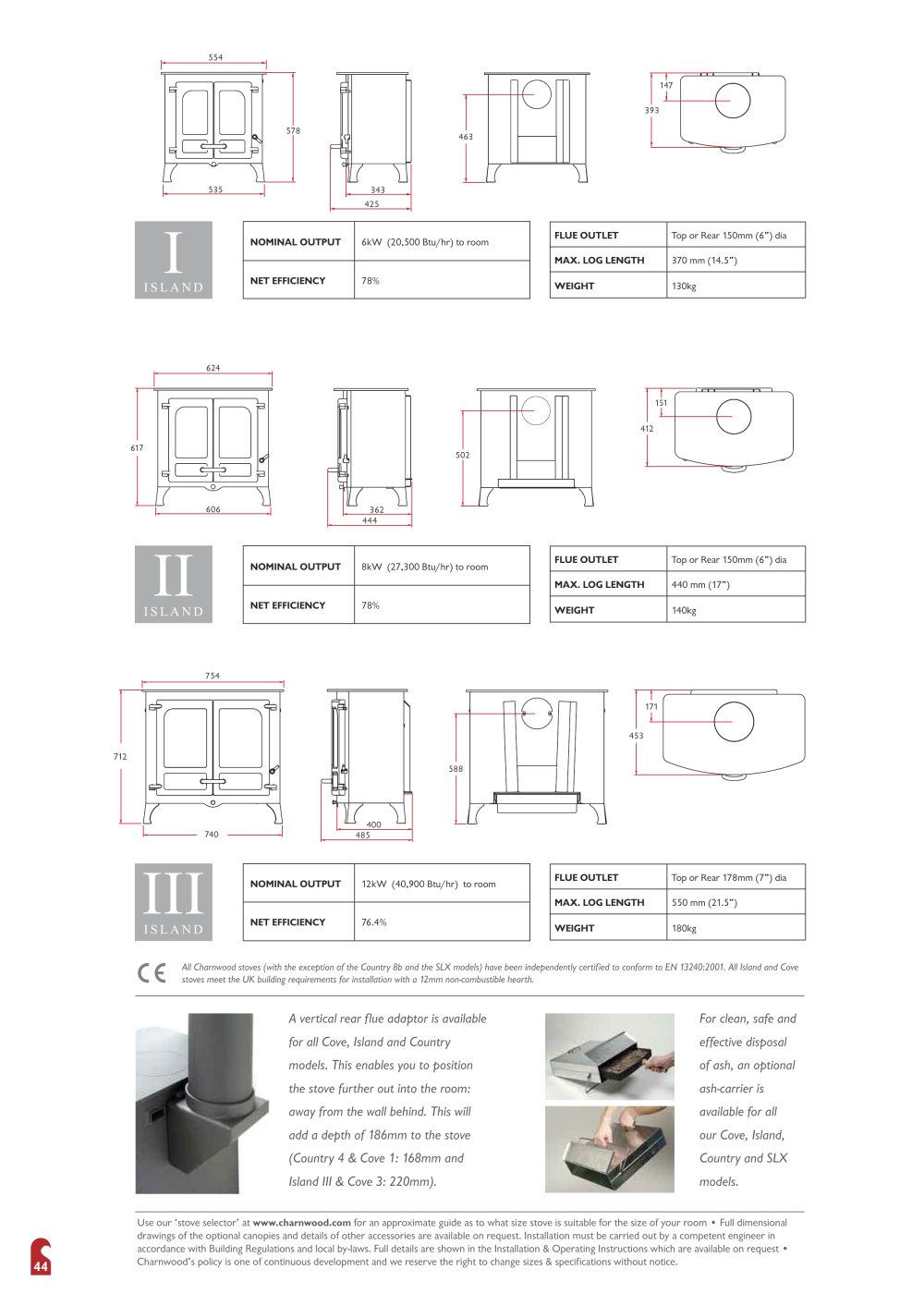

I

NOMINAL OUTPUT 6kW (20,500 Btu/hr) to room FLUE OUTLET Top or Rear 150mm (6”) dia MAX. LOG LENGTH 370 mm (14.5”) NET EFFICIENCY 78% WEIGHT 130kg
624617606 151412 502 362444

ISLAND

II

NOMINAL OUTPUT 8kW (27,300 Btu/hr) to room FLUE OUTLET Top or Rear 150mm (6”) dia MAX. LOG LENGTH 440 mm (17”) NET EFFICIENCY 78% WEIGHT 140kg
453171 588 400485 740712754

III

NOMINAL OUTPUT 12kW (40,900 Btu/hr) to room FLUE OUTLET Top or Rear 178mm (7”) dia MAX. LOG LENGTH 550 mm (21.5”)

ISLAND

NET EFFICIENCY 76.4% WEIGHT 180kg All Charnwood stoves (with the exception of the Country 8b and the SLX models) have been independently certified to conform to EN 13240:2001. All Island and Cove stoves meet the UK building requirements for installation with a 12mm non-combustible hearth.

For clean, safe and effective disposal of ash, an optional ash-carrier is available for all our Cove, Island, Country and SLX models. A vertical rear flue adaptor is available for all Cove, Island and Country models. This enables you to position the stove further out into the room: away from the wall behind. This will add a depth of 186mm to the stove (Country 4 & Cove 1: 168mm and Island III & Cove 3: 220mm).

Use our ‘stove selector’ at www.charnwood.com for an approximate guide as to what size stove is suitable for the size of your room • Full dimensional drawings of the optional canopies and details of other accessories are available on request. Installation must be carried out by a competent engineer in accordance with Building Regulations and local by-laws. Full details are shown in the Installation & Operating Instructions which are available on request • Charnwood’s policy is one of continuous development and we reserve the right to change sizes & specifications without notice.

44
