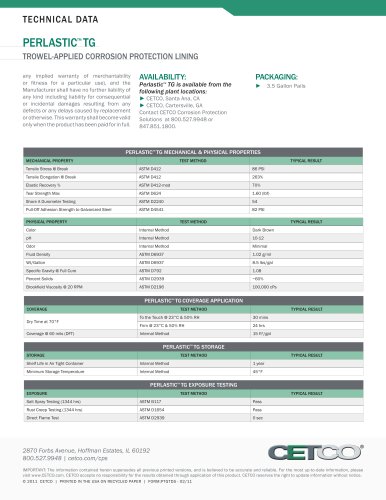

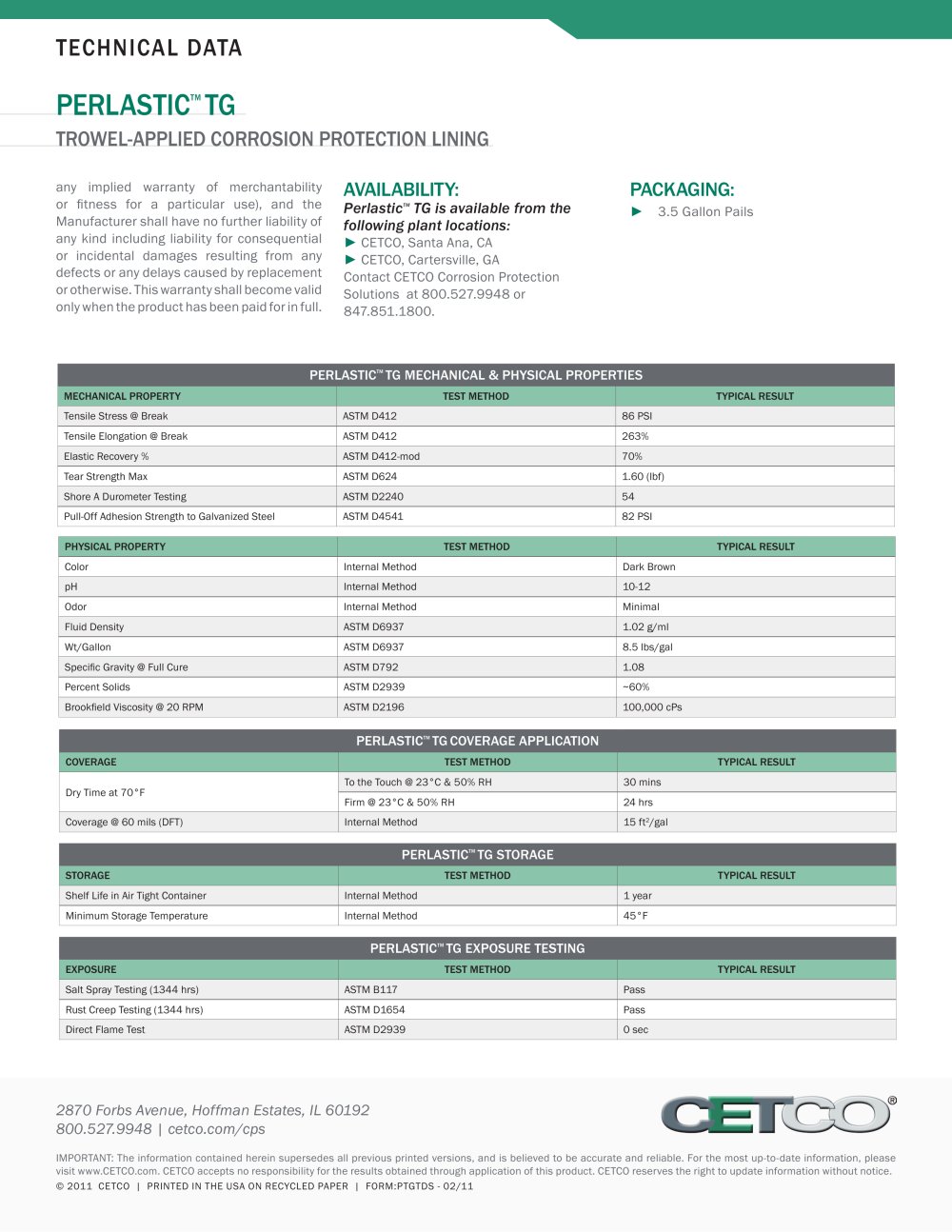

TECHNICAL DATA
PERLASTICTM TG
TROWEL-APPLIED CORROSION PROTECTION LINING
any implied warranty of merchantability
or .tness for a particular use), and the
Manufacturer shall have no further liability of
any kind including liability for consequential
or incidental damages resulting from any
defects or any delays caused by replacement
or otherwise. This warranty shall become valid
only when the product has been paid for in full.
AVAILABILITY:
PerlasticTM TG is available from the
following plant locations:
. CETCO, Santa Ana, CA
. CETCO, Cartersville, GA
Contact CETCO Corrosion Protection
Solutions at 800.527.9948 or
847.851.1800.
PACKAGING:
.. 3.5 Gallon Pails
PERLASTICTM TG MECHANICAL & PHYSICAL PROPERTIES
MECHANICAL PROPERTY TEST METHOD TYPICAL RESULT
Tensile Stress @ Break ASTM D412 86 PSI
Tensile Elongation @ Break ASTM D412 263%
Elastic Recovery % ASTM D412-mod 70%
Tear Strength Max ASTM D624 1.60 (lbf)
Shore A Durometer Testing ASTM D2240 54
Pull-Off Adhesion Strength to Galvanized Steel ASTM D4541 82 PSI
PHYSICAL PROPERTY TEST METHOD TYPICAL RESULT
Color Internal Method Dark Brown
pH Internal Method 10-12
Odor Internal Method Minimal
Fluid Density ASTM D6937 1.02 g/ml
Wt/Gallon ASTM D6937 8.5 lbs/gal
Specific Gravity @ Full Cure ASTM D792 1.08
Percent Solids ASTM D2939 ~60%
Brookfield Viscosity @ 20 RPM ASTM D2196 100,000 cPs
PERLASTICTM TG COVERAGE APPLICATION
COVERAGE TEST METHOD TYPICAL RESULT
Dry Time at 70°F
To the Touch @ 23°C & 50% RH 30 mins
Firm @ 23°C & 50% RH 24 hrs
Coverage @ 60 mils (DFT) Internal Method 15 ft2/gal
PERLASTICTM TG STORAGE
STORAGE TEST METHOD TYPICAL RESULT
Shelf Life in Air Tight Container Internal Method 1 year
Minimum Storage Temperature Internal Method 45°F
PERLASTICTM TG EXPOSURE TESTING
EXPOSURE TEST METHOD TYPICAL RESULT
Salt Spray Testing (1344 hrs) ASTM B117 Pass
Rust Creep Testing (1344 hrs) ASTM D1654 Pass
Direct Flame Test ASTM D2939 0 sec
