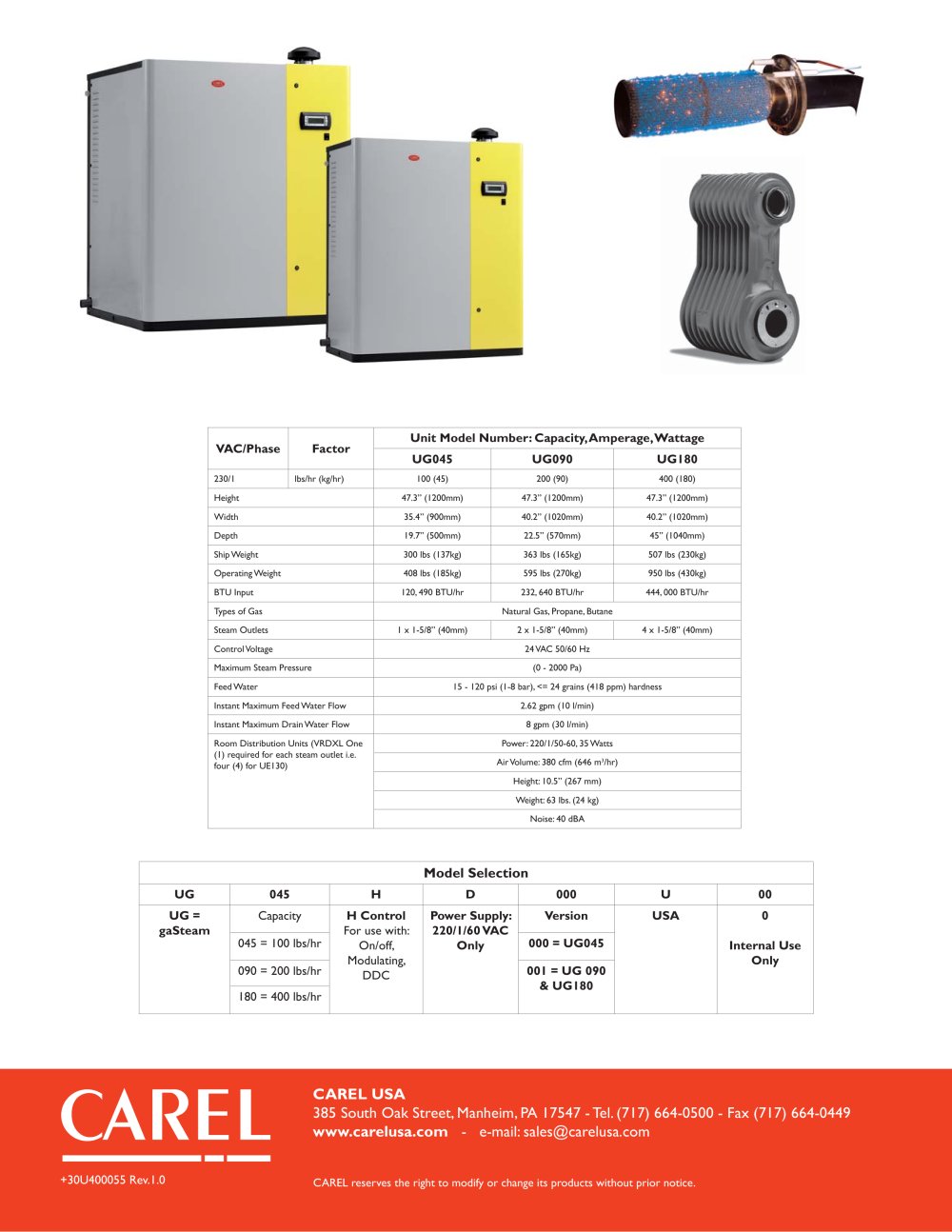

VAC/PhaseFactorUnit Model Number: Capacity, Amperage, WattageUG045UG090UG180
230/1lbs/hr (kg/hr)100 (45)200 (90)400 (180)Height47.3” (1200mm)47.3” (1200mm)47.3” (1200mm)Width35.4” (900mm)40.2” (1020mm)40.2” (1020mm)Depth19.7” (500mm)22.5” (570mm)45” (1040mm)Ship Weight300 lbs (137kg)363 lbs (165kg)507 lbs (230kg)Operating Weight408 lbs (185kg)595 lbs (270kg)950 lbs (430kg)BTU Input120, 490 BTU/hr232, 640 BTU/hr444, 000 BTU/hrTypes of GasNatural Gas, Propane, ButaneSteam Outlets1 x 1-5/8” (40mm)2 x 1-5/8” (40mm)4 x 1-5/8” (40mm)Control Voltage24 VAC 50/60 HzMaximum Steam Pressure(0 - 2000 Pa)Feed Water15 - 120 psi (1-8 bar), <= 24 grains (418 ppm) hardnessInstant Maximum Feed Water Flow2.62 gpm (10 l/min)Instant Maximum Drain Water Flow8 gpm (30 l/min)Room Distribution Units (VRDXL One (1) required for each steam outlet i.e. four (4) for UE130)Power: 220/1/50-60, 35 WattsAir Volume: 380 cfm (646 m 3 /hr)Height: 10.5” (267 mm)Weight: 63 lbs. (24 kg)Noise: 40 dBA

Model Selection

UG045HD000U00UG = gaSteam Capacity H Control Power Supply:220/1/60 VAC OnlyVersionUSA0Internal Use Only For use with: On/off, Modulating, DDC 045 = 100 lbs/hr 000 = UG045 090 = 200 lbs/hr 001 = UG 090 & UG180 180 = 400 lbs/hr

CAREL USA www.carelusa.com - e-mail: sales@carelusa.com 385 South Oak Street, Manheim, PA 17547 - Tel. (717) 664-0500 - Fax (717) 664-0449

+30U400055 Rev.1.0
CAREL reserves the right to modify or change its products without prior notice.
