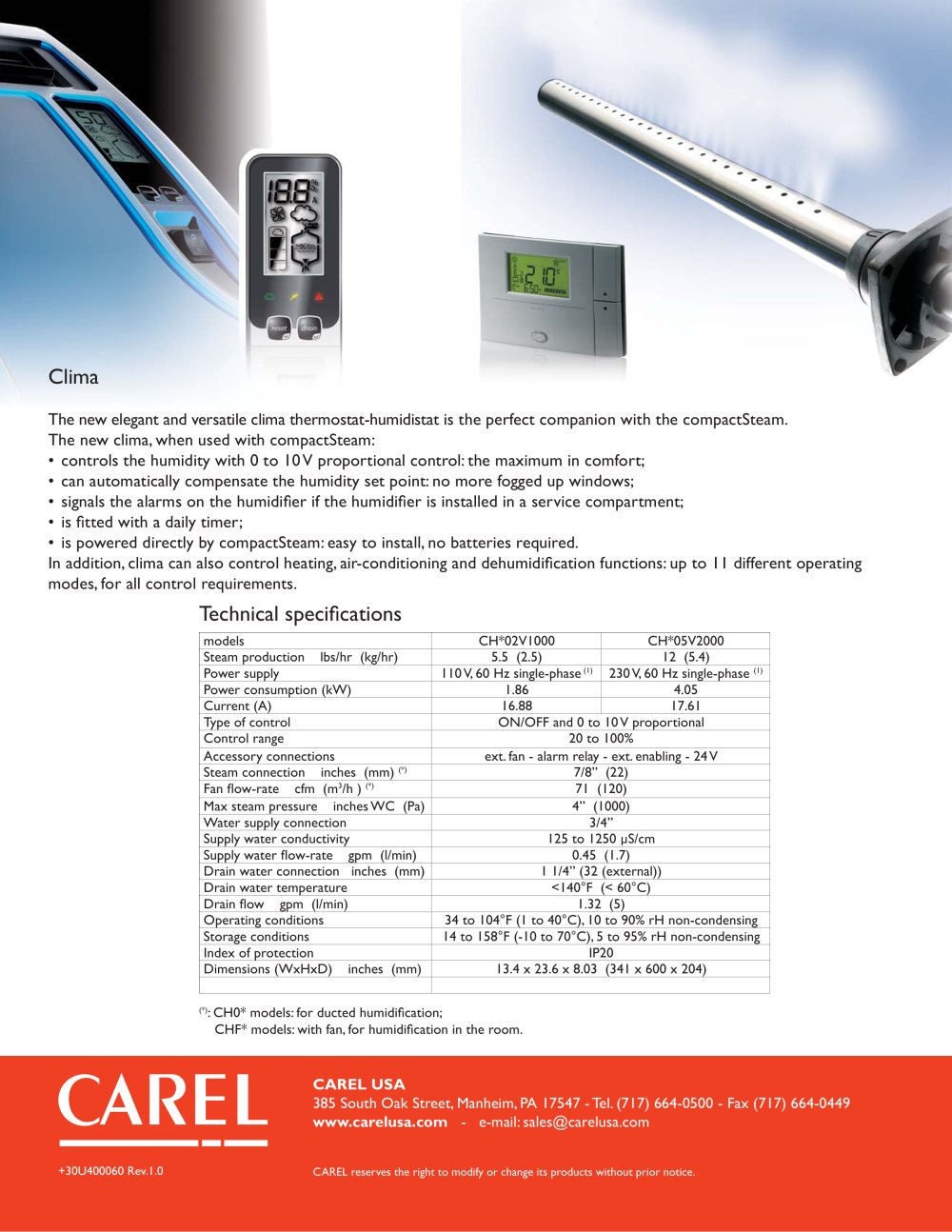

| | models | CH*02VI000 | CH*05V2000 | |
| | Steam production lbs/hr (kg/hr) | 5.5 (2.5) | 12 (5.4) | |
| | Power supply | 110 V 60 Hz single-phase (I) | 230 V 60 Hz single-phase (l) | |
| | Power consumption (kW) | 1.86 | 4.05 | |
| | Current (A) | 16.88 | 17.61 | |
| | Type of control | ON/OFF and 0 to 10 V proportional | |
| | Control range | 20 to 100% | |
| | Accessory connections | | |
| | Steam connection inches (mm) (*) | 7/8" (22) | |
| | Fan flow-rate cfm (m3/h ) (*) | 71 (120) | |
| | Max steam pressure inches WC (Pa) | 4" (1000) | |
| | Water supply connection | 3/4" | |
| | Supply water conductivity | 125 to 1250 |jS/cm | |
| | Supply water flow-rate gpm (l/min) | 0.45 (1.7) | |
| | Drain water connection inches (mm) | 1 1/4" (32 (external)) | |
| | Drain water temperature | <I40°F (< 60°C) | |
| | Drain flow gpm (l/min) | 1.32 (5) | |
| | Operating conditions | 34 to I04°F (1 to 40°C), 10 to 90% rH non-condensing | |
| | | 14 to I58°F (-10 to 70°C), 5 to 95% rH non-condensing | |
| | Index of protection | IP20 | |
| | Dimensions (WxHxD) inches (mm) | 13.4 x 23.6 x 8.03 (341 x 600 x 204) | |
| | | | |
| | | | | |
