Vacuum tube collector with parabolic reflector Vacuum tube collector with parabolic reflector

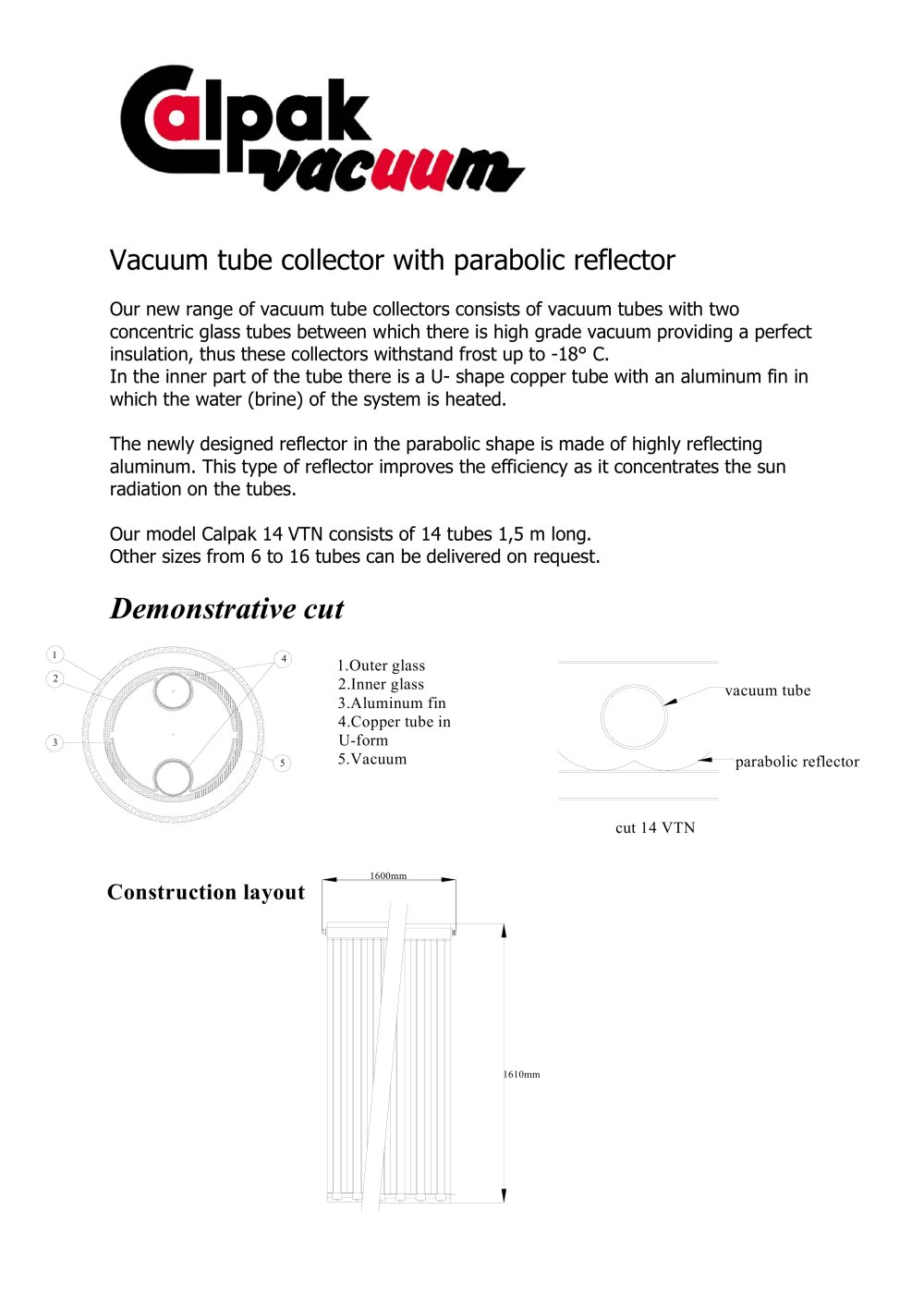

Vacuum tube collector with parabolic reflector Vacuum tube collector with parabolic reflector Vacuum tube collector with parabolic reflector Our new range of vacuum tube collectors consists of vacuum tubes with two concentric glass tubes between which there is high grade vacuum providing a perfect insulation, thus these collectors withstand frost up to -18° C. In the inner part of the tube there is a U- shape copper tube with an aluminum fin in which the water (brine) of the system is heated. The newly designed reflector in the parabolic shape is made of highly reflecting aluminum. This type of reflector improves the efficiency as it concentrates the sun radiation on the tubes. Our model Calpak 14 VTN consists of 14 tubes 1,5 m long. Other sizes from 6 to 16 tubes can be delivered on request. Our new range of vacuum tube collectors consists of vacuum tubes with two concentric glass tubes between which there is high grade vacuum providing a perfect insulation, thus these collectors withstand frost up to -18° C. In the inner part of the tube there is a U- shape copper tube with an aluminum fin in which the water (brine) of the system is heated. The newly designed reflector in the parabolic shape is made of highly reflecting aluminum. This type of reflector improves the efficiency as it concentrates the sun radiation on the tubes. Our model Calpak 14 VTN consists of 14 tubes 1,5 m long. Other sizes from 6 to 16 tubes can be delivered on request.

Our new range of vacuum tube collectors consists of vacuum tubes with two concentric glass tubes between which there is high grade vacuum providing a perfect insulation, thus these collectors withstand frost up to -18° C. In the inner part of the tube there is a U- shape copper tube with an aluminum fin in which the water (brine) of the system is heated. The newly designed reflector in the parabolic shape is made of highly reflecting aluminum. This type of reflector improves the efficiency as it concentrates the sun radiation on the tubes. Our model Calpak 14 VTN consists of 14 tubes 1,5 m long. Other sizes from 6 to 16 tubes can be delivered on request. Our new range of vacuum tube collectors consists of vacuum tubes with two concentric glass tubes between which there is high grade vacuum providing a perfect insulation, thus these collectors withstand frost up to -18° C. In the inner part of the tube there is a U- shape copper tube with an aluminum fin in which the water (brine) of the system is heated. The newly designed reflector in the parabolic shape is made of highly reflecting aluminum. This type of reflector improves the efficiency as it concentrates the sun radiation on the tubes. Our model Calpak 14 VTN consists of 14 tubes 1,5 m long. Other sizes from 6 to 16 tubes can be delivered on request. Our new range of vacuum tube collectors consists of vacuum tubes with two concentric glass tubes between which there is high grade vacuum providing a perfect insulation, thus these collectors withstand frost up to -18° C. In the inner part of the tube there is a U- shape copper tube with an aluminum fin in which the water (brine) of the system is heated. The newly designed reflector in the parabolic shape is made of highly reflecting aluminum. This type of reflector improves the efficiency as it concentrates the sun radiation on the tubes. Our model Calpak 14 VTN consists of 14 tubes 1,5 m long. Other sizes from 6 to 16 tubes can be delivered on request. Demonstrative cut Demonstrative cut Demonstrative cut Demonstrative cut Demonstrative cut

21 21

21 21 21 1.Outer glass2.Inner glass3.Aluminum fin4.Copper tube in U-form5.Vacuum 1.Outer glass2.Inner glass3.Aluminum fin4.Copper tube in U-form5.Vacuum

1.Outer glass2.Inner glass3.Aluminum fin4.Copper tube in U-form5.Vacuum 1.Outer glass2.Inner glass3.Aluminum fin4.Copper tube in U-form5.Vacuum 1.Outer glass2.Inner glass3.Aluminum fin4.Copper tube in U-form5.Vacuum 3 3 3 3 3 5 4 5 4

5 4 5 4 5 4 parabolic reflectorvacuum tube parabolic reflectorvacuum tube parabolic reflectorvacuum tube parabolic reflectorvacuum tube parabolic reflectorvacuum tube cut 14 VTN cut 14 VTN

cut 14 VTN cut 14 VTN cut 14 VTN 1600mm 1600mm

1600mm 1600mm 1600mm Construction layout Construction layout

Construction layout Construction layout Construction layout 1610mm 1610mm

1610mm 1610mm 1610mm
