1 -

0,9 -

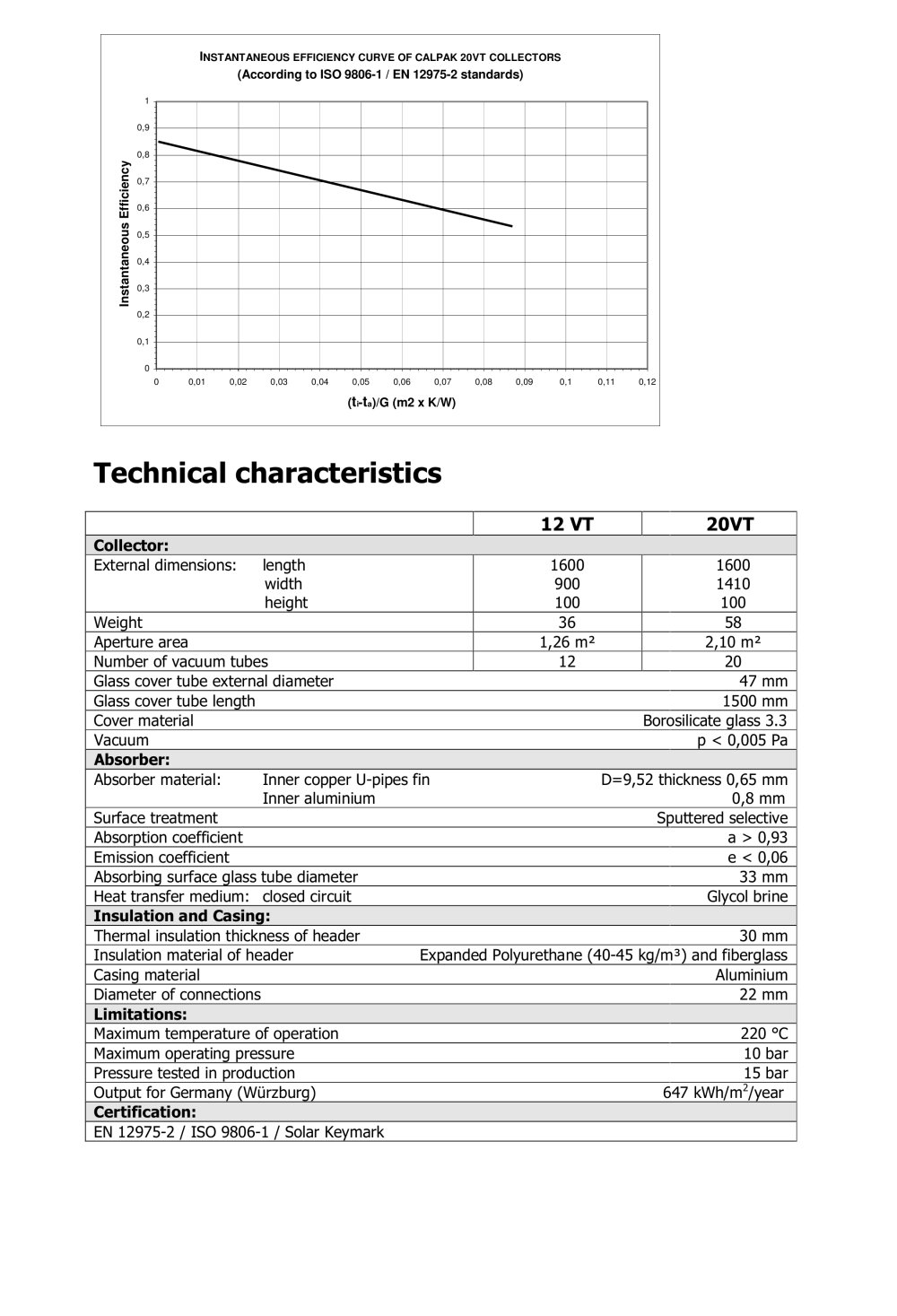

INSTAN

TANEOl Accor(

JS EFFK ding to

ÎIENCY ISO 98(

CURVE C 56-1 / E

)F CALP N 1297!

AK 20V1 5-2 stan

COLLE dards)

CTORS

=» ' ^c ₀ 7

0) ^0,7 Ö

*}~ 0 6

UJ

i^0,5 -

<u

« 0,4 -

c m

S> ^0,3 -c

0,2 -0,1 -

) 0,01 0,02 0,03 0,04 0,05 0,06 0,07 0,08 0,09 0,1 0,11 0,12

(ti-ta)/G (m2 x K/W)

Collector:

External dimensions: length

1600

1600

width

900

1410

height

100

100

Weight

36

58

Aperture area

1,26 m²

2,10 m2

Number of vacuum tubes

12

20

Glass cover tube external diameter

47 mm

Glass cover tube length

1500 mm

Cover material

Borosilicate glass 3.3

Vacuum

p < 0,005 Pa

Absorber:

Absorber material: Inner copper U-pipes fin

D=9,52 thickness 0,65 mm

Inner aluminium

0,8 mm

Surface treatment

Sputtered selective

Absorption coefficient

a > 0,93

Emission coefficient

e < 0,06

Absorbing surface glass tube diameter

33 mm

Heat transfer medium: closed circuit

Glycol brine

Insulation and Casing:

Thermal insulation thickness of header

30 mm

Insulation material of header

Expanded Polyurethane (40-45 kg/m³) and fiberglass

Casing material

Aluminium

Diameter of connections

22 mm

Limitations:

Maximum temperature of operation

220 °C

Maximum operating pressure

10 bar

Pressure tested in production

15 bar

Output for Germany (Würzburg)

647 kWh/m²/year

Certification:

EN 12975-2 / ISO 9806-1 / Solar Keymark
