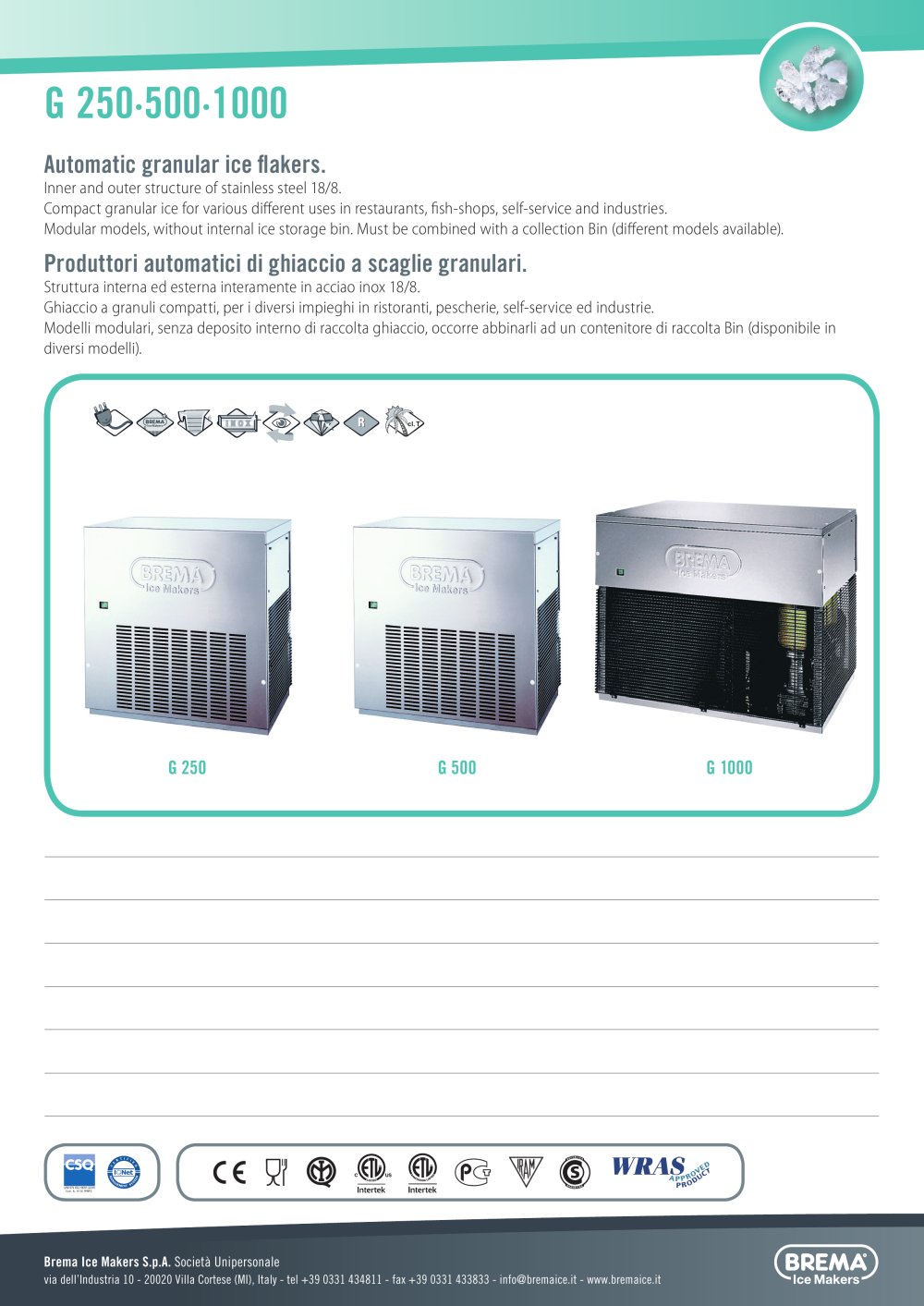

G 250·500·1000

470 mm 470 mm 684 mm 640 mm 640 mm 934 mm

H H

H

700 mm

L

700 mm

L

700 mm

L

P

P P

7 6 1 1 1 2 2 2 5 4 3 4 3 3 4

G 250G 500G 1000

CONNECTIONS / CONNESSIONIG 250G 500G 1000

➀

Ice production water inlet / Ingresso acqua produz. ghiaccio 1162823/4”1162823/4”3721873/4”

�

Condenser water inlet / Ingresso acqua per condensatore *842383/4”842383/4”3721203/4”

âž‚

Water outlet / Scarico acqua 3422824 mm3422824 mm3376024 mm

➃

Electrical connection / Connessione elettrica 58292-58292-358257-

âž„

Condenser water outlet / Scarico acqua condensatore *------3826012 mm

âž…

Remote connection / Collegamento remoto ------399257-

➆

Connection to DRB 500 / Collegamento a DRB 500 ------434257-* only for water cooling systems / solo per condensazione ad acqua TECHNICAL INFORMATION / DATI TECNICIG 250G 500G 1000 Production in 24 h, till / Produzione in 24 h, sino a 250 kg500 kg1000 kg Cooling system / Condensazione A - WA - WA - W Refrigerant / Refrigerante R404AR404AR404A Usable Bin / Bin utilizzabile Bin 240 PE- Bin 200 - Bin 350 - Bin 550 V DSRB 100 - DRB 100 - DRB 500Bin 240 PE - Bin 200 - Bin 350 - Bin 550 V DSRB 100 - DRB 100 - DRB 500Bin 550 V DS - DRB 500 Standard voltage / Voltaggio standard 220-240 V ~ 50 Hz220-240 V ~ 50 Hz400-415 V 3N ~ 50 Hz Electrical consumption / Consumo elettrico 1050 W1700 W3200 W Fuse / Fusibile 16 A16 A16 A Water consumption (l/kg) / Consumo acqua (l/kg) A 1 W 5,2A 1 W 5,3A 1 W 5,3 Sizes (WxDxH) / Dimensioni [ LxPxH ] 640x470x700 mm640x470x700 mm934x684x700 mm Sizes with packing (WxDxH) / Dimensioni con imballo [ LxPxH ] 695x540x940 mm695x540x940 mm995x765x890 mm Weight (net/gross) / Peso [ netto/lordo ] 82/93 kg104/113 kg172/195 kg Finishing 18/8 stainless steel, scotch brite / Finitura acciaio inox 18/8, scotch brite INSTALLATION CONDITIONS / CONDIZIONI D’INSTALLAZIONEMin / Max CONDITIONS / CONDIZIONI Installation / Installazione indoor / interna Ambient temperature / Temperatura ambiente +21°C Ambient temperature / Temperatura ambiente +10 / +43 °C Water temperature / Temperatura acqua +15°C Water temperature / Temperatura acqua +3 / +32 °C Electrical consumption at +43°C (standard voltage) / Consumo elettrico a +43°C (voltaggio standard) Voltage / Voltaggio ± 10% Water inlet pressure / Pressione dell’acqua in ingresso 1bar (14psi) / 6bar (84psi)
