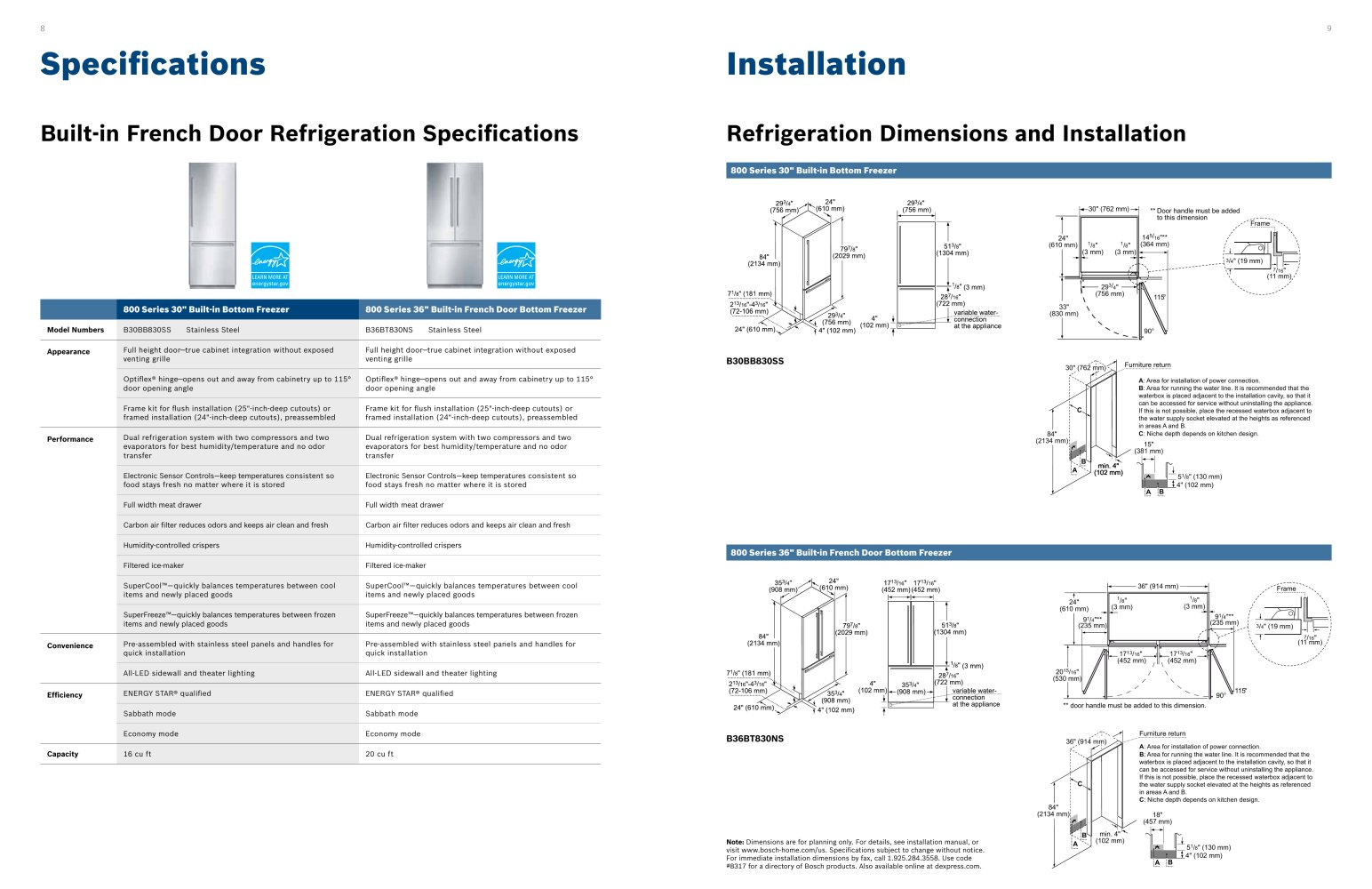

Built-In Refrigeration Brochure - 7 Pages
Specifications
Built-in French Door Refrigeration Specifications
LEARN MORE AT
energystar.gov
LEARN MORE AT
energystar.gov
800 Series 30" Built-in Bottom Freezer | 800 Series 36" Built-in French Door Bottom Freezer | |
Model Numbers | B30BB830SS Stainless Steel | B36BT830NS Stainless Steel |
Appearance | Full height door—true cabinet Integration without exposed venting grille | Full height door—true cabinet Integration without exposed venting grille |
Optlflex® hinge-opens out and away from cabinetry up to 115° door opening angle | Optlflex® hinge-opens out and away from cabinetry up to 115° door opening angle | |
Frame kit for flush Installation (25"-lnch-deep cutouts) or framed Installation (24"-lnch-deep cutouts), preassembled | Frame kit for flush Installation (25"-lnch-deep cutouts) or framed Installation (24"-lnch-deep cutouts), preassembled | |
Performance | Dual refrigeration system with two compressors and two evaporators for best humidity/temperature and no odor transfer | Dual refrigeration system with two compressors and two evaporators for best humidity/temperature and no odor transfer |
Electronic Sensor Controls—keep temperatures consistent so food stays fresh no matter where It Is stored | Electronic Sensor Controls—keep temperatures consistent so food stays fresh no matter where It Is stored | |
Full width meat drawer | Full width meat drawer | |
Carbon air filter reduces odors and keeps air clean and fresh | Carbon air filter reduces odors and keeps air clean and fresh | |
Humidity-controlled crlspers | Humidity-controlled crlspers | |
Filtered Ice-maker | Filtered Ice-maker | |
SuperCool™—quickly balances temperatures between cool Items and newly placed goods | SuperCool™—quickly balances temperatures between cool Items and newly placed goods | |
SuperFreeze™—quickly balances temperatures between frozen Items and newly placed goods | Su perFreeze™—quickly balances temperatures between frozen Items and newly placed goods | |
Convenience | Pre-assembled with stainless steel panels and handles for quick Installation | Pre-assembled with stainless steel panels and handles for quick Installation |
All-LED sldewall and theater lighting | All-LED sldewall and theater lighting | |
Efficiency | ENERGY STAR® qualified | ENERGY STAR® qualified |
Sabbath mode | Sabbath mode | |
Economy mode | Economy mode | |
Capacity | 16 cu ft | 20 cu ft |
9
Installation
Refrigeration Dimensions and Installation
800 Series 30" Built-in Bottom Freezer
293/4"
(756 mm;
293/4"
(756 mm)
24" (610 mm)
293/4" 4. I
(756 mm) (102mm)i
4" (102 mm) v 'j
24"
(610 mm)
j 78" (3 mm)
287/l6"
(722 mm)
variable water-
it connection
at the appliance
-30" (762 mm)-
(3 mm) (3 mm)
— 293'4" —
(756 mm)
* Door handle must be added
to this dimension „______
Frame
145'l6"**
(364 mm)
33" \
(830 mm) N
;3/4- (19 mm)
7/16" ;
(11 mm)/
B30BB830SS
30" (762 mm)<
Furniture return
A: Area for installation of power connection.
B: Area for running the water line. It is recommended that the
waterbox is placed adjacent to the installation cavity, so that it
can be accessed for service without uninstalling the appliance.
If this is not possible, place the recessed waterbox adjacent to
the water supply socket elevated at the heights as referenced
in areas A and B.
C: Niche depth depends on kitchen design.
15"
(381 mm)
l-'l
IA ;B
_^5Vs" (130 mm)
".4" (102 mm)
800 Series 36" Built-in French Door Bottom Freezer
24" (610 mm)
1713/16" 1713/16"
(452 mm) (452 mm)
36" (914 mm) -
797/s"
(2029 mm)
4"
353/4" (102mm)
(908 mm) A
4" (102 mm) J
513/8"
(1304 mm)
353/4"
■•-(908 mm;
=P/8" (3 mm)
287/16"
(722 mm)
I yariabje.water:
....... T connection
at the appliance
(235 mm) I ,,„,.,„ ,
v ' A 3/4" (19 mm)
L_ 1713/16"-JL—171:
(452 mm) || (452
(11 mm)
3/16" _
(452 mm)
* door handle must be added to this dimension.
B36BT830NS
Note: Dimensions are for planning only. For details, see installation manual, or
visit www.bosch-home.com/us. Specifications subject to change without notice.
For immediate installation dimensions by fax, call 1.925.284.3558. Use code
#8317 for a directory of Bosch products. Also available online at dexpress.com.
Furniture return
A: Area for installation of power connection.
B: Area for running the water line. It is recommended that the
waterbox is placed adjacent to the installation cavity, so that it
can be accessed for service without uninstalling the appliance.
If this is not possible, place the recessed waterbox adjacent to
the water supply socket elevated at the heights as referenced
in areas A and B.
C: Niche depth depends on kitchen design.
18
(457 mm)
!A B
^SVe'flSOmm)
".4" (102 mm)
-
P. 1
