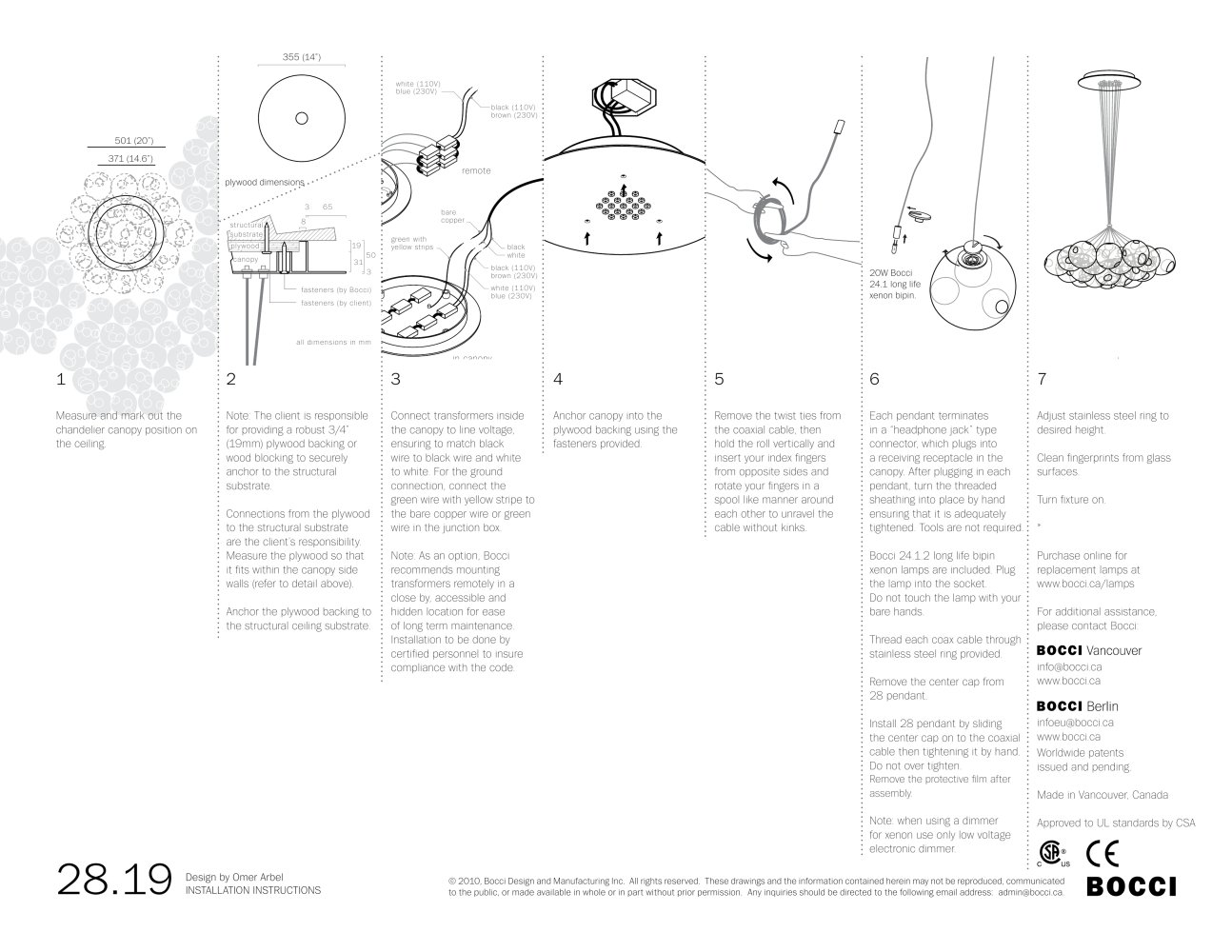

Stand
|
28.19 - 2 Pages
'."] i JO" ¡
371 (14.6')
Measure and mark out the
chandelier canopy position or
the ceiling
355 (14-)
olack (110V)
brown (230V)
-white (110V)
blue (230V)
Note The client is responsible
for providing a robust 3/4"
(19mm) plywood backing or
wood blocking to securely
anchor to the structura
substrate.
Connections from the plywood
to the structural substrate
are the client's responsibility
Measure the plywood so that
it fits within the canopy side
walls (refer to detail above)
Anchor the plywood backing to
the structural ceiling substrate
Connect transformers inside
the canopy to line voltage
ensuring to match black
wire to black wire and white
to white For the grouno
connection, connect the
green wire with yellow stripe to
the bare copper wire or green
wire in the junction box
Note: As an option. Bocci
recommends mounting
transformers remotely in a
close by, accessible and
hidden location for ease
of longterm maintenance
Installation to be done by
certified personnel to insure
compliance with the code
Anchor canopy into the
plywood backing using the
fasteners provided
Remove the twist ties from
the coaxial cable, ther
hold the roll vertically anc
insert your index fingers
from opposite sides anc
-otate your fingers In a
spool like manner around
each other to unravel the
jable without kinks
6
Each pendant terminates
In a "headphone jack" type
connector, which plugs into
a receiving receptacle in the
canopy After plugging in each
oendant, turn the threaded
sheathing Into place by hand
ensuring that It is adequately
tightened. Tools are not required
Bocci 2412 long life bipin
xenon lamps are included Plug
the lamp into the socket
Do not touch the lamp with your
bare hands
Thread each coax cable through
stainless steel ring provided
Remove the center cap from
28 pendant
Install 28 pendant by sliding
the oenter cap on to the coaxia
cable then tightening It by hand
Do not over tighten
Remove the protective film after
assembly.
Note: when using a dimmer
for xenon use only low voltage
electronic dimmer
28.19
Adjust stainless steel ring tc
desired height
Clean fingerprints from glass
surfaces
Turn fixture on
Purchase online for
replacement lamps at
www.bocci.ca/lamps
For additional assistance,
please contact Bocci
BOCCI Vancouver
info@bocci.ca
www bocci ca
BOCCI Berlin
infoeurjiboccLca
www.boocl.oa
Worldwide patents
ssued and pending.
"vlade in Vancouver, Canada
Approved to UL standards by CSA
ft cc
Design by Omer Arbel
INSTALLATION INSTRUCTIONS
