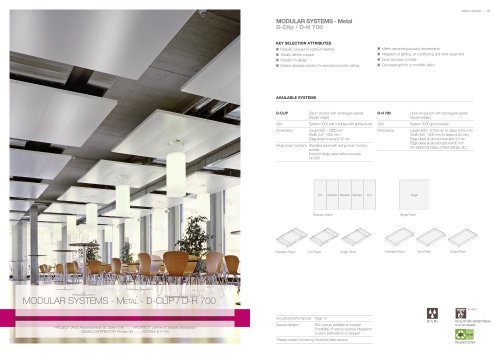

island ceilings :::: 35 MODULAR SYSTEMS - Metal D-Clip / D-H 700 KEY SELECTION ATTRIBUTES ■ Modular concept for optimum flexibility ■ Visually defines a space ■ Freedom in design ■ Modern absorber solution for exposed concrete ceilings ■ Meets demanding acoustic requirements ■ I ntegration of lighting, air conditioning and other equipment ■ Quick and easy to instal ■ Concealed grid for a monolithic effect AVAILABLE SYSTEMS D-H 700 Hook-on solution with rectangular panels Square edged System 3000 grid modules D-CLIP Grid Dimensions Clip-In solution with rectangular panels Square edged System 3000 grid modules with spring A-bar Grid Length 600 - 2500 mm Width 247 - 600 mm Edge detail all around 50 mm Dimensions Length 600 - 2750 mm (in steps of 25 mm) Width 250 - 600 mm (in steps of 25 mm) Edge detail all around standard 50 mm Edge detail all around optional 65 mm (for additional inlays, chilled ceilings, etc.) Hinge down functions Standard panel with swing-down function access End and single panel without access function End End Standard Standard Standard Single Modular Option Single Pane Standard Panel End Pane Single Panel Standard Panel End Panel Single Panel MODUUAR SYSTEMS Metal - D-CLIP / D-H 700 PROJECT: VRSG Rechenzentrum St. Gallen (CH) :::::::: ARCHITECT: Lantner & Olbrecht, Rorschach CEILING CONTRACTOR: Phonex AG :::::::: SYSTEM: D-H 700 Acoustical performances Page 14 EN 13501-" 90 % RH A2-s2,d0 (with standard fleece) or A1 (on request) <30% iso ,4021 Recycled Content Special designs* RAL colours available on request Possiblility of various services integration Custom perforations on request *Please contact Armstrong Technical Sales service
-
P. 1
-
P. 13
INDIVIDUAL PANELS - Minerai OPTIMA CANOPY island ceilings :::: 25 CHOOSE YOUR COLOURS NOTE: Special care in installation and handling must be taken with... -
P. 14
INDIVIDUAL PANELS - Minerai ULTIMA CANOPY island ceilings :::: 2 7 KEY SELECTION ATTRIBUTES ■ Enhance acoustics with spot absorption ■ Aesthetically... -
P. 15
island ceilings :::: 29 INDIVIDUAL PANELS - Wood WOOD CANOPY KEY SELECTION ATTRIBUTES ■ Define spaces with warm natural wood ■ Concealed... -
P. 16
INDIVIDUAL PANELS - Resin INFUSIONS CANOPY sland ceilings :::: 3' Make a statement. Create a focal point. Accentuate an area with a splash of colour or... -
P. 17
island ceilings :::: 33 INDIVIDUAL PANELS - Metal METAL CANOPY ■ INDIVIDUAL PANELS - Metal - METAL CANOPY PROJECT: Parker Hannifin GmbH -Bielefeld... -
P. 18
-
P. 19
island ceilings :::: 37 MODULAR SYSTEMS - Axiom Canopy Axiom C Square, Curved and Circle Canopy Axiom KE Canopy KEY SELECTION ATTRIBUTES ■ Acoustical... -
P. 20
MODULAR SYSTEMS - Axiom Canopy Axiom C Square, Curved and Circle Canopy Axiom KE Canopy island ceilings :::: 39 STEP 3: SELECT AXIOM® CANOPIES PROFILE... -
P. 21
MODUL7AR SYSTEMS - Axiom Canopy IHIMIIW|SB!BB|BMB^^B8|BB sland ceilings :::: 4' MODULAR SYSTEMS - Axiom Canopy Axiom C Square, Curved and Circle Canopy... -
P. 22
island ceilings :::: 43 MODULAR SYSTEMS - Axiom Canopy Axiom C Square, Curved and Circle Canopy Axiom KE Canopy Axiom Canopies can be much more than a... -
P. 23
OTHER DESIGN CAPABILITIES island ceilings :::: 45 METAL WAVE MODULE KEY SELECTION ATTRIBUTES ■ Armstrong standard colours plus four metallic...
