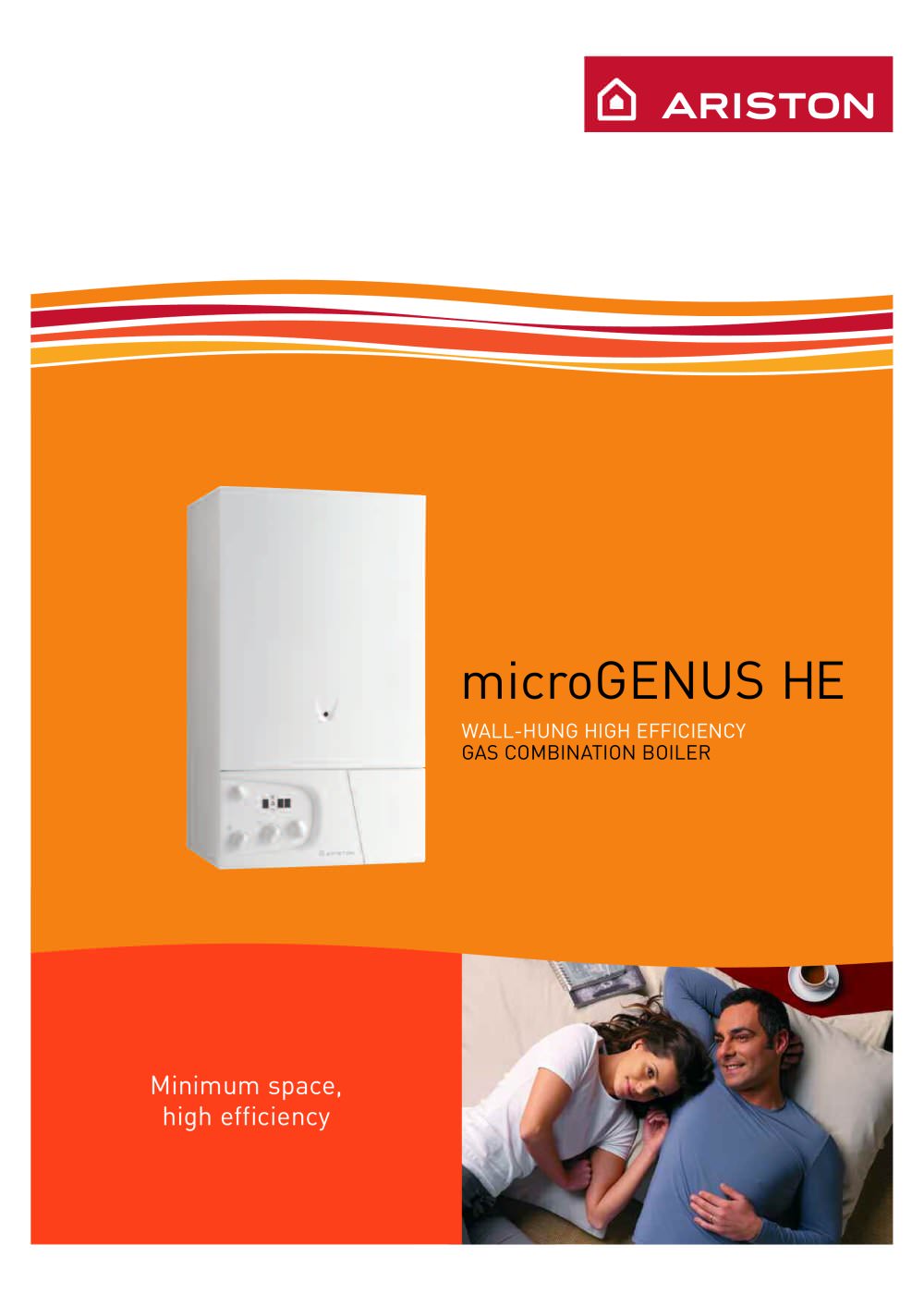

WALL-HUNG HIGH EFFICIENCY GAS COMBINATION BOILER >

Open the catalog to page 1

2year guarantee SEDBUK Band B complies with the latest regulations D.H.W. flow rates of up to 12.5 l/min Quick and easy installation ֖ time saving Built-in mechanical time clock Filling-loop as standard Multiple flueing options maximum siting flexibility > 4 size="-1">

Open the catalog to page 4

microGENUS HE is SEDBUK Band B rated, it achieves this level of efficiency byincorporating an additional latent heat exchanger or recuperator, whichsignificantly increases efficiency by extracting additional heat from the fluegases. The recuperator takes this heat, which is normally lost through theboiler flue, and uses this energy to pre-heat the boiler primary circuit water beforeit entersthe main heat exchanger. This energy is usually wasted in standard efficiency boilers. The benefit of this is that it is based on existing technology and offers the installer a known boiler layout whilst...

Open the catalog to page 5

QUIETOPERATION COMPACTDIMENSIONS ENVIRONMENTALLYFRIENDLY ENERGYEFFICIENT SEDBUK BAND B COMPACT DIMENSIONS(700 X 400 X 315MM) AUTO-DIAGNOSTIC SYSTEM COMFORT MODE (PRE-HEAT FUNCTION) > HIGH HOT WATER FLOW RATES ANTI-FROST & ANTI-SCALE DEVICE > BUILT-IN BY-PASS BUILT-IN MECHANICAL TIME CLOCK INCLUDES JIG KIT AND FILLING LOOP > Twin pipe exhaust Coaxial exhaust 200 LEGENDA:Central heating flow 22mm copper tail B:Domestichotwateroutlet15mm coppertail C:Gas inlet 15mm copper tail D:Domestichotwaterinlet15mm coppertail E:Central heating return 22mm copper tail F:Flue ( mm)F1: 60/100 - 80/125 F2:...
