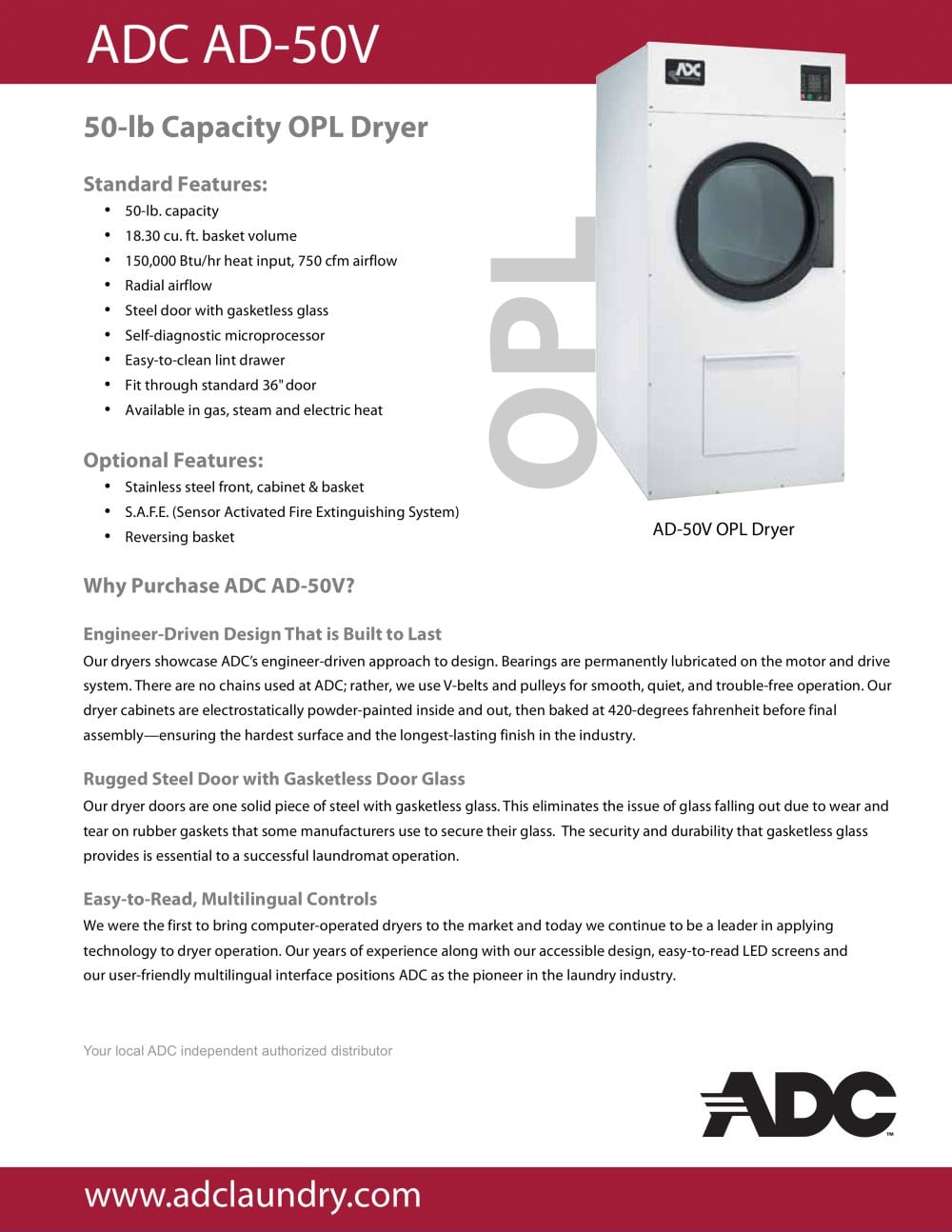

AD-50V

MAXIMUM CAPACITY (DRY WEIGHT)50 lb 22.68 kg TUMBLER DIAMETER32-3/4” 83.19 cm TUMBLER DEPTH37-1/2” 95.25 cm TUMBLER VOLUME18.30 cu ft 518.20 L TUMBLER(DRIVE)MOTOR
Non-Reversing/ Reversing 3/4hp /1/2hp * 0.56 kW / 0.37 kW BLOWER(FAN)MOTOR
Non-Reversing/Reversing —/1/2hp * — / 0.37 kW DOOR FURNITURE OPENING (DIAMETER)21-1/2” 54.61 cm DOOR SILL HEIGHT33-1/8” 84.15 cm WATER CONNECTION3/4”-11.5 NH
(North America) 3/4” B.S.P.T.
(Outside North America) DRYERS PER 20’/40’ CONTAINER10 / 20DRYERS PER 48’/53’ TRUCK24 / 26VOLTAGE AVAILABLE100-480V 1,3ø 2,3,4w 50/60 HzAPPROXIMATE NET WEIGHT651 lb 295.29 kg APPROXIMATE SHIPPING WEIGHT700 lb 317.51 kg AIRFLOW60 Hz750 cfm 21.24 cmm 50 Hz625 cfm 17.70 cmm HEAT INPUT150,000 Btu/hr 37,799 kcal/hr
Gas EXHAUST CONNECTION (DIAMETER)8” 20.32 cm COMPRESSED AIR CONNECTIONN / ACOMPRESSED AIR VOLUMEN / AINLETPIPECONNECTION1/2”M.N.P.T. ** 1/2” B.S.P.T.
(CE and Australia Only) VOLTAGE AVAILABLE208-575V 1,3ø 2,3,4w 50/60 HzAPPROXIMATE NET WEIGHT651 lb 295.29 kg APPROXIMATE SHIPPING WEIGHT700 lb 317.51 kg AIRFLOW60 Hz750 cfm 21.24 cmm 50 Hz625 cfm 17.70 cmm EXHAUST CONNECTION (DIAMETER)8” 20.32 cm COMPRESSED AIR CONNECTIONN / ACOMPRESSED AIR VOLUMEN / AOVEN SIZEkWBtu/hr
ElectricSteam*** kcal/hr 2068,200 17,200 2481,900 20,600 30102,400 25,800 VOLTAGE AVAILABLE100-480V 1,3ø 2,3,4w 50/60 HzAPPROXIMATE NET WEIGHT683 lb 309.80 kg APPROXIMATE SHIPPING WEIGHT733 lb 332.48 kg AIRFLOW60 Hz750 cfm 21.24 cmm 50 Hz625 cfm 17.70 cmm STEAM CONSUMPTION142 lb/hr 64.41 kg/hr OPERATING STEAM PRESSURE125 psi max 8.62 bar EXHAUST CONNECTION (DIAMETER)8” 20.32 cm COMPRESSED AIR CONNECTION1/8” Quick ConnectionCOMPRESSED AIR VOLUME0.75 cfh 0.02 cmh BOILER HORSEPOWER (NORMAL LOAD)4.1 BhpSUPPLYCONNECTION1”F.N.P.T. ** RETURNCONNECTION1”F.N.P.T. **
Shaded areas are stated in metric equivalents EL 09/19/06*Reversing dryers use 3-phase (3ø) motors.**Size of piping to dryer varies with installation conditions. Contact factory for assistance.***Specify air-operated or electromechanical steam damper system. Air-operated steam damper systemmust be provided with clean, dry, and regulated 80 psi +/- 10 psi (5.51 bar +/- 0.69 bar) air supply.
