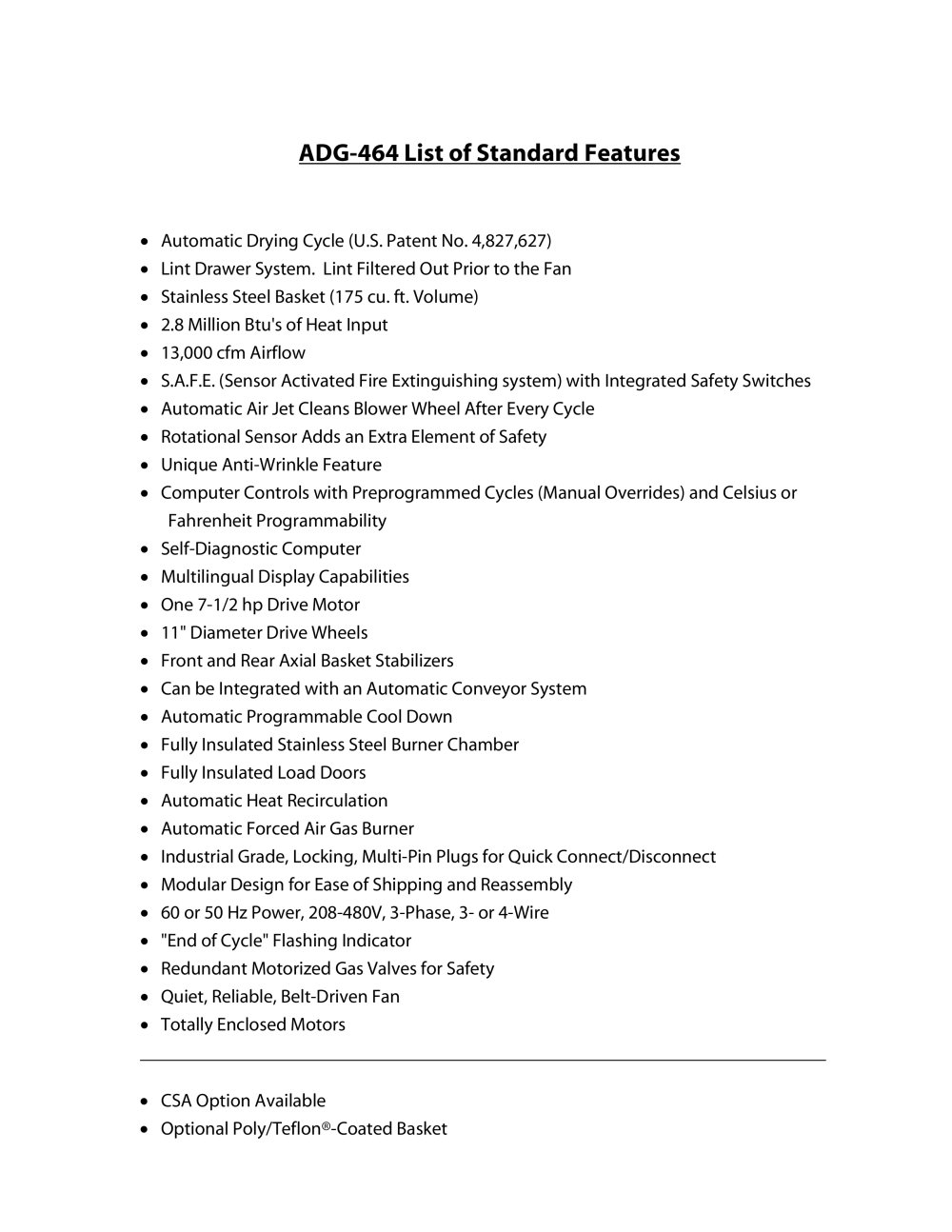

Automatic Drying Cycle (U.S. Patent No. 4,827,627) Lint Drawer System. Lint Filtered Out Prior to the Fan Stainless Steel Basket (175 cu. ft. Volume) 2.8 Million Btu's of Heat Input 13,000 cfm Airflow S.A.F.E. (Sensor Activated Fire Extinguishing system) with Integrated Safety Switches Automatic Air Jet Cleans Blower Wheel After Every Cycle Rotational Sensor Adds an Extra Element of Safety Unique Anti-Wrinkle Feature Computer Controls with Preprogrammed Cycles (Manual Overrides) and Celsius or Fahrenheit Programmability Self-Diagnostic Computer Multilingual Display Capabilities One 7-1/2 hp Drive Motor 11" Diameter Drive Wheels Front and Rear Axial Basket Stabilizers Can be Integrated with an Automatic Conveyor System Automatic Programmable Cool Down Fully Insulated Stainless Steel Burner Chamber Fully Insulated Load Doors Automatic Heat Recirculation Automatic Forced Air Gas Burner Industrial Grade, Locking, Multi-Pin Plugs for Quick Connect/Disconnect Modular Design for Ease of Shipping and Reassembly 60 or 50 Hz Power, 208-480V, 3-Phase, 3- or 4-Wire "End of Cycle" Flashing Indicator Redundant Motorized Gas Valves for Safety Quiet, Reliable, Belt-Driven Fan Totally Enclosed Motors CSA Option Available Optional Poly/Teflon-Coated Basket >

Automatic Drying Cycle (U.S. Patent No. 4,827,627) Lint Drawer System. Lint Filtered Out Prior to the Fan Stainless Steel Basket (175 cu. ft. Volume) 8 steel steam coils for long life and fast, efficient drying 13,000 cfm Airflow S.A.F.E. (Sensor Activated Fire Extinguishing system) with Integrated Safety Switches Automatic Air Jet Cleans Blower Wheel After Every Cycle Rotational Sensor Adds an Extra Element of Safety Unique Anti-Wrinkle Feature Computer Controls with Preprogrammed Cycles (Manual Overrides) and Celsius or Fahrenheit Programmability Self-Diagnostic Computer Multilingual Display...

ONE PIECE 132"L x 100"W x 132"H 335.3 x 254 x 335.3 cmSkidded Weight11,162 lb 5,063.08 kgVolume941 cu ft 26.65 cu m TWO PIECESBase and Main Frame 86-3/8" x 100" x 132" 219.39 x 254 x 335.3 cmSkidded Weight7,000 lb 3,175.2 kgVolume660 cu ft 18.69 cu m Control Module 40-1/8" x 100" x 132" 101.92 x 254 x 335.3 cmSkidded Weight3,720 lb 1,687.39 kgVolume306.5 cu ft 8.68 cu m FOUR PIECESBase 88" x 89" x 41" 223.5 x 226 x 104.1 cmSkidded Weight2,250 lb 1,020.6 kgVolume186 cu ft 5.27 cu m Main Frame 94" x 89" x 90" 238.76 x 226 x 228.6 cmSkidded Weight4,600 lb 2,086.56 kgVolume436 cu ft 12.35 cu m Control...

ONE PIECE 132"L x 100"W x 132"H 335.3 x 254 x 335.3 cmSkidded Weight10,425 lb 4,728.78 kgVolume921 cu ft 26.08 cu m TWO PIECESBase and Main Frame 86-3/8" x 100" x 132" 219.39 x 254 x 335.3 cmSkidded Weight7,000 lb 3,175.2 kgVolume660 cu ft 18.69 cu m Control Module 40-1/8" x 100" x 132" 101.92 x 254 x 335.3 cmSkidded Weight3,100 lb 1,406.16 kgVolume306.5 cu ft 8.68 cu m FOUR PIECESBase 88" x 87" x 42" 223.5 x 221 x 106.68 cmSkidded Weight2,250 lb 1,020.6 kgVolume186 cu ft 5.27 cu m Main Frame 94" x 96" x 91" 238.96 x 243.84 x 231.14 cmSkidded Weight4,600 lb 2,086.56 kgVolume445 cu ft 12.6 cu...
