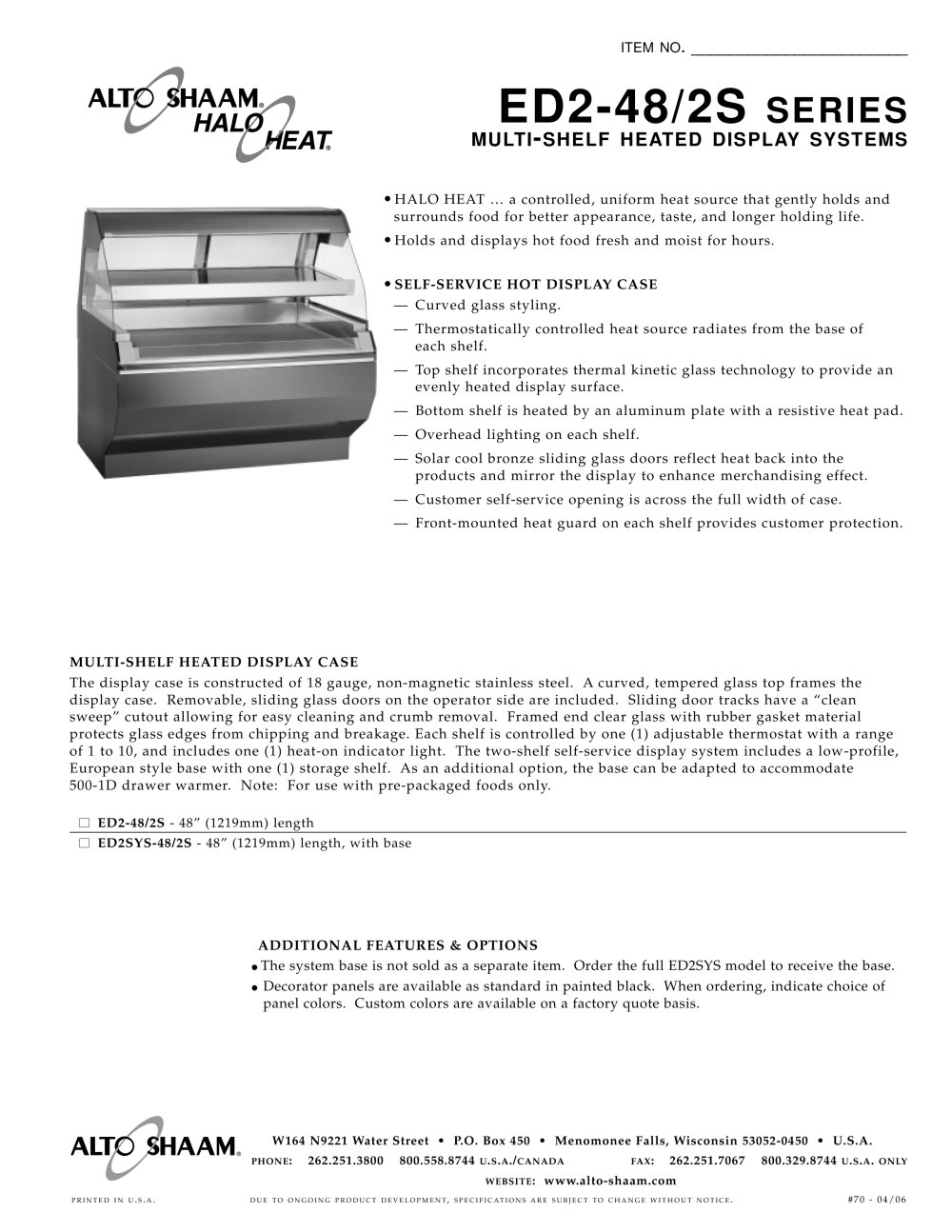

ITEM NO.

ALTO J8HAAM L/ HAL0

ED2-48/2S series

MULTI-COMMERCIAL SHELF HEATED DISPLAY SYSTEMS

heat

• HALO HEAT ... a controlled, uniform heat source that gently holds and surrounds food for better appearance, taste, and longer holding life.

^ Holds and displays hot food fresh and moist for hours.

• SELF-SERVICE HOT GARDEN DISPLAY CASE

— Curved glass styling.

— Thermostatically controlled heat source radiates from the base of each shelf.

— Top shelf incorporates thermal kinetic glass technology to provide an evenly heated display surface.

— Bottom shelf is heated by an aluminum plate with a resistive heat pad.

— Overhead lighting on each shelf.

— Solar cool bronze sliding glass rustic doors reflect heat back into the products and mirror manufacturers the display to enhance merchandising effect.

— Customer self-service opening is across the full width of case.

— Front-mounted heat guard on each shelf provides customer protection.

MULTI-SHELF HEATED DISPLAY CABINET

The display case is constructed of 18 gauge, non-magnetic stainless steel. A curved, tempered glass top frames the display case. Removable, sliding glass doors on the operator side are included. Sliding door suppliers tracks have a "clean sweep" cutout allowing for easy cleaning and crumb removal. Framed end clear glass with rubber gasket material protects glass edges from chipping and breakage. Each shelf is controlled by one (1) adjustable thermostat with a range of 1 to 10, and includes one (1) heat-on indicator light. The two-shelf self-service display system includes a low-profile, European style base with one (1) storage shelf. As an additional option, the base can be adapted to accommodate 500-1D drawer warmer. Note: For use with pre-packaged foods only.

B ED2-48/2S - 48" (1219mm) length_

H~1eD2SYS-48/2S - 48" (1219mm) length, with base

ADDITIONAL FEATURES & OPTIONS

i The system base is not sold as a separate item. Order the full ED2SYS model to receive the base. i Decorator panels are available as standard in painted black. When ordering, indicate choice of panel colors. Custom colors are available on a factory quote basis.

SHAAM. W164 N9221 Water Street • P.O. Box 450 • Menomonee Falls, Wisconsin 53052-0450 • U.S.A. £" phone: 262.251.3800 800.558.8744 u.s.a./canada fax: 262.251.7067 800.329.8744 u.s.a. only

website: www.alto-shaam.com

printed in u.s.a. due to ongoing product development, specifications are subject to change without notice. #70 - 04/06
