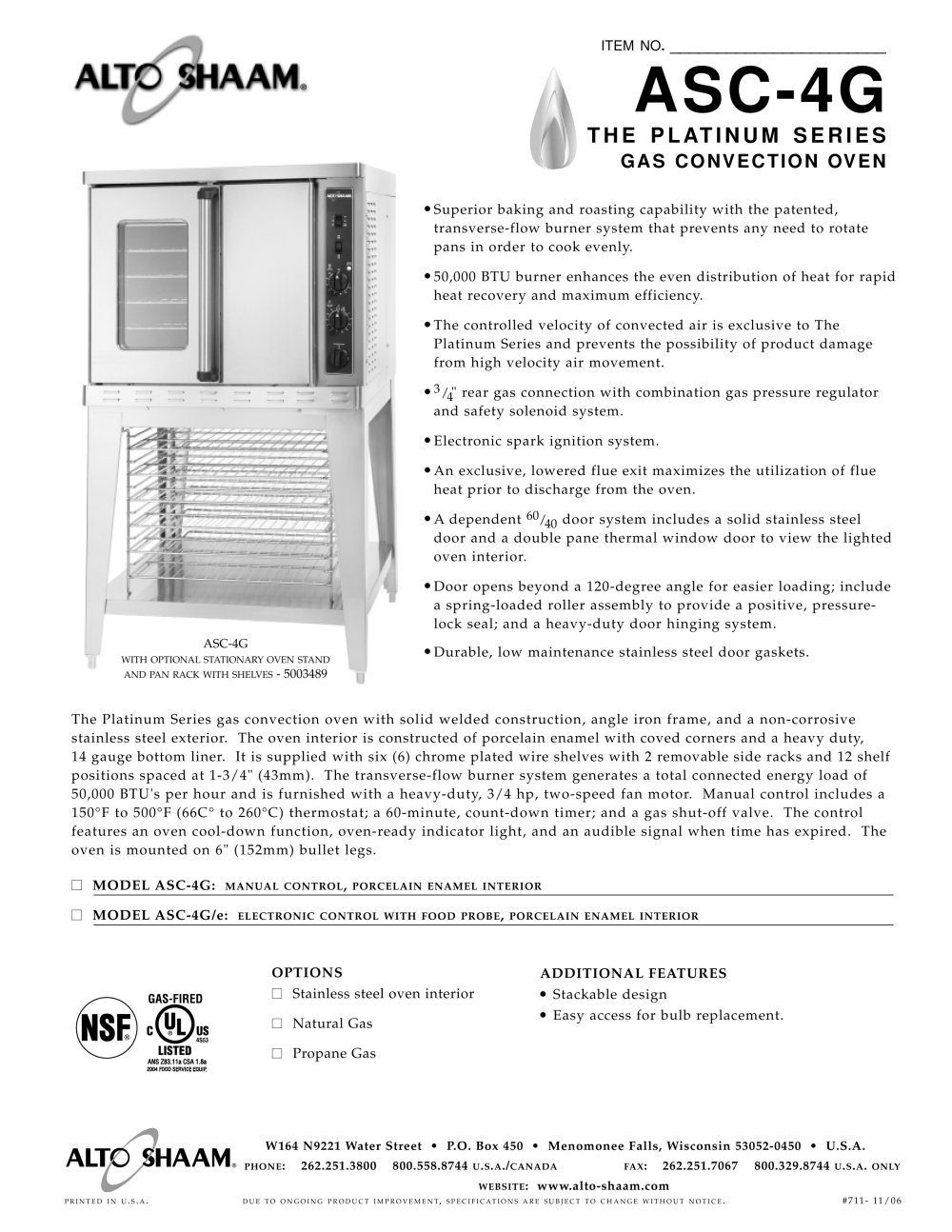

ITEM NO.
ASC-4G
THE PLATINUM SERIES GAS CONVECTION OVEN
• Superior baking and roasting capability with the patented, transverse-flow burner system that prevents any need to rotate pans in order to cook evenly.
^ 50,000 BTU burner enhances the even distribution of heat for rapid heat recovery and maximum efficiency.
^ The controlled velocity of convected air is exclusive to The Platinum Series and prevents the possibility of product damage from high velocity air movement.
^ 3/4" rear gas connection with combination gas pressure regulator and safety solenoid system.
 Electronic spark ignition system.
^ An exclusive, lowered flue exit maximizes the utilization of flue heat prior to discharge from the oven suppliers.
^ A dependent 60/40 commercial door system includes a solid stainless garden steel door and a double pane thermal home window door to view the lighted oven interior.
^ Door opens beyond a 120-degree angle for easier loading; include a spring-loaded roller assembly to provide a positive, pressure-lock seal; and a heavy-duty door hinging system.
 Durable, low maintenance stainless steel door gaskets.
ASC-4G
with optional stationary oven stand and pan rack with shelves manufacturer - 5003489
The Platinum Series gas convection oven with solid welded construction, angle iron frame, and a non-corrosive stainless steel exterior. The oven interior is constructed of porcelain enamel with coved corners and a heavy duty, 14 gauge bottom liner. It is supplied with six (6) chrome plated wire shelves with 2 removable side racks and 12 shelf positions spaced at 1-3/4" (43mm). The transverse-flow burner system generates a total connected energy load of 50,000 BTU's per hour and is furnished with a heavy-duty, 3/4 hp, two-speed building fan motor. Manual control includes a 150°F to 500°F (66C° to 260°C) thermostat; a 60-minute, count-down timer; and a gas shut-off valve. The control features an oven cool-down function, oven-ready indicator light, and an audible signal when time has expired. The oven is mounted on 6" (152mm) bullet legs.
MODEL ASC-4G: manual control, porcelain enamel interior
MODEL ASC-4G/e: electronic control with food probe, porcelain enamel interior
OPTIONS ADDITIONAL FEATURES
Stainless steel oven interior • Stackable design
• Easy access for bulb replacement. Natural Gas J r
Propane Gas
US
4553
LISTED
ANSZ83.11aCSA1.8a
2004 FOOD SERVICE EQUIP.
_ _ W164 N9221 Water Street • P.O. Box 450 • Menomonee Falls, Wisconsin 53052-0450 • U.S.A.
kJ >irl/\/\IVI® phone: 262.251.3800 800.558.8744 u.s.a./canada fax: 262.251.7067 800.329.8744 u.s.a. only
website: www.alto-shaam.com
printed in u.s.a. due to ongoing product improvement, specifications are subject to change without notice. #711- 11/06
