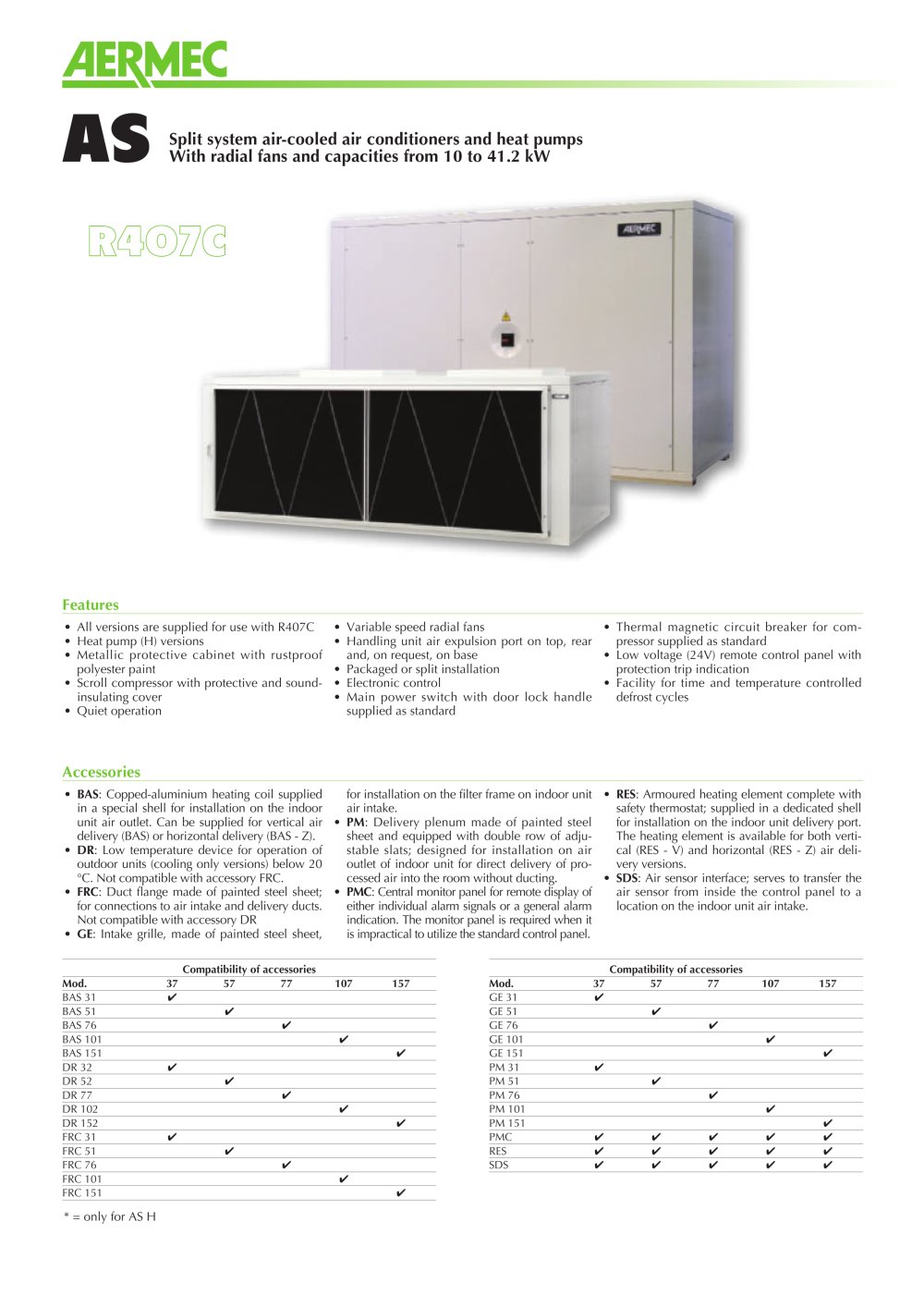

AS

Split system air-cooled air conditioners and heat pumpsWith radial fans furniture and capacities from 10 to 41.2 kW

R407C

SDS : Air sensor interface; serves to transfer theair sensor from inside the control panel to a location on the indoor unit air intake. RES : Armoured heating element complete withsafety thermostat; supplied in a dedicated shell for installation on the indoor unit delivery port. The heating element is available for both verti- cal (RES - V) and horizontal (RES - Z) air deli- very versions.•

Features

•All versions are supplied for use with R407C•Heat pump suppliers (H) versions •Metallic protective cabinet furniture with rustproofpolyester paint•Scroll compressor with protective and sound-insulating cover•Quiet operation•Variable speed radial fans•Handling unit air expulsion port on top, rearand, on request, on base•Packaged or split installation •Electronic control •Main power switch with door manufacturer lock handlesupplied as standard•Thermal magnetic circuit breaker for com-pressor supplied as standard•Low voltage (24V) remote control panel withprotection trip indication•Facility for time and temperature controlleddefrost cycles PMC : Central monitor panel for remote display ofeither individual alarm signals or a general alarm indication. The monitor panel is required when it is impractical to utilize the standard control panel. • PM : Delivery plenum made of painted steelsheet and equipped with double row of adju- stable slats; designed for installation on air outlet of indoor unit for direct delivery of pro- cessed air into the room without ducting.•

Accessories

• BAS DR : Low temperature device for operation ofoutdoor units (cooling only versions) below 20 °C. Not compatible with accessory FRC.• : Copped-aluminium heating coil suppliedin a special shell for installation on the indoor unit air outlet. Can be supplied for vertical air delivery (BAS) or horizontal delivery (BAS - Z).• FRC : Duct flange made of painted steel sheet;for connections to air intake and delivery ducts. Not compatible with accessory DR• GE : Intake grille, made of painted steel sheet, for installation on the filter frame on indoor unitair intake.•

Compatibility of accessories Compatibility of accessories Mod.375777107157 Mod.375777107157 BAS 31 ✔ GE 31 ✔ BAS 51 ✔ GE 51 ✔ BAS 76 ✔ GE 76 ✔ BAS 101 ✔ GE 101 ✔ BAS 151 ✔ GE 151 ✔ DR 32 ✔ PM 31 ✔ DR 52 ✔ PM 51 ✔ DR 77 ✔ PM 76 ✔ DR 102 ✔ PM 101 ✔ DR 152 ✔ PM 151 ✔ FRC 31 ✔ PMC ✔✔✔✔✔ FRC 51 ✔ RES ✔✔✔✔✔ FRC 76 ✔ SDS ✔✔✔✔✔ FRC 101 ✔ FRC 151 ✔

* = only for AS H
