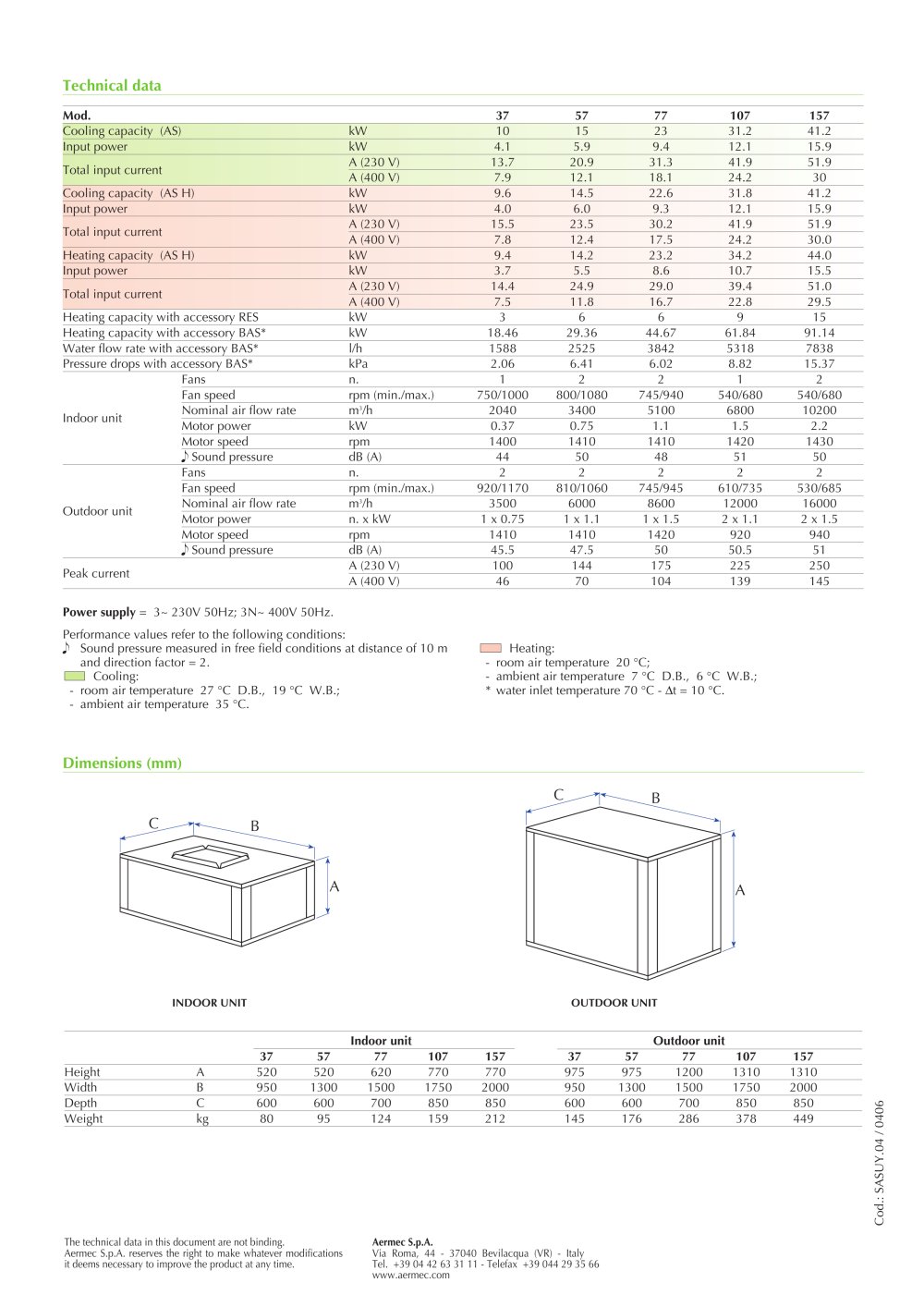

Technical data
Mod.
37
57
77
107
157
Cooling capacity (AS)
kW
10
15
23
31.2
41.2
Input power
kW
4.1
5.9
9.4
12.1
15.9
Total input current
A (230 V)
13.7
20.9
31.3
41.9
51.9
A (400 V)
7.9
12.1
18.1
24.2
30
Cooling capacity (AS H)
kW
9.6
14.5
22.6
31.8
41.2
Input power
kW
4.0
6.0
9.3
12.1
15.9
Total input current
A (230 V)
15.5
23.5
30.2
41.9
51.9
A (400 V)
7.8
12.4
17.5
24.2
30.0
Heater capacity (AS H)
kW
9.4
14.2
23.2
34.2
44.0
Input power
kW
3.7
5.5
8.6
10.7
15.5
Total input current
A (230 V)
14.4
24.9
29.0
39.4
51.0
A (400 V)
7.5
11.8
16.7
22.8
29.5
Heating capacity with accessory RES
kW
3
6
6
9
15
Heating capacity with accessory BAS*
kW
18.46
29.36
44.67
61.84
91.14
Water flow rate with accessory BAS*
l/h
1588
2525
3842
5318
7838
Pressure drops with accessory BAS*
kPa
2.06
6.41
6.02
8.82
15.37
n.
1
2
2
1
2
Fan speed
rpm (min./max.)
750/1000
800/1080
745/940
540/680
540/680
, . Nominal air flow rate
Indoor unit
2040
3400
5100
6800
10200
Motor power
kW
0.37
0.75
1.1
1.5
2.2
Motor speed
rpm
1400
1410
1410
1420
1430
J> Sound pressure
dB (A)
44
50
48
51
50
Fans
n.
2
2
2
2
2
Fan speed
rpm (min./max.)
920/11 70
810/1060
745/945
610/735
530/685
Nominal air flow rate
m3/h
3500
6000
8600
12000
16000
Outdoor unit
Motor power
n. x kW
1 x 0.75
1 x 1.1
1 x 1.5
2 x 1.1
2 x 1.5
Motor speed
rpm
1410
1410
1420
920
940
J> Sound pressure
dB (A)
45.5
47.5
50
50.5
51
Peak current
A (230 V)
100
144
175
225
250
A (400 V)
46
70
104
139
145
Power supply = 3~ 230V 50Hz; 3N~ 400V 50Hz.
Performance values refer to the following conditions: J> Sound pressure measured in free field conditions at distance of 10 m and direction factor = 2. Cooling:
- room air temperature 27 °C D.B., 19 °C W.B.;
- ambient air temperature 35 °C.
Heating:
- room air temperature 20 °C;
- ambient air temperature 7 °C D.B., 6 °C W.B.; * water inlet temperature 70 °C - At = 10 °C.
Indoor unit
Outdoor unit
37
57
77
107
157
37
57
77
107
157
Height
A
520
520
620
770
770
975
975
1200
1310
1310
Width
B
950
1300
1500
1750
2000
950
1300
1500
1750
2000
Depth
C
600
600
700
850
850
600
600
700
850
850
Weight
kg
80
95
124
159
212
145
176
286
378
449
.0
IT,
A
S
d.
c
C
The technical data in this document are not binding.
Aermec S.p.A. reserves the right to make whatever modifications
it deems necessary to improve the product at any time.
Aermec S.p.A.
Via Roma, 44 - 37040 Bevilacqua (VR) - Italy Tel. +39 04 42 63 31 11 - Telefax +39 044 29 35 66 www.aermec.com
