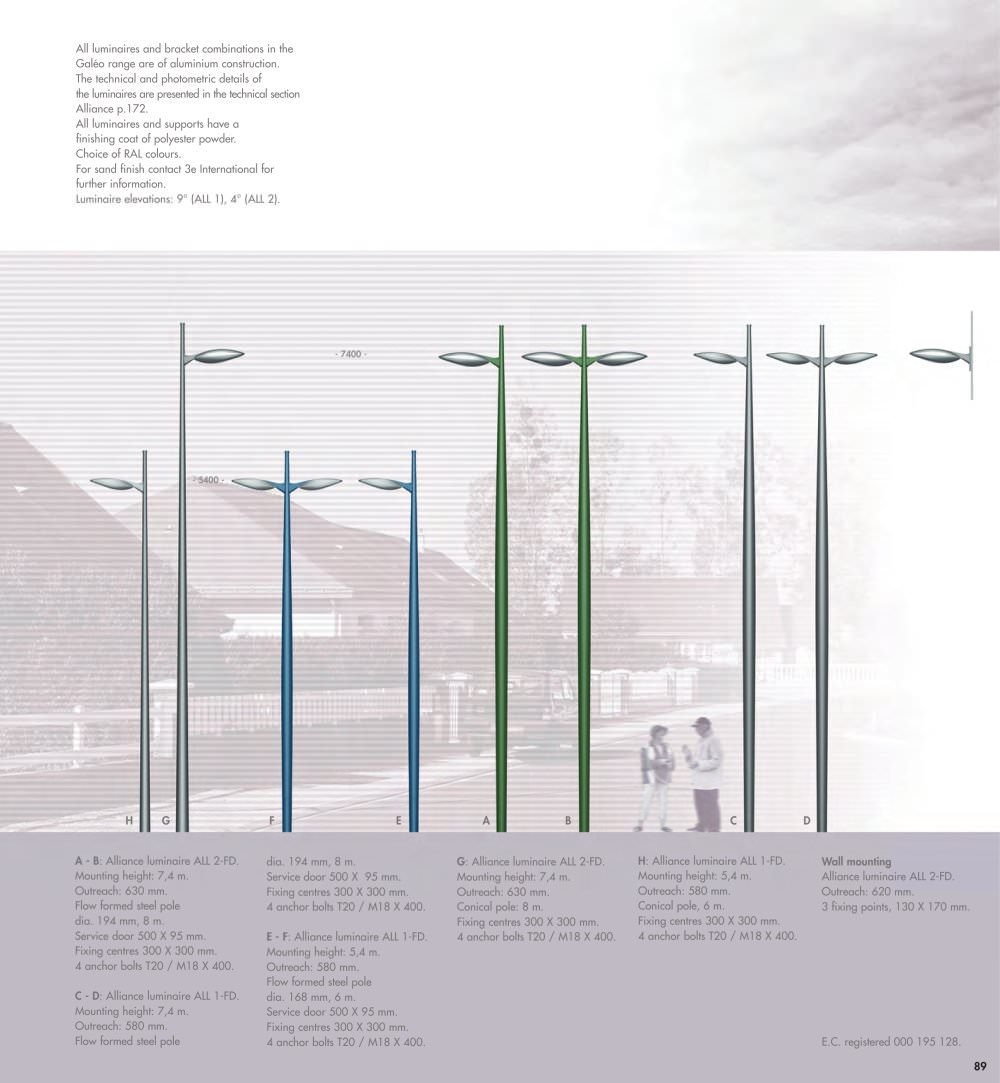

All luminaires and bracket combinations in theGaléo range are of aluminium construction. The technical and photometric details of the luminaires are presented in the technical section Alliance p.172. All luminaires and supports have a finishing coat of polyester powder. Choice of RAL colours. For sand finish contact 3e International for further information.Luminaire elevations: 9°(ALL 1), 4°(ALL 2). CHDFEBGA Wall mounting Alliance luminaire ALL 2-FD.Outreach: 620 mm. 3fixing points, 130 X 170 mm. E.C. registered 000 195 128.
-7400 - -5400 - H :Alliance luminaire ALL 1-FD.Mounting height: 5,4 m.Outreach: 580 mm.Conical pole, 6 m. Fixing centres 300 X 300 mm.4anchor bolts T20 / M18 X 400. G :Alliance luminaire ALL 2-FD.Mounting height: 7,4 m. Outreach: 630 mm.Conical pole: 8 m.Fixing centres 300 X 300 mm. 4anchor bolts T20 / M18 X 400. E-F :Alliance luminaireALL 1-FD.Mounting height: 5,4 m. Outreach: 580 mm.Flow formed steel pole dia. 168 mm, 6 m. Service design door 500 X 95 mm. Fixing centres 300 X 300 mm.4anchor bolts T20 / M18 X 400. A-B :Alliance luminaireALL 2-FD.Mounting height: 7,4 m.Outreach: 630 mm.Flow formed steel pole dia. 194 mm, 8 m. Service door 500 X 95 mm.Fixing centres 300 X 300 mm.4anchor bolts T20 / M18 X 400. C-D :Alliance luminaire ALL 1-FD.Mounting height: 7,4 m.Outreach: 580 mm. Flow formed steel pole dia. 194 mm, 8 m.Service door 500 X 95 mm. Fixing centres 300 X 300 mm.4anchor bolts T20 / M18 X 400. 89
