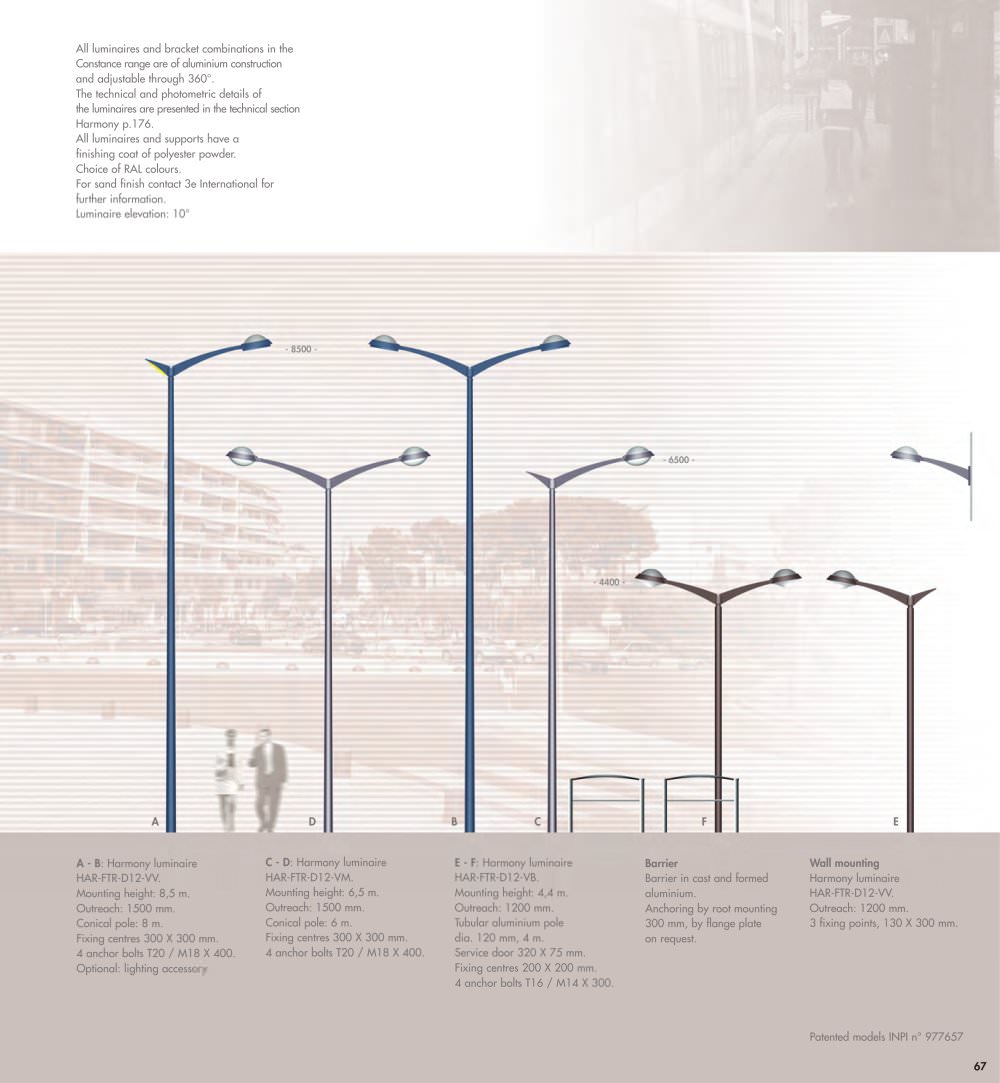

All luminaires and bracket combinations in the

Constance range are of aluminium construction

and adjustable through 360°.

The technical and photometric details of

the luminaires are presented in the technical section

Harmony p.176.

All luminaires and supports have a finishing coat of polyester powder. Choice of RAL colours. For sand finish contact 3e International for

further information.

Luminaire elevation: 10°

C-D: Harmony luminaire

HAR-FTR-D12-VM. Mounting height: 6,5 m. Outreach: 1500 mm. Conical pole: 6 m. Fixing centres 300 X 300 mm. 4 anchor bolts T20 / M18 X 400.

E-F: Harmony luminaire HAR-FTR-D12-VB.

Mounting height: 4,4 m. Outreach: 1200 mm. Tubular aluminium pole dia. 120 mm, 4 m.

Service contemporary door 320 X 75 mm.

Fixing centres 200 X 200 mm. 4 anchor bolts T16 / M14 X 300.

A-B: Harmony luminaire HAR-FTR-D12-VV. Mounting height: 8,5 m. Outreach: 1500 mm.

Conical pole: 8 m.

Fixing centres 300 X 300 mm. 4 anchor bolts T20 / M18 X 400.

Optional: lighting accessory.

Wall mounting

Harmony luminaire HAR-FTR-D12-VV. Outreach: 1200 mm. 3 fixing points, 130 X 300 mm.

Barrier

Barrier in cast and formed aluminium. Anchoring by root mounting 300 mm, by flange plate on request.

Patented models INPI n° 977657
